Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180

  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
  • Portable Durometer Leeb Meter Metal Hardness Tester Gauge MH180
Model No.︰MH180
Brand Name︰Graigar or OEM
Country of Origin︰China
Unit Price︰US $ 370 / pc
Minimum Order︰1 pc
Share on:

 Total 12 Related Items
Prev89101112

Product Description

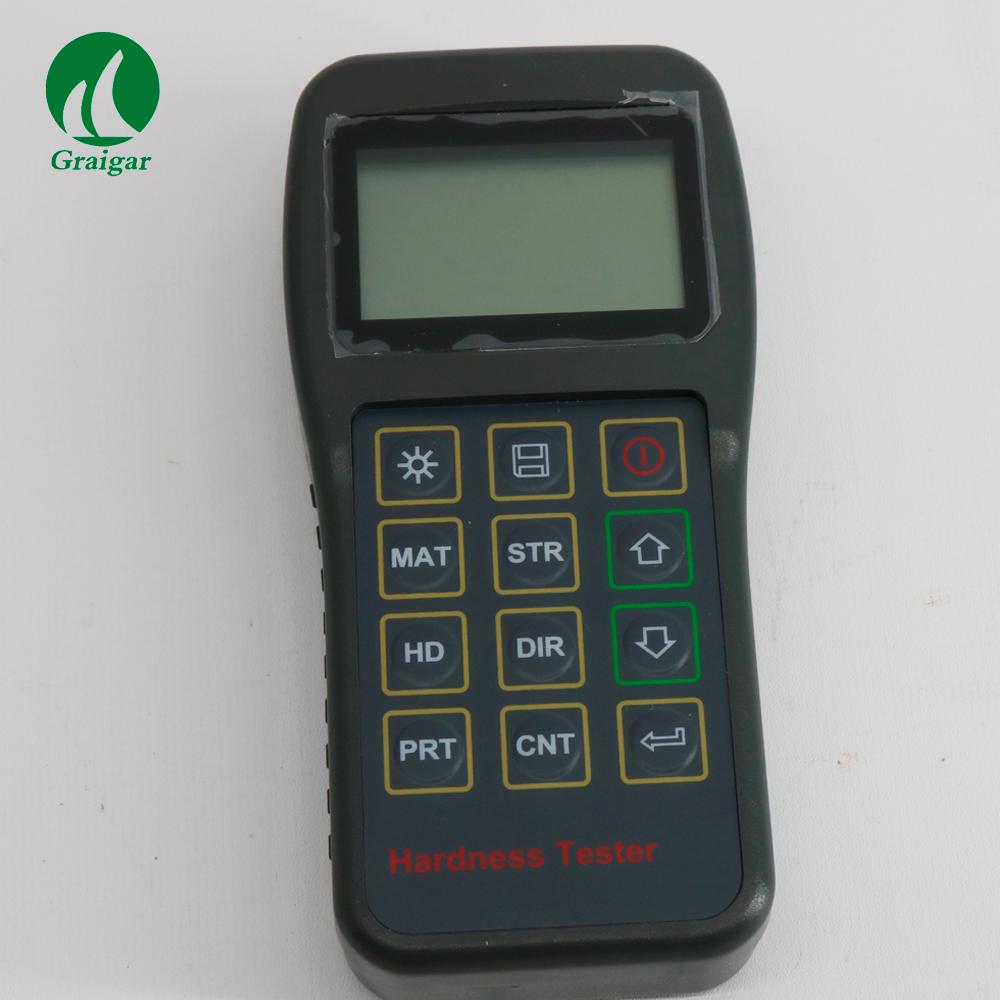

Portable Leeb Hardness Tester MH180





Portable Leeb Hardness Tester MH180,portable compact plastic case,test any angle,360 degree ,even upside down ,wide measuring range ,large screen,large memory.

PRODUCT INFORMATION



Model MH180 hardness tester is develop model of HL200,   its in durable metal case, hardness scales are convertable among



hardness units: HRB, HRC, HV, HB, HS, HL ;attachable thermal mini-printer, fast on-site print;software data and upperlower limits



setting and sound alarm; large storage capacity.




 SPECIFICATIONS



Measuring Range HLD(170-960)
Impact Derections up,down,horizontal,slanting up,slanting down
Measuring materials

steel and cast steel, cold work tool steel, stainless steel,grey cast iron, nodular cast iron,cast aluminium allorys,brass(coppper-zinc alloys), Bronze(copper-alluminium alloys/copper-tin alloys),wrought copper alloys





Hardness scales Leeb, Brinell,  A,B,C, Vicker, Shore
Display 128*64 digital matrix LCD
Memory 500 group(32 every group)
Work voltage 3V( 2 AA alkaline battaries)
Interface port RS232
Dimensions 132mm*76mm*33mm
Weight 345g
Continuous working period 100 hours (with backlight off)





ACCURACY AND REPEATABILITY OF DISPLAYED VALUE



No. Type of impact device Hardness value of Leeb standard hardness block Erro of displyed value Reapeatability of displayed value
1 D

760±30HLD             530±40HLD

±6 HLD ±10 HLD

6HLD             10HLD
2 DC 760±30HLD             530±40HLD ±6 HLDC ±10 HLDC 6HLD             10HLD
3 DL 878±30HLD             736±40HLD ±12 HLDL 12HLDL
4 D+15 766±30HLD             544±40HLD ±12 HLD+15 12HLD+15
5 G 590±40HLD             500±40HLD ±12 HLG            12HLG
6 E 725±30HLD             508±40HLD ±12 HLE            12HLE
7 C 822±30HLD             590±40HLD ±12 HLC 12HLC

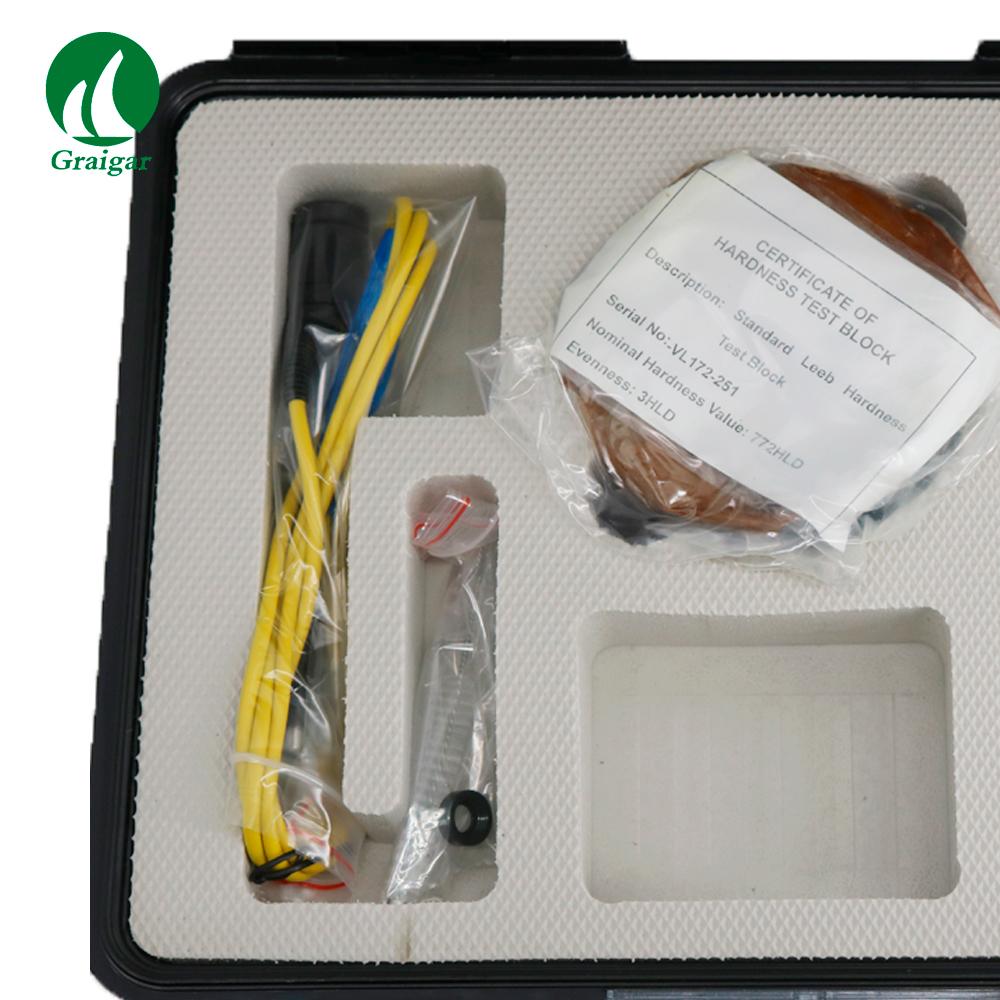

STANDARD DELIVERIES

No Items Quantity
1 Main unit 1

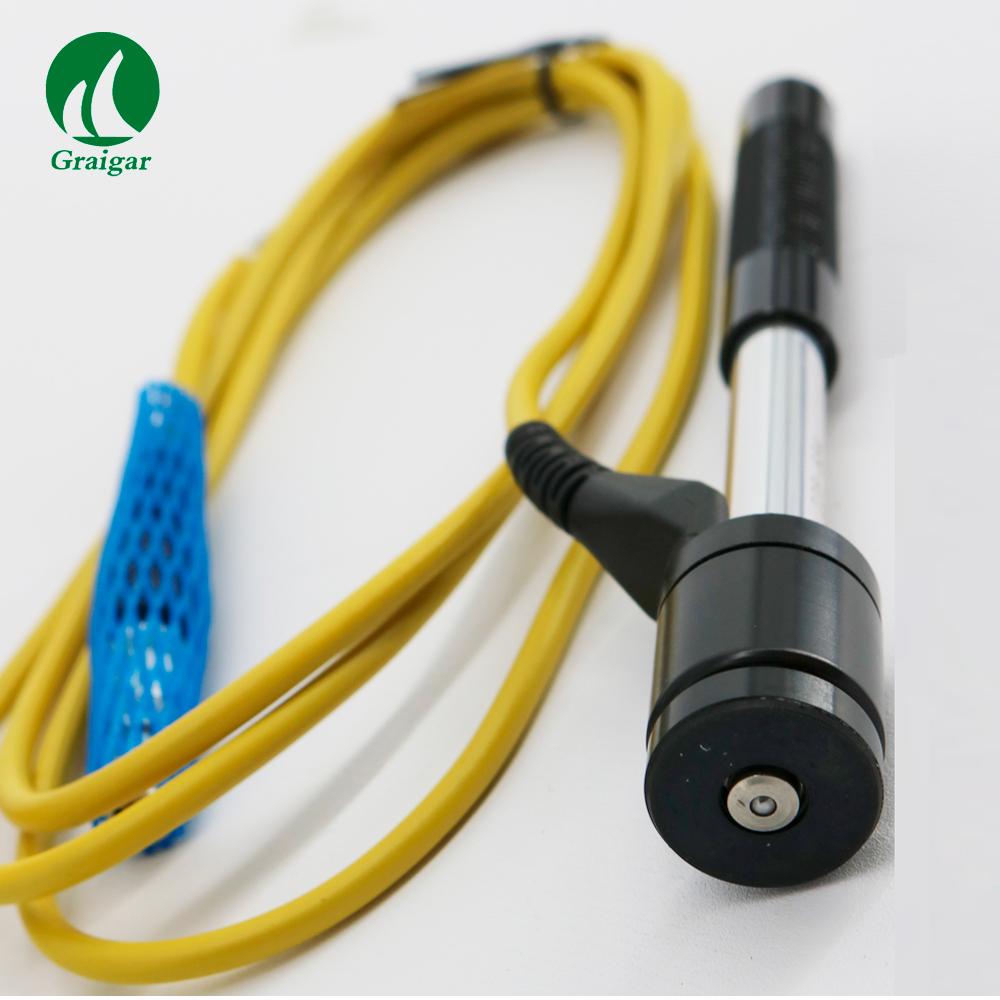

2 D type imapact device 1
3 Test block with HLD value 1
4 Cleaning brush 1
5 Instruction manual 1
6 Warranty card 1
7 Carrying case 1
8 Batteriry 1







OPTIONAL DELIVERIES


No Items Quantity
1 Other types of cleaning brush 1
2 Other types of impact devices 6
3 Tool for install imapct ball 1
4 Other types of support ring 1
5 Other types of imapct ball/body 1
6 Mini-printer 1



(Julie Zhou)

Price Terms︰FOB Shenzhen
Payment Terms︰TT/LC/Western Union/Paypal
Packing︰EXPORT CARTON
Lead Time︰2days
