Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen

  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
  • Portable durometer Leeb Meter Metal Hardness Tester LM500 with Color TFT Screen
Model No.︰ LM500
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 650 / pc
Minimum Order︰1 pc
Share on:

 Total 12 Related Items
Prev12345Next

Product Description

Free Shipping Leeb Hardness Tester LM500 with Color TFT Screen







Specifications of LM500 Leeb Hardness Tester

Display High-Definiation 2.4" IPS Display
Measuring Method Leeb Hardness Testing Method,Impact Type
Hardness Scale HL, HB, HRB, HRC, HV, HS, Strength (σb)
Measuring Range HLD(200-960) HRC(19.8-68.5)HRB(13.5-100) HB(30-651)HV(80-976) HS(26.4-99.5)σb(375-2639)
Impact Devices D type impact device (Standard); Interchangeable D/DC/DL type impact device (Optional)
Accuracy Measuring Error:±6HLD (HLD=800), Repeatability:±6HLD (HLD=800)
Measuring Direction 360 degree
Material Steel& Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass, Forged Steel, Alloy Tool Steel
Resolution 1HL,1HV,1HB,0.1HRB,0.1HRC,0.1HS

Language Multiple languages
Software Standard LmView software, for management, archiving and printing the measurement data
Power Two Alkaline battery
Data Memory 200 Files, 11000 Groups(each group includes 1-8 testing values and 1 average value)
Temperature -10℃~ +50℃
Size 153mm×76mm×37mm(H×W×D)
Weight 280g include batteries
Standard GB/T 17394-1998,ASTM A956

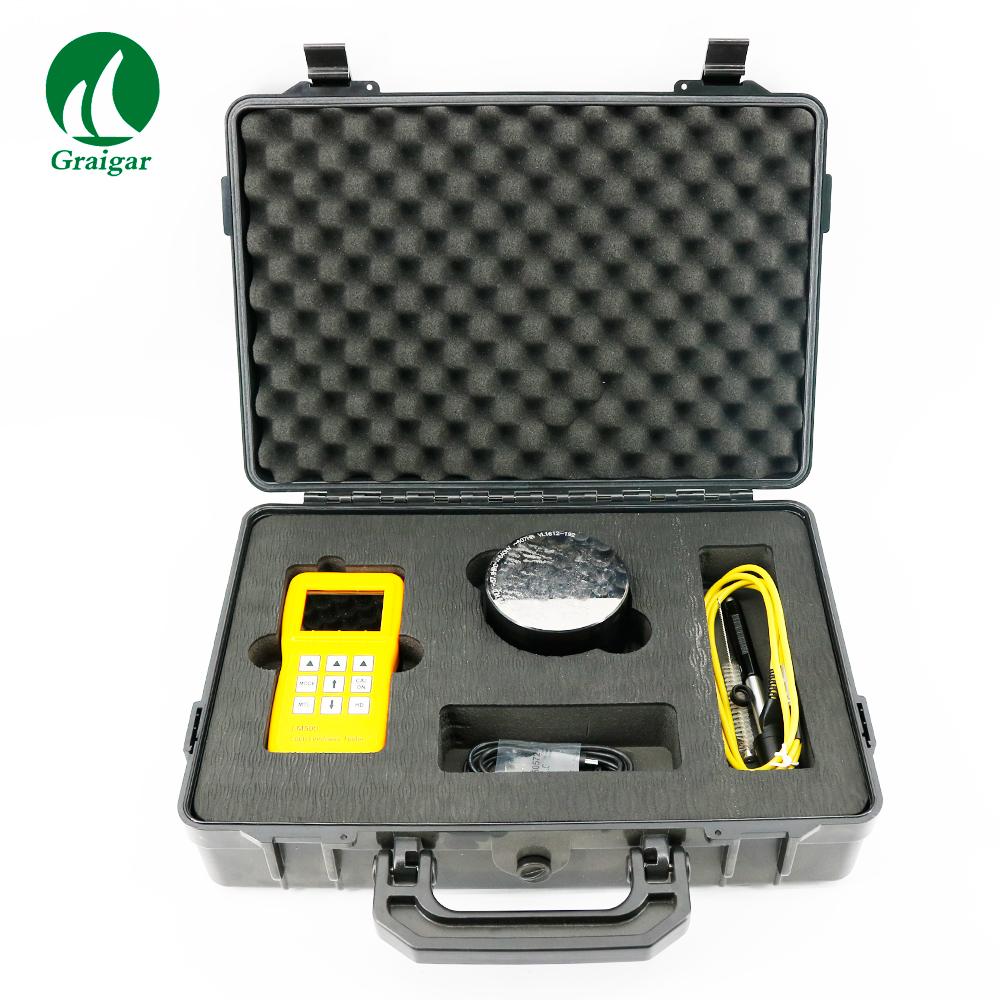

Standard Configuration LM500 Leeb Hardness Tester,  Standard Hardness Test Block, Software, USB Cable, Support Ring, Cleaning Brush, Packing Files, Instrument Case
Optional Accessories

Impact Device: D/C/G/DC/DL/D+15, Leeb Hardness Test Block, Rubber Protective Case, Belt, Standard Support Ring, Small Support Ring, Special Support Ring

Price Terms︰FOB shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2 days

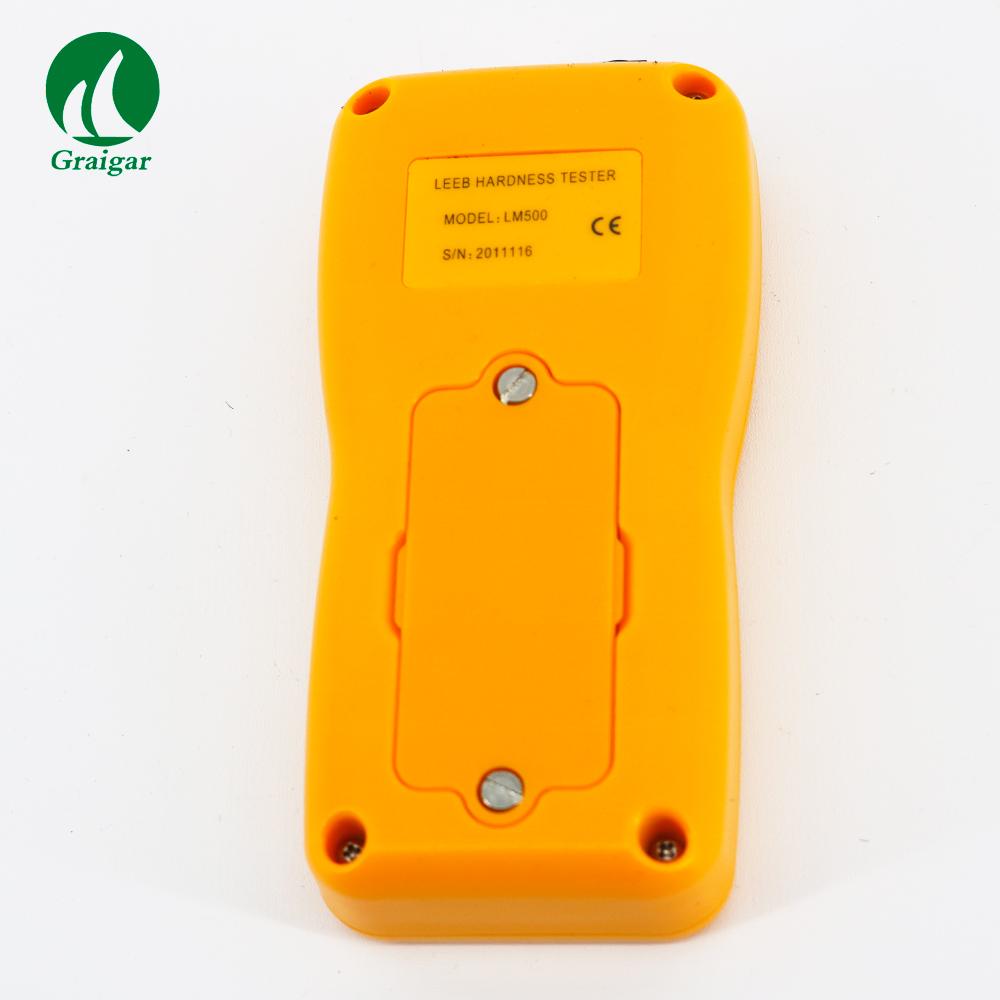

Product Image
