Portable durometer HARTIP 2000 Leeb Meter Metal Hardness Tester Meter

  • Portable durometer HARTIP 2000 Leeb Meter Metal Hardness Tester Meter
  • Portable durometer HARTIP 2000 Leeb Meter Metal Hardness Tester Meter
  • Portable durometer HARTIP 2000 Leeb Meter Metal Hardness Tester Meter
  • Portable durometer HARTIP 2000 Leeb Meter Metal Hardness Tester Meter
  • Portable durometer HARTIP 2000 Leeb Meter Metal Hardness Tester Meter
  • Portable durometer HARTIP 2000 Leeb Meter Metal Hardness Tester Meter
Model No.︰HARTIP 2000
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 630 / pc
Minimum Order︰1 pc
Share on:

 Total 12 Related Items
Prev678910Next

Product Description

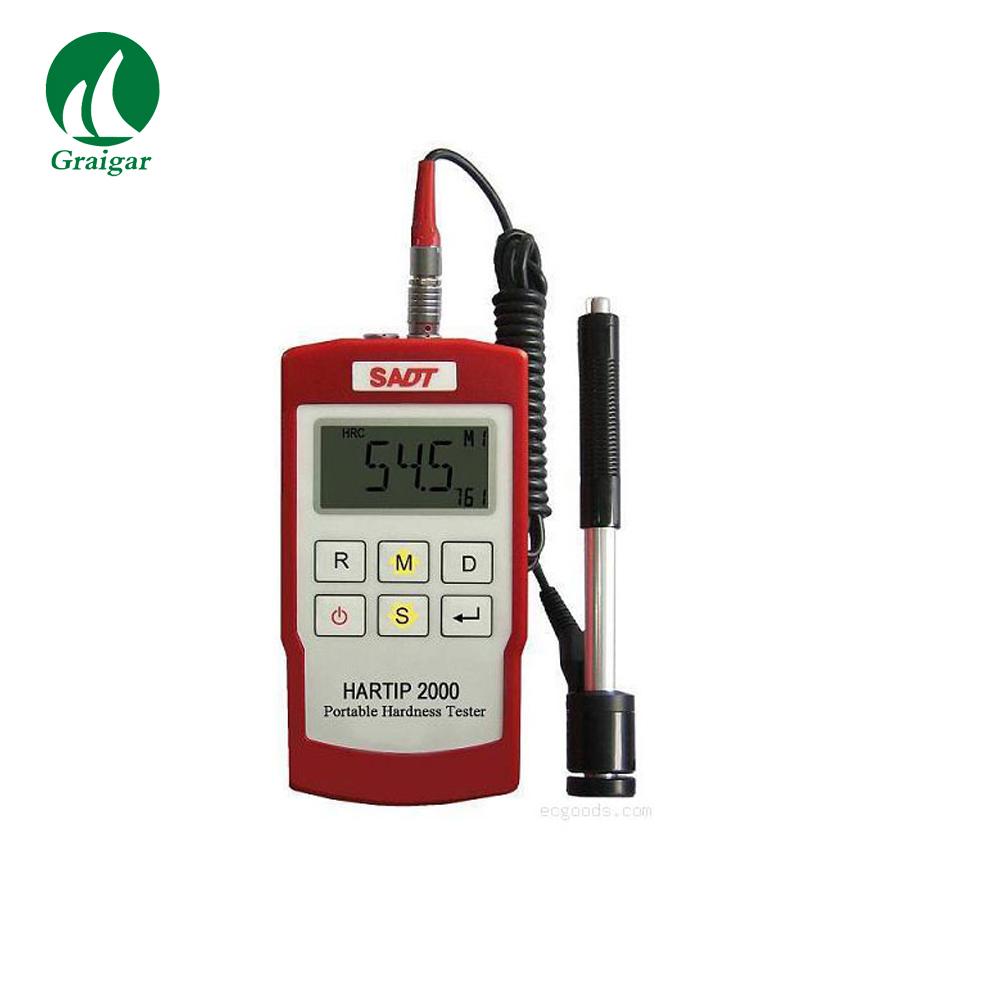

HARTIP 2000 Leeb Hardness Tester Meter Gauge Big LCD Display with Backlight







DESCRIPTION

HARTIP 2000 is an innovative portable Leeb hardness tester with our new patent technology. Which make HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle compensating method.
HARTIP 2000 is also a cost saving hardenss tester and has many other features.



UNIVERSAL ANGLE:



· More accurate: ±2 HL

· Linear accuracy for any angles

· No need to setup impact direction

· No compensation for impact direction



KEY FEATURES:



· It can recognize impact direction automatically, it does not need to adjust different impact direction by hand when testing, avoid manmade error

· High accuracy: +/-2HL( or 0.3% @HL800)

· Dual values( Leeb value and one conversion value) can be displayed at the same screen

· Big LCD display with backlight

· Ten testing materials including forged steel

· It has strength conversion value

· RS232 interface, it can connect micro-printer directly

· 999 data for memory

· Customer re-calibration allowed

· Power on/off automatically

· More economic and more convenient to use.

· Packed in water-proof and rigid carrying case





Model

HARTIP 2000

Principle

Leeb hardness measurement

Accuracy

±0.3% @ HL=800, Repeatability: ±2HL

Display

Digital LCD with backlight

Hardness scale

HL/HRC/HRB/HB/HV/HS/σb

Measuring range

HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940/ HS32-99.5

Impact device

DU (External)

Impact direction

Universal angle type

Materials

10 common metal materials

Memory

999 data can be stored and re-readable

Statistics function

Calculated automaticly

Recalibration

Allowed by user

Interface

RS232 to Micro-printer

Indicator

Low battery

Power off

Auto

Power supply

1.5V AA alkaline battery x 2

Working environment

-10~+40ºC

Standard

Conforming to ASTM A956

Dimension (mm)

124x67x30

Net weight (g)

240



Price Terms︰ FOB shenzhen
Payment Terms︰TT/WU/PP
Packing︰export carton
Lead Time︰2 days
