TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2

  • TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2
  • TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2
  • TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2
  • TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2
  • TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2
  • TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2
  • TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2
  • TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2
  • TUF-2000M High Quality Ultrasonic Flow Meter Module With TS-2
Model No.︰TUF-2000M
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 215 / pc
Minimum Order︰1 pc
Share on:

 Total 15 Related Items
Prev678910Next

Product Description

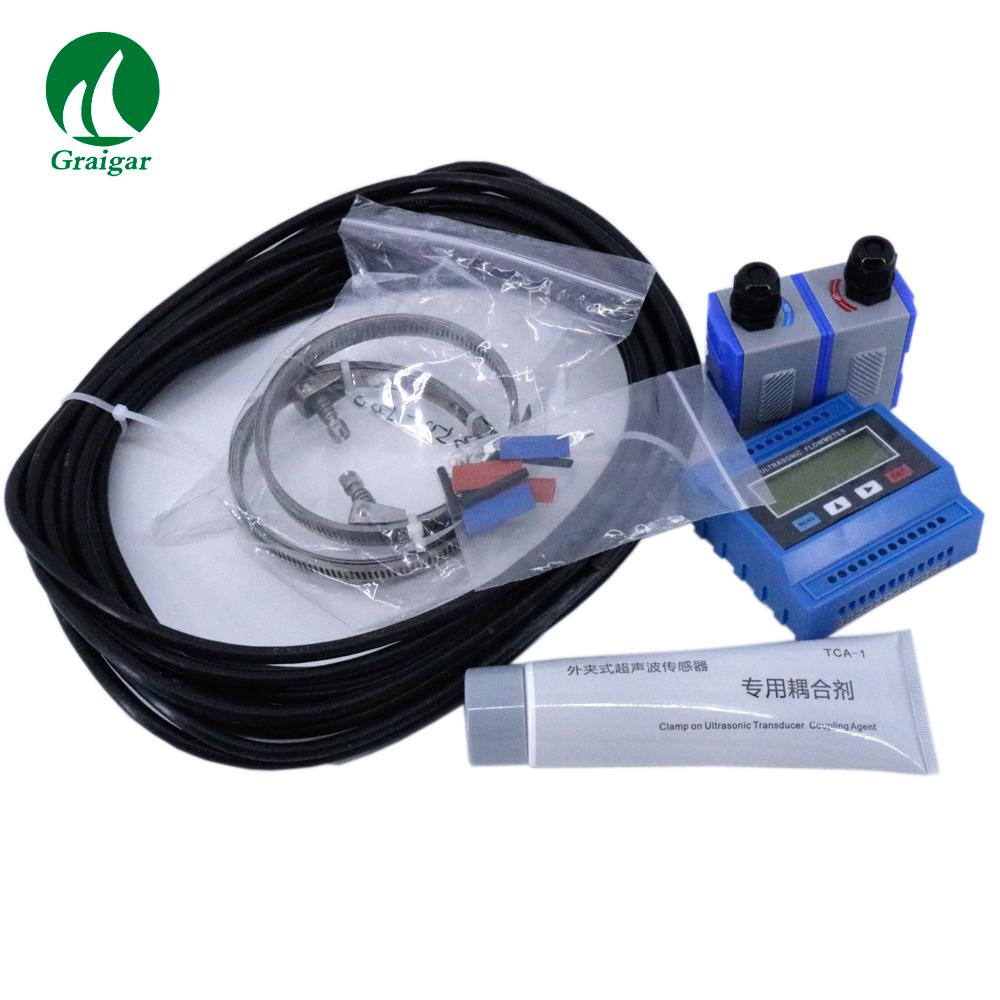

TUF-2000M High Quality Ultrasonic Flow Meter Module with TS-2 Sensor DN15-100mm Folwmeter







General Introduction:

Modular Ultrasonic Flow Meter can work alone without a LCD and Keypad module, the module can

be used alone as a flow meter. Users can even integrate a number of the modules into a multi-channel flow meter that can

measures up to several dozen of different pipes or a flow meter that has higher accuracy by measures the same pipe with

all the channels.

Features:

Linearity: Better than 0.5%

Repeatability: 0.20%

Accuracy: About 1%

Rate Units: English(U.S) or metric

Liquid Types: Virtually all liquids

Display: 2*10backlit LCD, displaying instant

Communication Interface: RS-485

Transducers: Model TS-2 , or other models for optional

Pipe Size: DN15-100mm (If you choose other transducer, the measuring range can be DN15-6000mm)

Temperature: -40C ~ 90C

Operating Power: Isolation 8 ~ 36VDC

Current: 50mA

Recording: Automatic memory the positive, negative, net totaliser or flow rate and heat quantity of the last 512 days,

128 months, 10years

Transmission Distance: Up to 1000m




If you choose other transducer, the measuring range can be DN15 ~ 6000mm,-40C ~ 160C



Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2days
