MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM

  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
  • MFD500B Professional Portable Digital Ultrasonic Flaw Detector Range: 0 ~ 9999MM
Model No.︰MFD500B
Brand Name︰MITECH
Country of Origin︰China
Unit Price︰US $ 2500 / pc
Minimum Order︰1 pc
Share on:

 Total 15 Related Items
Prev89101112Next

Product Description

MFD500B Ultrasonic Flaw Detector is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements. It combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port..







Display
Hi-resolution (320x240 pixels) multi-color TFT LCD with 4 user-selectable brightness control provides high contrast viewing of the
waveform from bright, direct sunlight to complete darkness.
The hi-resolution multi-color TFT LCD display with fast 60 Hz update gives an “analog look” to the waveform providing detailed information that is critical in many applications including nuclear power plant inspections.



Features :

  • Range: (0 ~ 9999) mm
  • Bandwidth: (0.2 ~ 20)
  • MHz Material Velocity: (1000 ~ 9999) m / s
  • Dynamic Range: ≥ 32dB
  • Vertical linear error: ≤ 3%
  • Horizontal linear error: ≤ 0.2%
  • Resolution:> 40dB (5P14)
  • Sensitivity Leavings: 60dB (flat-bottomed deep hole 200m



Functions:

Function: Thickness/Depth can be displayed in digital readout when using a normal probe and Peam path, Surface Distance and Depth are directly displayed when angle probe is in use. Both the DAC and the AVG method of amplitude evaluation are available.

Curved Surface:Correction feature Crack Height Measure function

Weld figure feature :Magnify gatespreading of the gate range over the entire screen width Video Recording and play Auto-gain function Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display

Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.
A Scan FreezeDisplay freeze holds waveform and sound path data B Scan display feature


Real Time Clock

The instrument clock keeps running tracking the time.



Communication
High speed USB2.0 port.
The optional DataPro software helps manage and format stored inspection data for high-speed transfer to the PC. Data can be printed or easily copied and pasted into word processing files and spreadsheets for further reporting needs. New features include live screen capture mode and database tracking.



Battery
Internal rechargeable Li-ion battery pack rated 7.2V at 8800 mAh 8 hours nominal operating time depending on display brightness 8-10 hours typical recharge time


Knob
Operating adjustments are easily and quickly made using the rotary knob.



Specifications

Range: 0 to 9999 mm, at steel velocity
Material Velocity: 1000 to 9999m/s
Display Delay: -20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs
Sensitivity: 110 dB max in
selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked.
Test Modes: Pulse echo, dual element and thru-transmission
Pulser: Tunable Square Wave Pulser

Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz
Pulse Energy: Low, Medium and High
Damping: 100, 200, 400 ohms
Bandwidth (amplifier bandpass ): 0.5 to 15 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Rectification: Positive halfwave, negative halfwave, fullwave, RF System Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier
Accuracy +/-1 dB.
Reject (suppression): 0 to 80% full screen height
Units: Inch or millimeter
Transducer Connections: BNC or LEMO
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Dimensions: 263x170x61 mm (10.4x6.7x2.4 inch)
Operating Temperature: -10 to 50 C
Storage Temperature: -30 to 50C

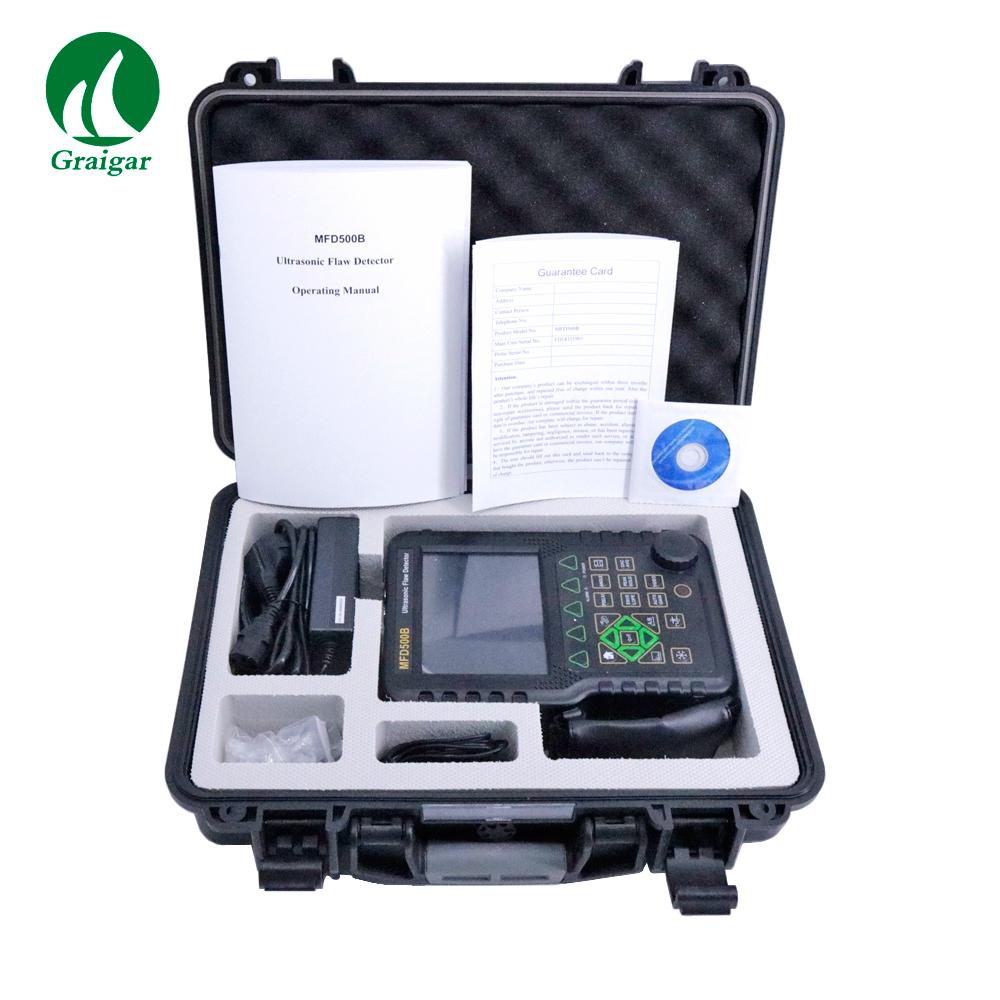

MFD500B Standard Configuration

No.

Item

Quantity

1

Main Body

1

2

Straight Beam Probe

1

3

Angle Probe

1

4

Machine-probe Cable (Q9-Q9)

1

5

Battery Module

1

6

Power Adapter (Charger)

1

7

Support Pillar

1

8

Manual

1

9

Instrument Case

1

10

Data proceeding Software

1

11

USB communication Cable

1

Ying

Price Terms︰EXW
Payment Terms︰Paypal/Credit Card/TT
Packing︰Carton
Lead Time︰2days
