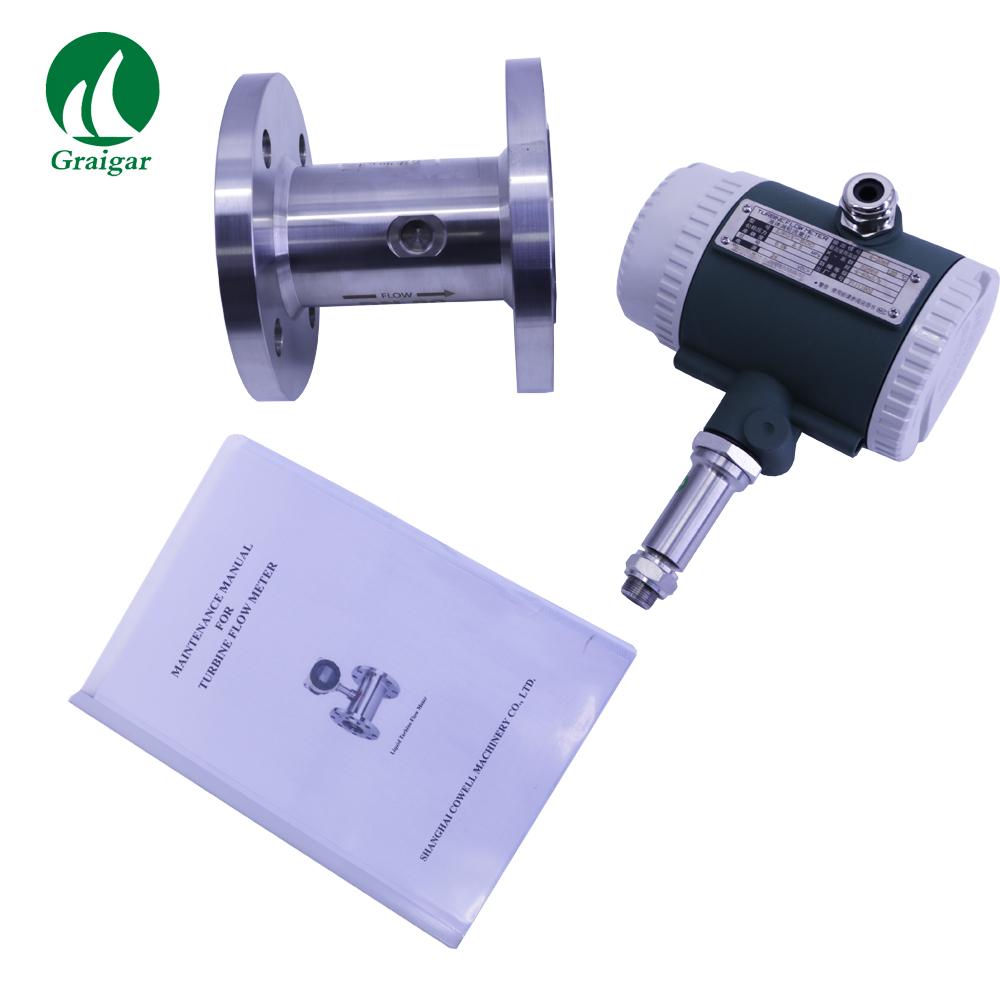

DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter

  •  DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter
  •  DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter
  •  DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter
  •  DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter
  •  DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter
  •  DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter
  •  DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter
  •  DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter
  •  DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter
Model No.︰ DN50MM
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 320 / pc
Minimum Order︰1 pc
Share on:

 Total 15 Related Items
Prev12345Next

Product Description

DN50MM Turbine Flowmeter Stainless Steel Liquid Flow Meter Volumetric Measuring Turbine Type of Impeller Flowmeters







Turbine Flow Meter is a volumetric measuring turbine type of Impeller Flowmeters , made up of sensors and Convertor. The flowing fluids engage the rotor causing it to rotate at an angular velocity proportional to the fluid flow rate. The Sensor reacts to the average velocity of fluid with the multi-blades rotor so as to speculating the flow value and the accumulative flow value.

    The turbine flow meter is an ideal solution when high accuracy, compact size, fast response, and high tolerance to shock and vibration are critical requirements and suitable for a wide range of viscosity medium including oil, gas, water and wastewater, chemical, gas utility, power, food and beverage, aerospace, pharmaceutical, etc.



Technical Parameters

Product name

Turbine flow meter

Nominal Diameter(mm)

DN50mm

Medium

Water,diesel,oil,fuel,hydraulic oil,gas ,LPG,etc

Accuracy Class

The standard type is 1%,Customized for 0.5% and 0.2%

Instrument material

SS304; SS316; etc.

Medium Temperature

Medium:-20~120℃

Connection

Flange

Signal Output

4-20mA

Supply Power

AC220V, DC12-24V or Lithium cell Batery

Signal Line Interface

Internal thread M20×1.5

Explode-proof Class

ExdIIBT6

Protection Class

IP65

Keywords

flow meter stainless steel




Flow range

DN(mm)

Flow rate (m3/h)

Regular tolerance pressure(Mpa)

DN4

0.04—0.25

6.3

DN10

0.2—1.2

6.3

DN20

0.8—8

6.3, 2.5(flange)

DN25

1—10

6.3, 2.5(flange)

DN50

4—40

6.3

DN80

10—100

6.3

DN100

20—200

6.3

DN125

25—250

6.3

DN200

80--800

6.3

Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2days
Product Image
