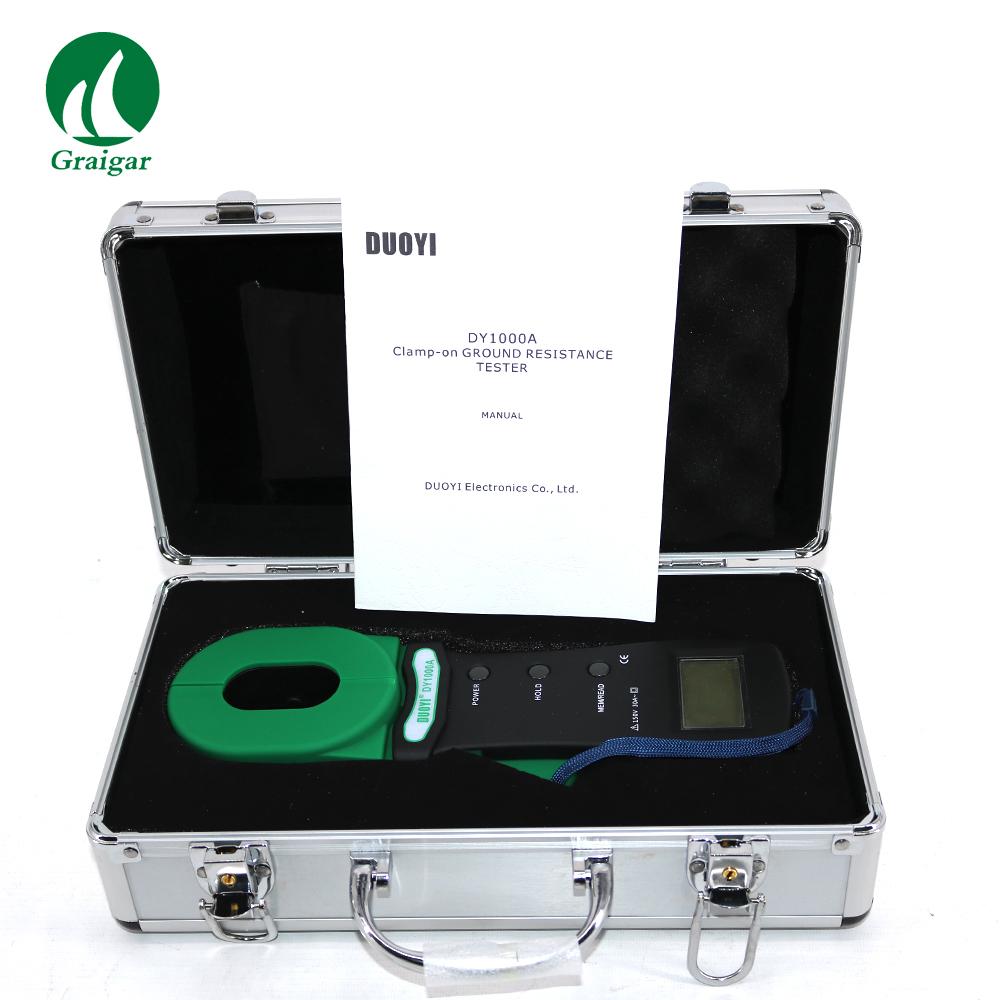

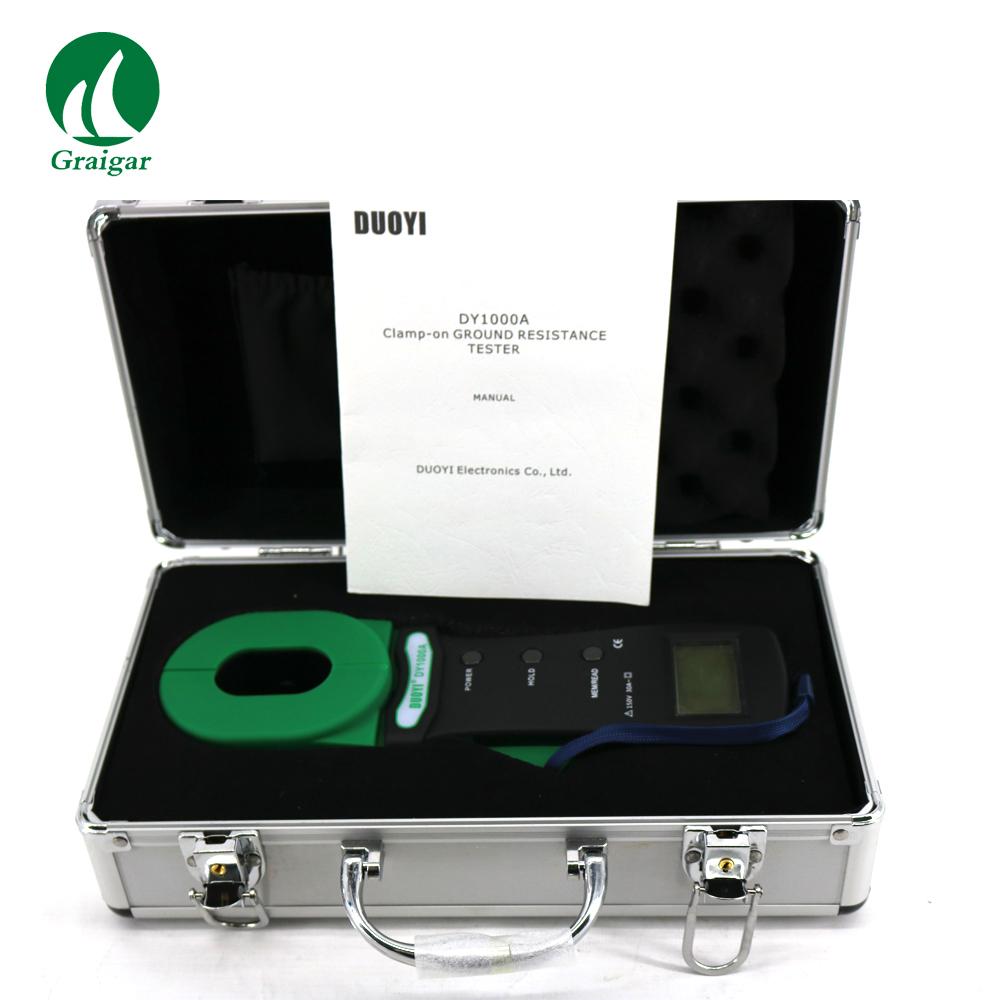

DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm

  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
  • DY1000A Digital Clamp-On Ground Resistance Meter Range 0.01ohm-1000ohm
Model No.︰DY1000A
Brand Name︰DUOYI
Country of Origin︰China
Unit Price︰US $ 240 / pc
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev89101112Next

Product Description

Clamp on ground resistance tester DY1000A is a major breakthrough in traditional  grounding resistance measurement. It is widely used in the grounding resistance  measurement of the power, telecommunications, meteorology, oilfield, construction  and the industrial and electrical equipment.  Clamp on ground resistance tester DY1000A, in the measurement of a grounding  system with loop, does not require breaking down the grounding wire, and need no auxiliary electrode. It is safe, fast and simple.





Specification

Model

DY1000A

Function

Ground resistance test, Loop resistance test

Specification

Range

Resolution

Accuracy





Earth Resistance

0.01Ω~0.099Ω

0.001Ω

(±1%+0.01Ω)

0.1Ω~0.99Ω

0.01Ω

(±1%+0.01Ω)

1.0Ω~49.9Ω

0.1Ω

(±1.5%+0.1Ω)

50.0Ω~99.5Ω

0.5Ω

(±2%+0.5Ω)

100Ω~199Ω

(±3%+1Ω)

200Ω~395Ω

(±6%+5Ω)

400Ω~590Ω

10Ω

(±10%+10Ω)

600Ω~1000Ω

20Ω

(±20%+20Ω)

Min. Resolution

0.001Ω

Configurable alarm value of resistance

0-199Ω

                     Leakage Current

0~80mA

N/A

80mA~650mA

N/A

650mA~4A

N/A

4A~30A

N/A

Min Resolution

50μA

Configurable alarm value of current

45~65Hz,RMS

Memory

99 sets

Conductor Size

Φ55mm*32mm

Working Temperature

-10℃~55℃

Working Humidity

10%-90%

Protection Level

double insulation

Featured

by clamp Range Shift( Automatic )

External Magnetic Field

<40A/m

External Electric Field

<1V/m

Single Measuring Time

1 second

resistance alarm value

1-199

LCD size

28*46mm

Power Supply

AA 1.5V*4

Dimension

285*90*60mm

Weight

Approxi. 1200g



Ying

Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/wu
Packing︰export Carton
Lead Time︰2days
Product Image
