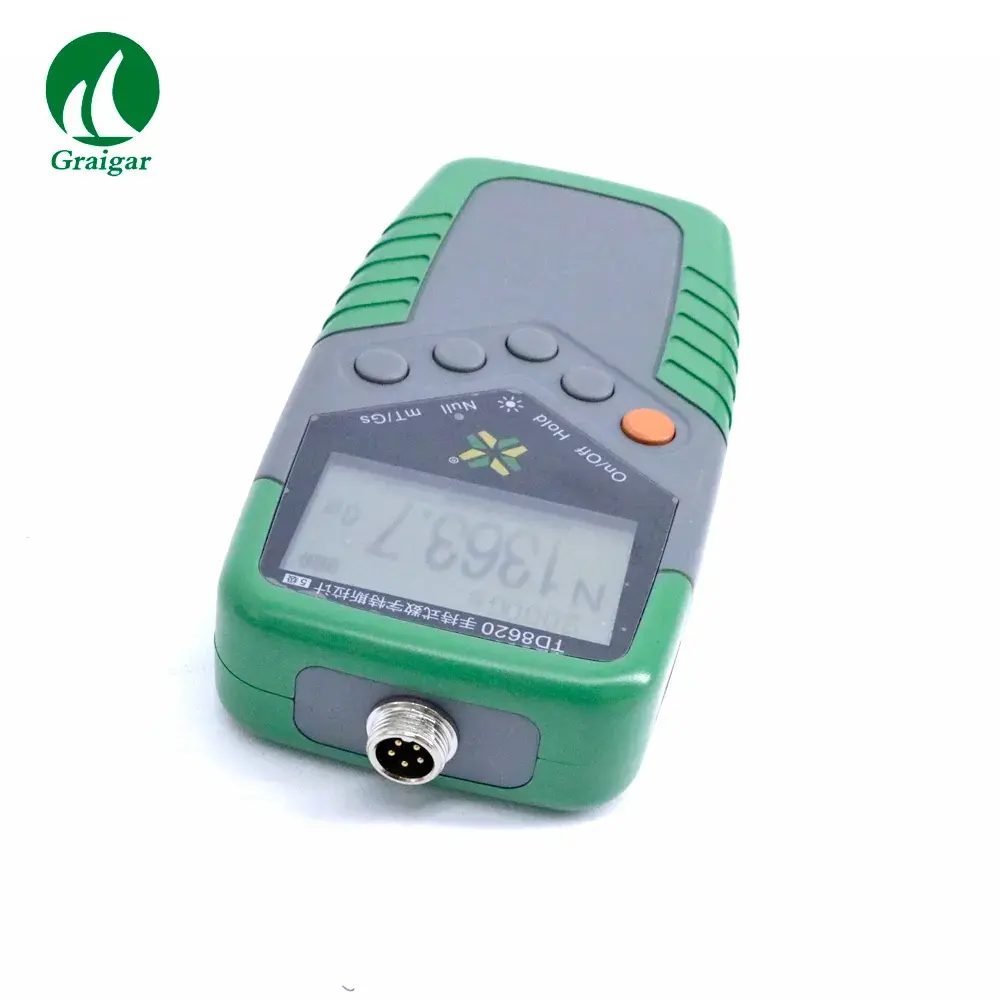

TD8620 Hand-held Digital Tesla Meter 5%/ 2% / 1% Can be Choose
Basic accuracy:±5%/±2% /±1% Please tell us which one do you want.
Introduction:
The design of TD8620 hand-held digital Tesla meter follows the IEC-61010-1 safety standard, and conforms to the national verification regulation of JJG242-1995 Tesla meter. TD8620 hand-held digital Tesla meter adopts not only the high-sensitivity Hall sensor and high-resolution A / D conversion chip, but also the popular single-chip computer technology and digital filtering technology . It has the advantages of high sensitivity, stable reading, low power consumption , and light weight. The measurement range is 0-2000 Mt, and the basic accuracy is ±1%. It has the characteristics of automatic zero, automatic measurement range, keeping of maximum / minimum values, etc.
Range:200 mT,2000 mT
Range of measurements:0 ~ 120%
Minimum resolution:10uT
| Basic accuracy:±5%/±2% /±1% |
Number of digits displayed :4 bits (Decimal)
Power supply:one 9 V battery(battery not included)
Working temperature:0℃ ~ 50℃
Storage temperature:-20℃ ~ 50℃
Shape size:160 mm × 80 mm × 32 mm
Device weight:260 g
Hall probe:"Longitudinal Hall probe, wire length is about 2 meters
