Model No.︰JW4108S
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 910 / pc
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev12345Next

Product Description

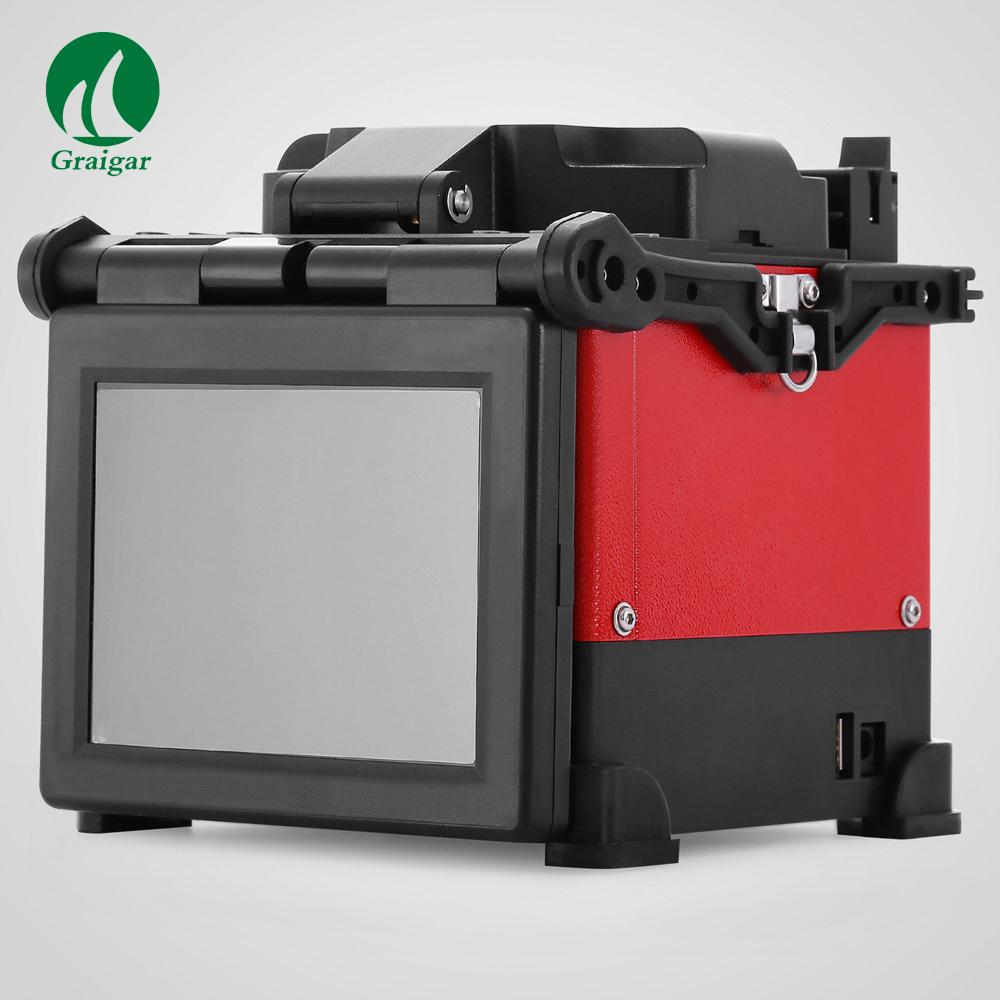

High Quality JW4108S Fully Automatic Heating Intelligent Optical Fiber Fusion Splicer Cable Splicing Machine 8 sec Splicing Time





JW4108S Optical Fiber Fusion Splicer with high performance price ratio, smart appearance, reliable quality. Optical Fiber Fusion Splicer is also called Cable Splicing Machine. It is mainly applied to the construction, maintenance, emergency repair and emergency repair of the optical cable lines of telecom operators, communication engineering companies and public institutions; and the experiment, production and testing of optical devices; scientific research and so on.




Features

● Used for  FTTH and ordinary fiber project

● Core to core alignment by PAS technology

● 8 sec splicing time and 30 sec heat time

● 300 X or Y view, 200 X and Y view

● 5 inch digital high-quality LCD screen, observe X and Y view at same time

● Three in one fixture, splicing single fiber, cable indoor and pig tail

● Built in large capacity lithium battery of 200 times splicing and heating

● Small size and light weight, 2.1KG including battery




Specifications



 Model

JW4108S Handheld FTTH Fusion Splicer

Splicing Type

SM, MM, DS, NZDS

Splicing Loss

0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)

Return Loss

>60dB

Splicing Mode

Manual, Half Auto, Auto

Fiber Alignment

Core to Core Alignment by PAS technology

Applicable Fiber

Cable indoor and 0.25mm,0.9mm fiber,   SC connector(option)

Splicing Time

≤9s

Heat Time

≤30s

Cleaved Length

8~16mm

Fiber Image/ Magnification

300/200

View Display

5 inch digital high-quality LCD screen

Tension Test

Standard 2N (option)

Heat Shrinkable Sleeve

60mm, 40mm and serials heat Shrinkable Sleeve

Battery Capacity

200 cycles splicing and heating,  3 hours charging time

 ( splicing and charging at same time)

Battery Life

Cycling charge 300-500 times, easy to replace battery

Electrodes Life

3000, easy to replace electrodes

Power Source

≤20W

Interface

USB   Convenient data download and software update

Construction Lighting

Built in high brightness, wide range of lights, easy to operate at night

Power supply

Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A

Operating Condition

0-5000m above sea level, Temperature: -10-60℃,

Humidity:0~95%RH (No dew)

Weight  (including battery)

2.1 KG (including battery)

Dimension (LxWxH)

135mm(L)×158mm(W)×155mm(H)




Standard Configuration



  No                    Name                                     Qty



1       Fusion Splicer ( JW4108S )                    1 set

2       Fiber Cleaver                                          1 pc

3       Fiber Stripper                                          1 pc

4       AC Adatpor                                             1 pc

5       Li Battery                                                1 pc

6       Charger                                                  1 pc

7       Spare Electrodes                                   1 pair

8       Cooling Tray                                           1 pc

9       User Manual CD                                     1 pc

10     Carrying Case                                         1 pc



Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2 days
