VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s

  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
  • VM-6310 Vibration Meter True RMS Digital Vibrometer Range 0.01~199.9 mm/s
Model No.︰VM-6310
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 169 / pc
Minimum Order︰1 pc
Share on:

 Total 9 Related Items
Prev12345Next

Product Description

Spec

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.



Features

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Vibration Standard

ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank Rev(rpm) H:high of shaft(mm)
Maximum vibration velocity rms(mm/s)
80<H<132 132<H<225 225<H<400
Normal 600~3600 1.8 2.8 4.5
Good(R) 600~1800 0.71 1.12 1.8
1800~3600 1.12 1.8 2.8
Excellent(S) 600~1800 0.45 0.71 1.12
1800~3600 0.71 1.12 1.8

Specifications

Sensor Piezoelectric Transducer
Measuring Range Acceleration --------
Velocity 0.01~199.9mm/s True RMS
Displacement --------
Frequency Range Acceleration --------
Velocity 10Hz~1kHz
Displacement --------
Accuracy 5% of Reading+2 digits
Operating Conditions Temperature 0~50ºC
Humidity <90%RH
Power Supply 4x1.5V AA(UM-3)Battery
Dimensions 160x68x32mm
Weight 181g(Not Including Batteries)

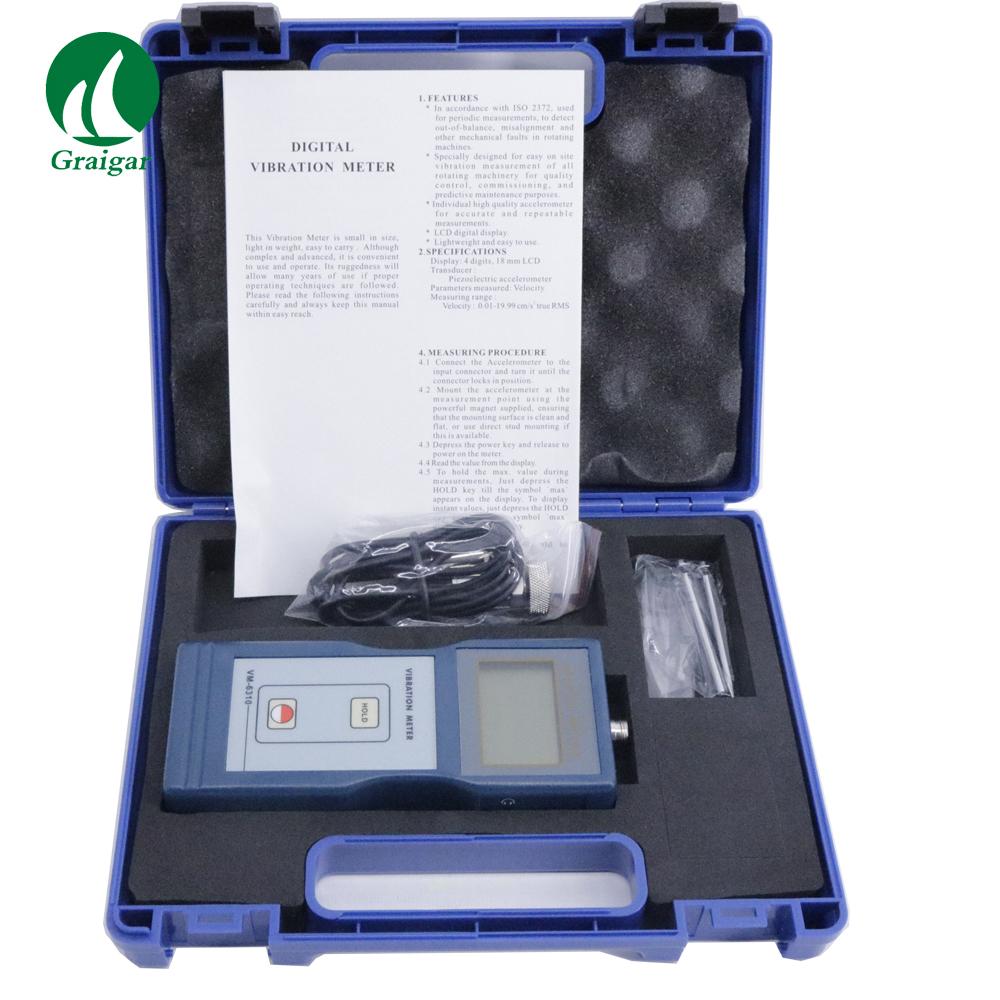

Standard Accessories Main Unit
Piezoelectric Transducer
Powerful Rare Earth Magnet
Probe(Cone)&Probe(Spherical)
Carrying Case(B04)
Manual Book
Optional Accessories Headset
RS-232C Data Cable with Software
Bluetooth Data Adapter with Software

 Ying

Price Terms︰EXW
Payment Terms︰Paypal/Credit Card/TT
Packing︰Carton
Lead Time︰Within 3 working days after paying.
