Features :

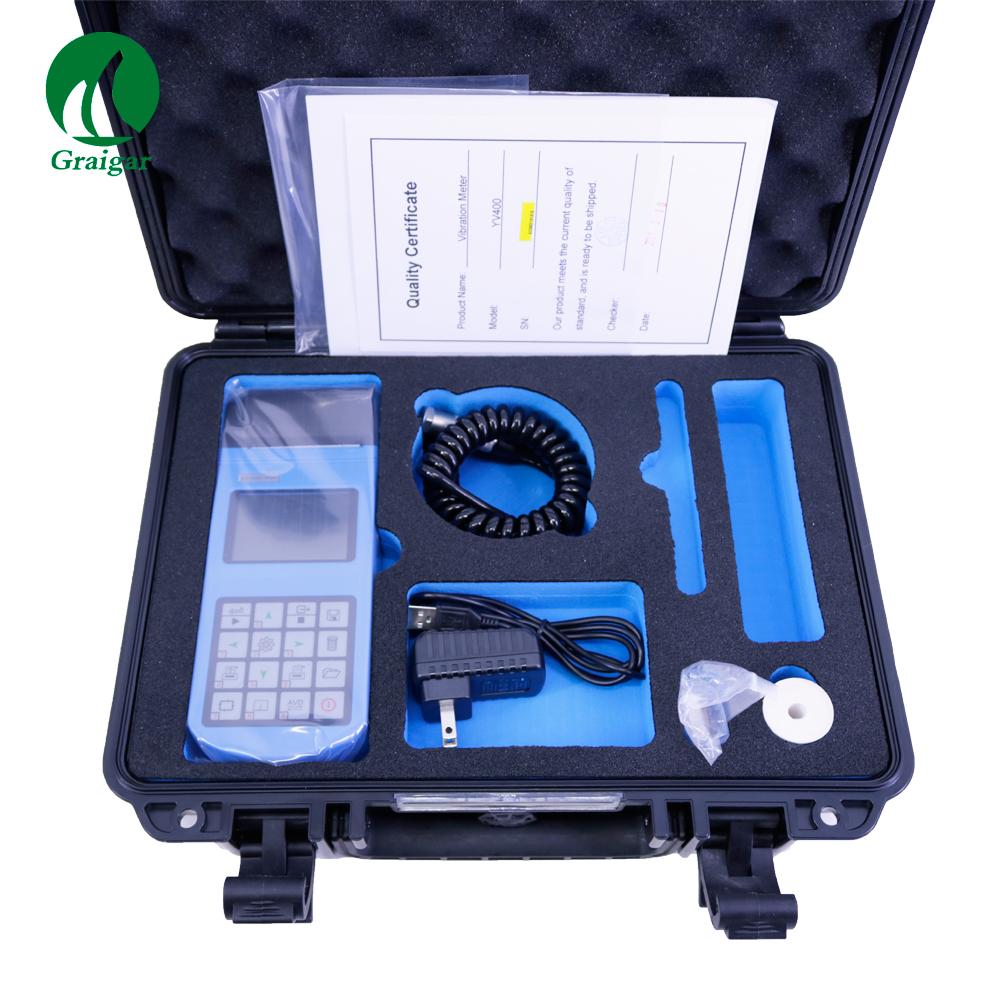

YV400 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also for rotational speed measuring.
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.
YV400 is widely used in machinery, power, metallurgy, automobile and other industrial fields.
Specification:
|
Model
|
YV400
|
|
Testing range
|
Acceleration: 0.1 ~ 205.6 m/s2(peak);
Velocity: 0.1 ~ 400.0 mm/s(RMS);
Displacement: 0.001 ~ 9.0 mm(peak-peak)
|
|
Frequency range
|
10Hz ~ 200Hz, 10Hz ~ 500Hz, 10Hz ~ 1kHz, 10Hz ~ 10kHz
|
|
Allowable error
|
±5%
|
|
Analysis frequency interval
|
0.25Hz
|
|
Speed measurement range
|
30~300000 RPM (5 ~ 5kHz)
|
|
Speed measurement error allowed
|
±(0.05% + 1)
|
|
Speed measuring distance
|
0.15 ~ 1m
|
|
Range of temperature
|
0℃~40℃
|
|
Display
|
TFT color LCD screen, 320 x 200 pixels
|
|
Data interface
|
Mini USB
|
|
Size
|
212 * 80 * 35mm
|
|
Printer
|
Integrated thermal printer
|
|
Weight
|
320g
|
|
Battery
|
Rechargeable Li battery,1500mAh
|
|
Continuous working time
|
About 50h
|
