Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function

  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
  • Fault Detector Ultrasonic Flaw Detector MFD800C with Auto-gain function
Model No.︰MFD800C
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 2500 / pc
Minimum Order︰1 pc
Share on:

 Total 15 Related Items
Prev1112131415

Product Description

Video Recorder





Screen scenes can be captured as movie files. More than 10 hours movie can be saved to the inside memory. They can be re-played using the instrument or the PC software delivered with the instrument.

Video Recorder is useful in many situations, it is very convenient for those who want to analyze the probing activities later.

FUNCTIONS

Semiautomatic two point calibration: Automated calibration of transducer zero offset and/or material velocity

Flaw Locating:Live display Sound-path, Projection (surface distance), Depth, Amplitude,

Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection.

Digital Readout and Trig. Function: Thickness/Depth can be displayed in digital readout when using a normal probe and Peam path, Surface Distance and Depth are directly displayed when angle probe is in use.

Both the DAC and the AVG method of amplitude evaluation are available.

AWS D1.1.

Curved Surface Correction feature

Crack Height Measure function

Weld figure feature

Magnify gate:spreading of the gate range over the entire screen width

Video Recording and play

Auto-gain function

Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display

Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.

A Scan Freeze:Display freeze holds waveform and sound path data

B Scan display feature



SPECIFICATIONS

l Range: 0 to 9999 mm, at steel velocity

l Material Velocity: 1000 to 9999m/s

l Display Delay: -20 to 3400 µs

l Probe Delay/Zero Offset : 0 to 99.99µs

l Sensitivity: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB and locked.

l Test Modes: Pulse echo, dual element and thru-transmission

l Pulser: Tunable Square Wave Pulser

l Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz

l Pulse Energy: 200V, 300V, 400V, 500V, 600V selectable

l Bandwidth (amplifier bandpass ): 0.5 to 15 MHz

l Gate Monitors: Two independent gates controllable over entire sweep range

l Rectification: Positive half wave, negative half wave, full wave, RF

l System Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.

l Reject (suppression): 0 to 80% full screen height

l Units: Inch or millimeter

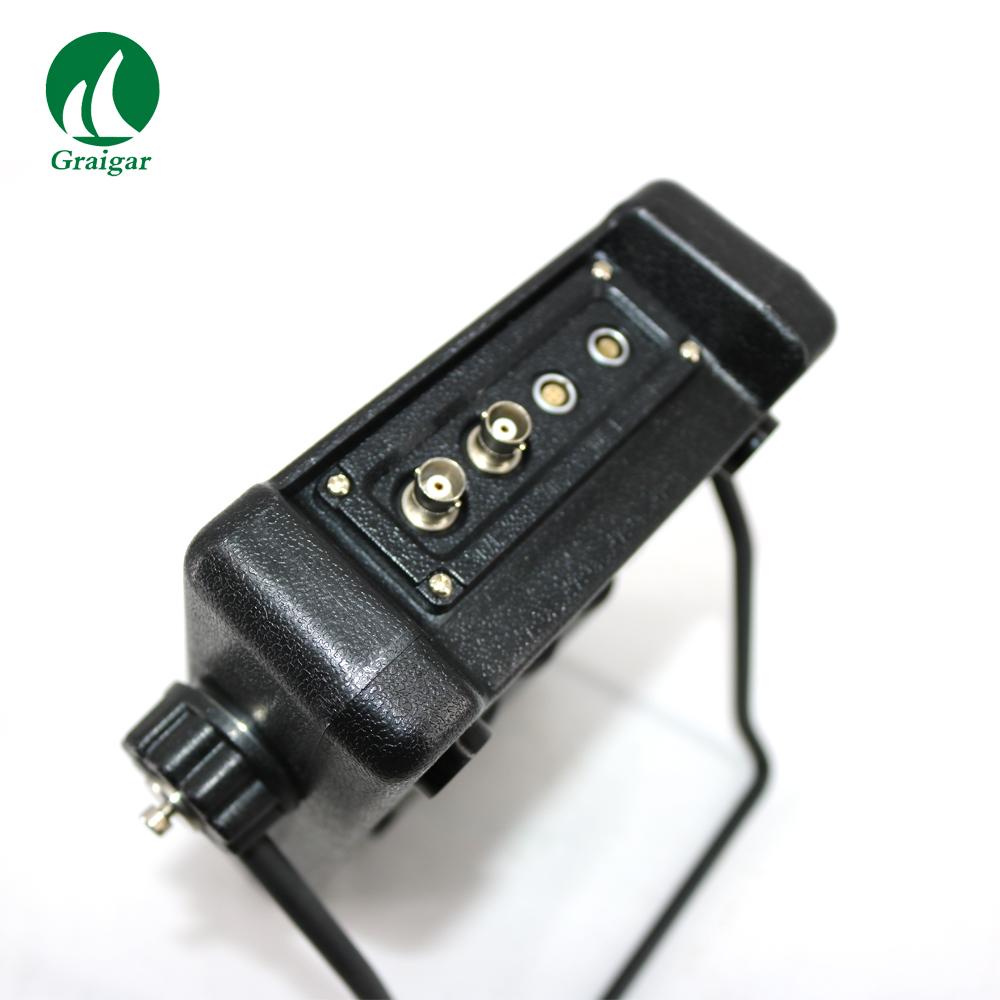

l Transducer Connections: BNC or LEMO

l Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

l Operating Temperature: -10°C to 50°C

l Storage Temperature: -30°C to 50°C



RAMARK: MORE DISCOUNT, PLEASE CONTACT!

Our company has a history of 12 years, and has stores in AliExpress and Alibaba, the price here is the most favorable, welcome to consult us for more questions

about the shipment:we have spot goods in the warehouse and will deliver the goods 1 to 2 days after your payment ,about 3 to 7days to your delivery address.if you have any questions,please consult us

Price Terms︰EXW shenzhen
Payment Terms︰TT/LC/WU/PAYPAL
Packing︰export carton
Lead Time︰2 days
