Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets

  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
  • Original DSE6010MKII Auto Start Control Module for Single Diesel and Gas Gensets
Model No.︰DSE6010MKII
Brand Name︰DSE
Country of Origin︰United Kingdom
Unit Price︰US $ 450 / pc
Minimum Order︰1 pc
Share on:

 Total 19 Related Items
Prev45678Next

Product Description

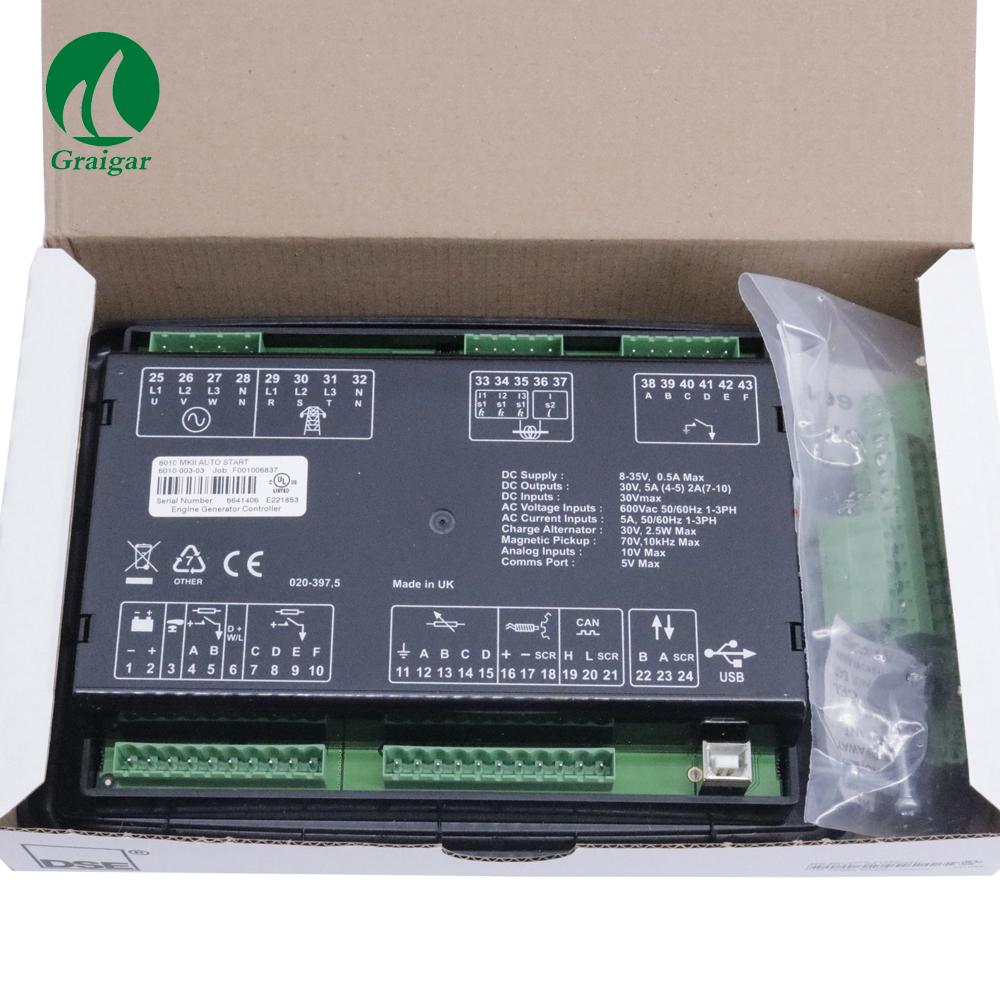

The DSE 6010 MKII is an Auto Start Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets.





OVERALL SIZE
216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)
PANEL CUTOUT SIZE
184 mm x 137 mm (7.2" x 5.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.48kg


PRODUCT VARIANTS

6010-03 - 6010 MKII AUTO START CONTROL MODULE

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
100 mA at 12 V, 105 mA at 24 V

MAXIMUM STANDBY CURRENT
60 mA at 12 V, 55 mA at 24 V

MAXIMUM SLEEP CURRENT
40 mA at 12 V, 35 mA at 24 V

GENERATOR & MAINS (UTILITY)

VOLTAGE RANGE

15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE
3.5 Hz to 75 Hz

INPUTS

DIGITAL INPUTS A to F
Negative switching

ANALOGUE INPUTS A to C
Configurable as:
Negative switching digital input
0 Ω to 480 Ω

ANALOGUE INPUT D
Configurable as:
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 480 Ω

OUTPUTS

OUTPUT A (FUEL)
10 A short term, 5 A continuous,
at supply voltage

OUTPUT B (START)
10 A short term, 5 A continuous,
at supply voltage

AUXILIARY OUTPUTs C, D, E & F
2 A DC at supply voltage

more information and cost,welcome to consult us

Price Terms︰FOB shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2 days
