Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter

  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
  • Megger meter UNI-T UT502A Digital Insulation Resistance Tester AC Voltage meter
Model No.︰ UT502A
Brand Name︰UNI-T
Country of Origin︰China
Unit Price︰US $ 90 / pc
Minimum Order︰1 pc
Share on:

 Total 19 Related Items
Prev12345Next

Product Description

UT500 series insulation testers are used to measure the insulation resistance of electrical equipment and household appliances.



This is done by measuring the insulation resistance between electrical circuits or between circuits and ground.
UT500 series can measure insulation resistance, AC voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption Ratio).
These are ideal tools for ensuring transformers, generators, high voltage motors, power capacitors, power cables,
arresters and other electrical equipment that can operate in a safe and accurate manner. UT501B and UT502A meet IEC61557 standard.

Features
1. 2000 count LCD display, overload indication, backlight
2. AC voltage measurement, auto power off
3. Auto discharge
4. Continuous measurements mode, red warning light and buzzer function
5. Continuous low resistance measurement
6. PI and DAR measurement, auto resistivity calculation
7. Low resistance returning to zero function to improve accuracy
8. EN61557-1:2007, EN61557-2:2007, EN61557-4:2007





Specifications

Range

BestAccuracy

Model



UT502A

InsulationResistance(Ω)

TestVoltage

500V/1000V/2500V

0%~10%

500V

0.00MΩ~99.9MΩ

±(3%+5)

100MΩ~5.0GΩ

±(5%+5)

1000V

0.00MΩ~99.9MΩ

±(3%+5)

100MΩ~5.0GΩ

±(5%+5)

2500V

0.00MΩ~99.9MΩ

±(3%+5)

100MΩ~9.9GΩ

±(5%+5)

10.0GΩ~20.0GΩ

±(10%+5)

LoadCurrent

50V(R=50kΩ)1mA

0%~10%

100V(R=100kΩ)1mA

0%~10%

250V(R=250kΩ)1mA

0%~10%

500V(R=500kΩ)1mA

0%~10%

1000V(R=1MΩ)1mA

0%~10%

2500V(R=1MΩ)1mA

0%~10%

ShortCircuitCurrent



<2mA

LowResistance(Ω)

0.01Ω~200Ω(about5.0V/>200mA)

±(2%+3)

ACVoltage(V)

30V~600V

±(2%+3)

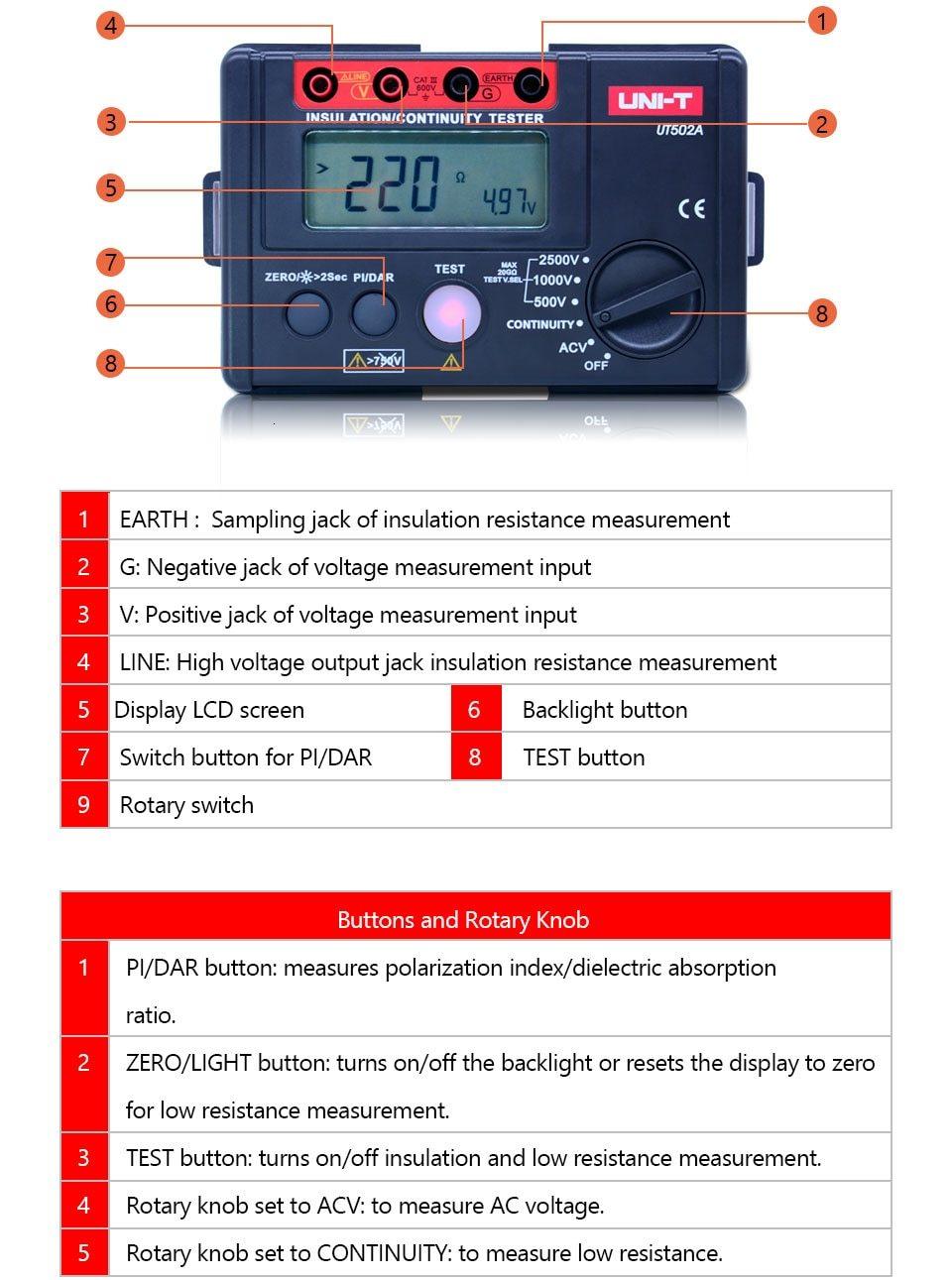

Features

DisplayCount



2000

DAR

60s/15sand60s/30s

PI



AutoRange



LowBatteryIndication



LCDBacklight



AlarmLightDisplay



AlarmBuzzer



HighVoltageIndication



OverLoadIndication



AutoDisharge



TestVoltageViceDisplay



10MΩInternalResistanceTest



GeneralCharacteristics

Power

1.5VBatteries(LR6)×6Battery Not Included!

LCDSize

70.6mmx34mm

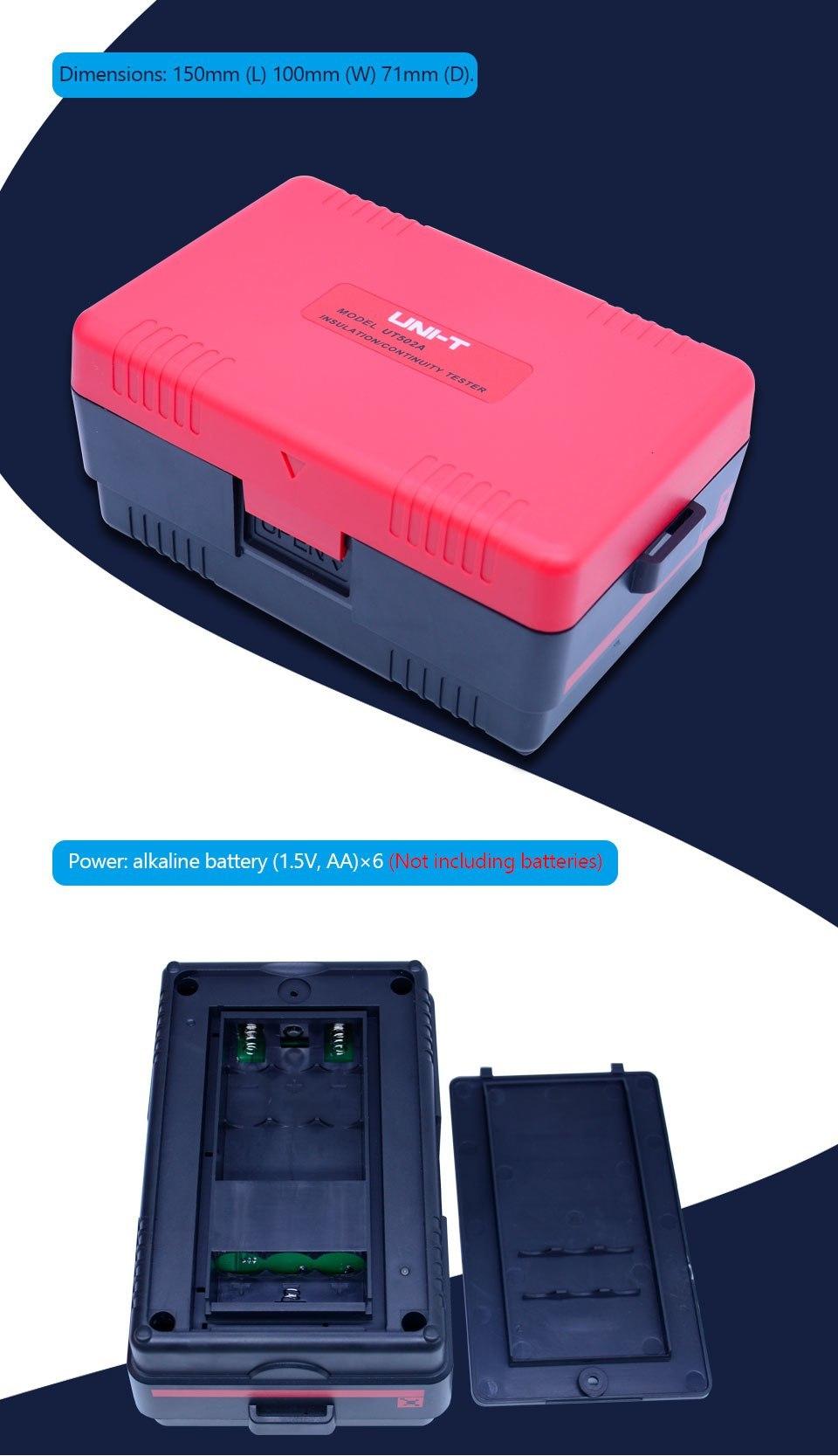

ProductSize

150mmx100mmx71mm





Package List:

1*UNI-T UT502A Insulation Resistance Tester
1*Test Lead
1*Probe
2*Alligator Clip
1*Carrying Bag
1*Gallus

more uni-t service products welcome to consult us

Price Terms︰FOB shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2 days
