HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester

  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
  • HM-934-1+ Portable Barcol Impressor Aluminum Hardness Tester
Model No.︰ HM-934-1+
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 430 / pc
Minimum Order︰1 pc
Share on:

 Total 12 Related Items
Prev45678Next

Product Description

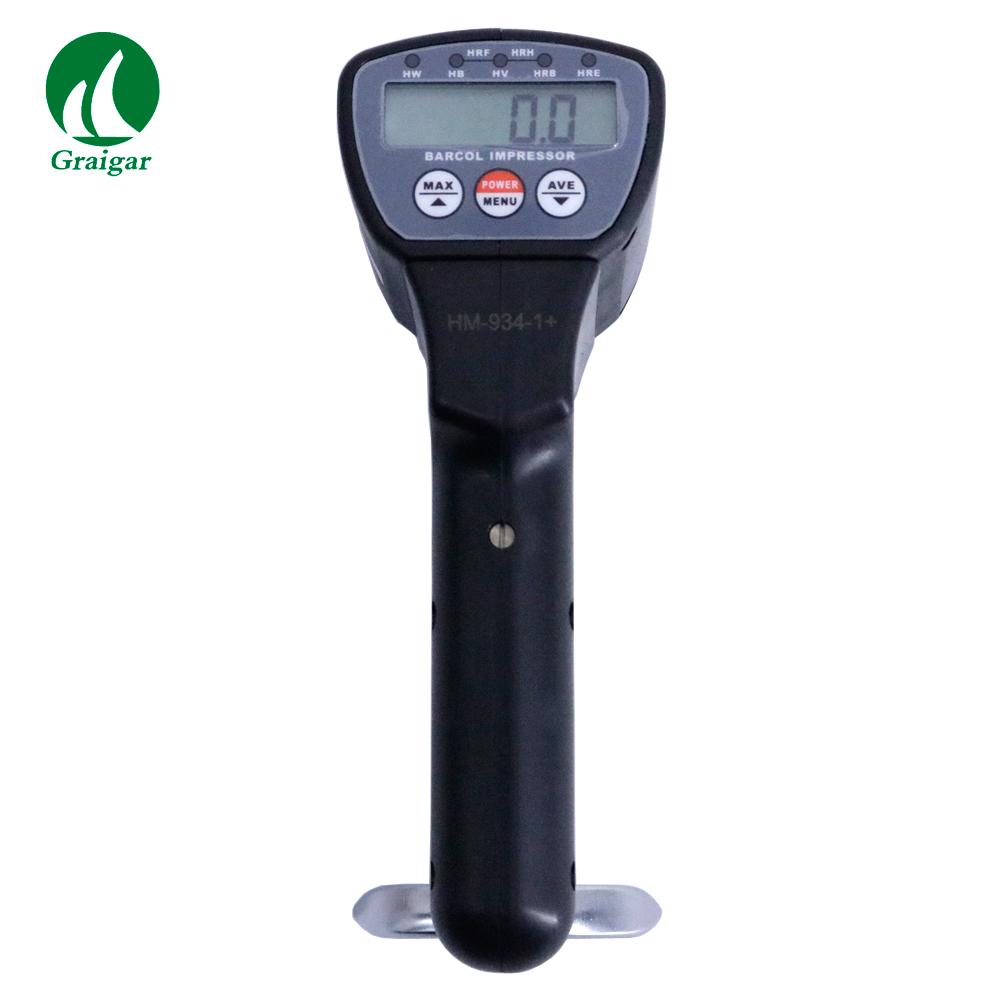

HM-934-1+  Portable Barcol Impressor Aluminum Hardness Tester with digital indentation Durometer







Application:

It is mainly used in aluminum processing industry, testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for glass steel industry.



Features:

* A digital indentation hardness tester, is the latest design and development of our company.


* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.
* It is with good stability, convenient calibration, and high accuracy of detection.
* Small in size, portable. Single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.
* Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.
* No need to  be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.
* With the maximum hold function, recording the maximum hardness value during measurements.
* Can be used for measuring not only Barcol Hardness, but also Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).


* With the function of calculating the average value, can calculate the average value of the 29 sets of data at most.


* Provide Bluetooth data output choice.



  Model   HM-934-1+
  Range   0~100Hba, Amount to 25~135HBW
  Resolution   0.1HBa
  Indication Error   81~88HBa ±1HBa
  42~48HBa ±2Hba
  Repeatability Error   81~88HBa ±1.5HBa
  42~48HBa ±2.5HBa
  Brinell Hardness   √
  Vickers Hardness   √
  Webster Hardness   √
  Rockwell hardness   √
  Maximum Hold   √
  Average Calculation   √
  Operating Condition   Temperature: 0~50°C
   Humidity: <80%RH
  Power Supply   2 x 1.5 V AAA (UM-4) Battery
  Weight

  390g (Not Including Batteries)

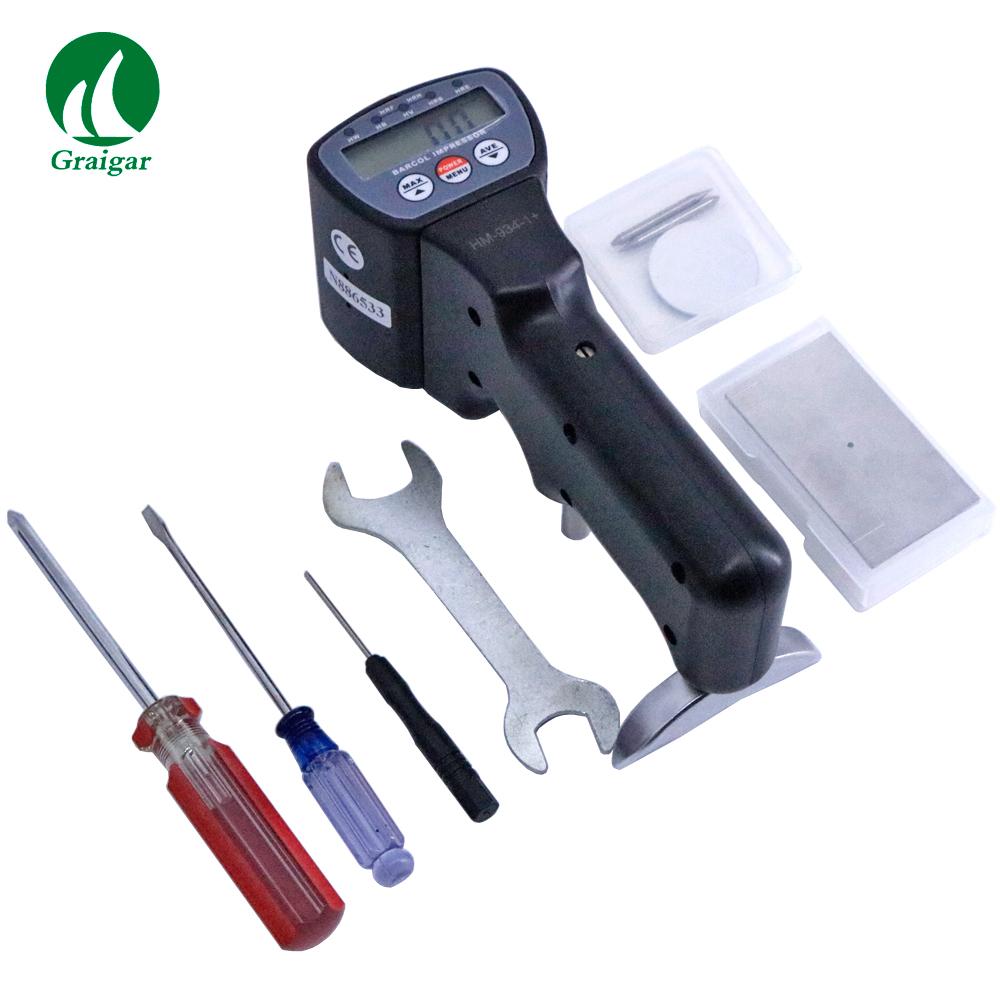

Standard Accessories :

 1. Main Unit

 2. 2 Pins

 3. 2 Standard Blocks

 4. Pin Length Calibration Block

 5. Screw Driver

 6. Spanner

 7. Carrying Case

 8. Operation Manual



Optional Accessories:

1. Bluetooth data out put with software

about the shipment:we have spot goods in the warehouse and will deliver the goods 1 to 2 days after your payment ,about 3 to 7days to your delivery address.if you have any questions,please consult us





Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2 days
