Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater

  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
  • Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Mater
Model No.︰ Leeb110
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 320 / pc
Minimum Order︰1 pc
Share on:

 Total 12 Related Items
Prev12345Next

Product Description

Leeb Portable Digital Leeb110 Hardness Tester Used to Detect a Variety of Metal Materials







Functions & Features



Menu operation, convenient and simple.

Hardness standards HL,HRB,HRC,HB,HV,HS all can be shown on the screen.

Small, portableand accurateSuitable for harsh operating environment, anti vibration, shock and

 electromagnetic interference.

Can calibrate HL,HRC,HB.

On the basis of Leeb hardness measurement principle, can be used to detect a variety of metal materials,

accurate measurement value stability.

Instantly showing the hardness measurement, and can be used in different formats conversion between

hardness of freedom.

Can be configured to 8 different impact device, automatic identification device for impact type, replaced

without the need to re-calibrate.

Large screen LCD display, menu operation, information rich, intuitive.

High brightness LED back-light, convenient in the dark.

Low power consumption: Auto sleep, automatic shutdown function of saving energy.

Ordinary alkaline battery, standby time 150 hours.



Application Fields:

The bearings and other parts, heavy workpiece, metal material, pressure vessel, failure analysis of turbine

 generator unit and equipment.

Mechanical or permanent assembly components have been installed, the test space is very narrow,

requires the original record regular test results.

Large workpiece within a wide range of more rapid test measurement site.



Measuring Materials:

Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy,

 copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel.



Technical Specification

Model

leeb110

Measuring Materials

ST, cast ST, CET Steel, Stainless, GC Iron, NC Iron, Cast Alum, Brass, Copper Etc.

Hardness parameter

HL, HRC,HRB, HS,HB,HV

Accuracy

Within±0.5%(HLD=800)

Display

LCD with backlight

Memory

1250 groups

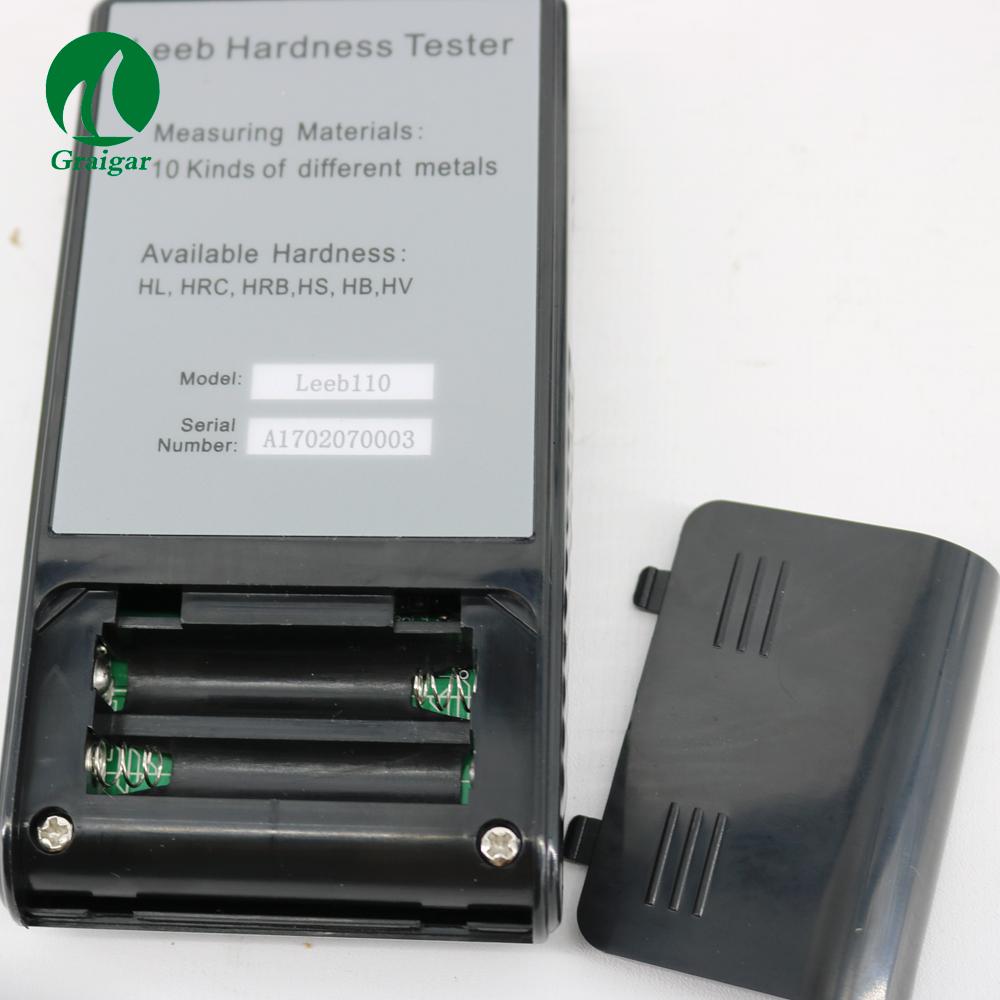

Battery type

2 AAA

Operating temperature

-20~+60 degree

Dimensions

129×68×25mm

Impact Device Type

D

Weight

230g

Standard Delivery

Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,High block and Certificate,Batteries,Test block with calibration certificate

Optional Accessories

Impact DC,D+15,DL,G,C,E(leeb120),Shaped support ring





Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2 days
