ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm ZBLF130

  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
  •  ZBL-F130 Concrete Structure Surface Crack Width Tester Accuracy 0.01mm  ZBLF130
Model No.︰ ZBL-F130
Brand Name︰ ZBL
Country of Origin︰China
Unit Price︰US $ 899 / pc
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev45678Next

Product Description

ZBL-F130 Concrete Structure Surface Crack Width Tester Test Accuracy 0.01mm

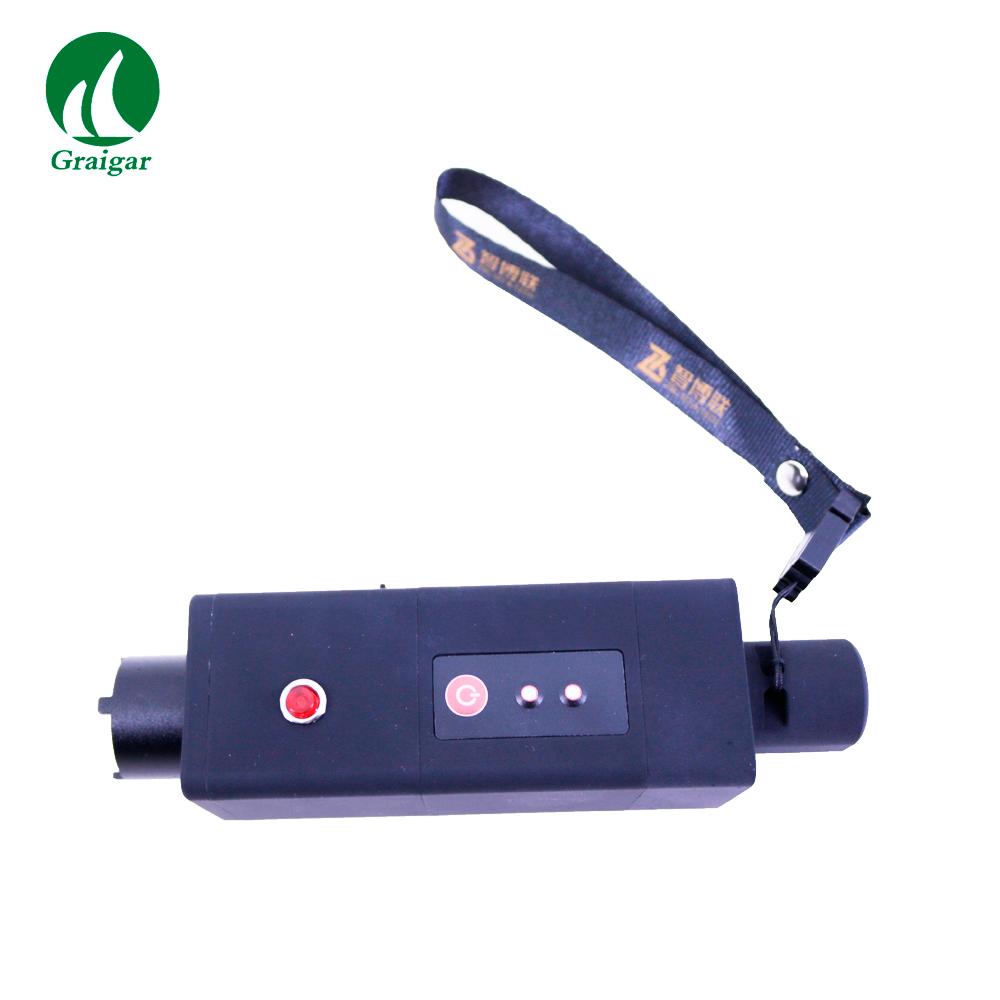

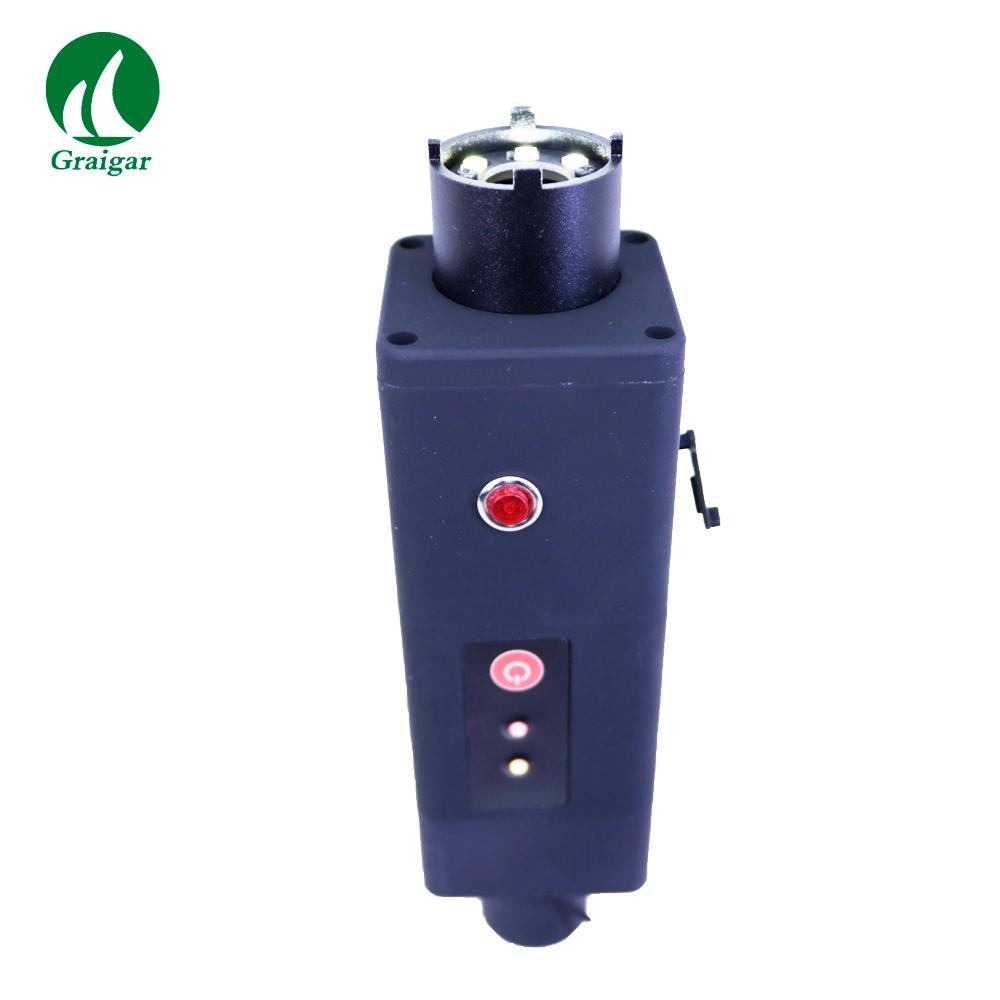

The micro camera is small in size, light in weight and easy to carry.



It is connected with the host by wireless mode to transmit the distance10mThe utility model is especially suitable for climbing and climbing ladder testing occasions;


It can realize automatic real-time interpretation of crack width and manual interpretation function;



The instrument has calibration function and the user can calibrate it with standard calibration board.



After the host connects to the network, it can automatically detect program updates and upgrade online;



The instrument is easy to operate, and it is easy to learn and easy to use. It can be learned in a few minutes from the needs of practical engineering testing;







Products Characteristics of ZBL-F130

l  It is very portable, and suitable for on-site measurement;

l  This instrument can read the real-time crack widths manually and automatically;

l  This instrument boasts calibration function, and users can calibrate it with standard part;

l  This instrument is user-friendly, and users can master it in several minutes.



Field of Use of ZBL-F130

This instrument can test the crack width on concrete structure surface, such as bridge, tunnel, wall, road and so on.



Technical Specifications of ZBL-F130

Item

Specification

Operating Mode

touch screen

Measurement Range(mm)

0~10

Test Accuracy (mm)

0.01

Working Environment

Temperature()

-10~55

Humidity(RH)

<90%

Image Format

BMP 800*600

Sensor Size(mm)

45*45*168

Sensor Weight(kg)

0.26*(with lithium battery)

Power Supply

Rechargeable battery

Edited by Mina

Price Terms︰EXW SHENZHEN
Payment Terms︰TT/LC/WU/PAYPAL
Packing︰CARTON
Lead Time︰2DAYS
