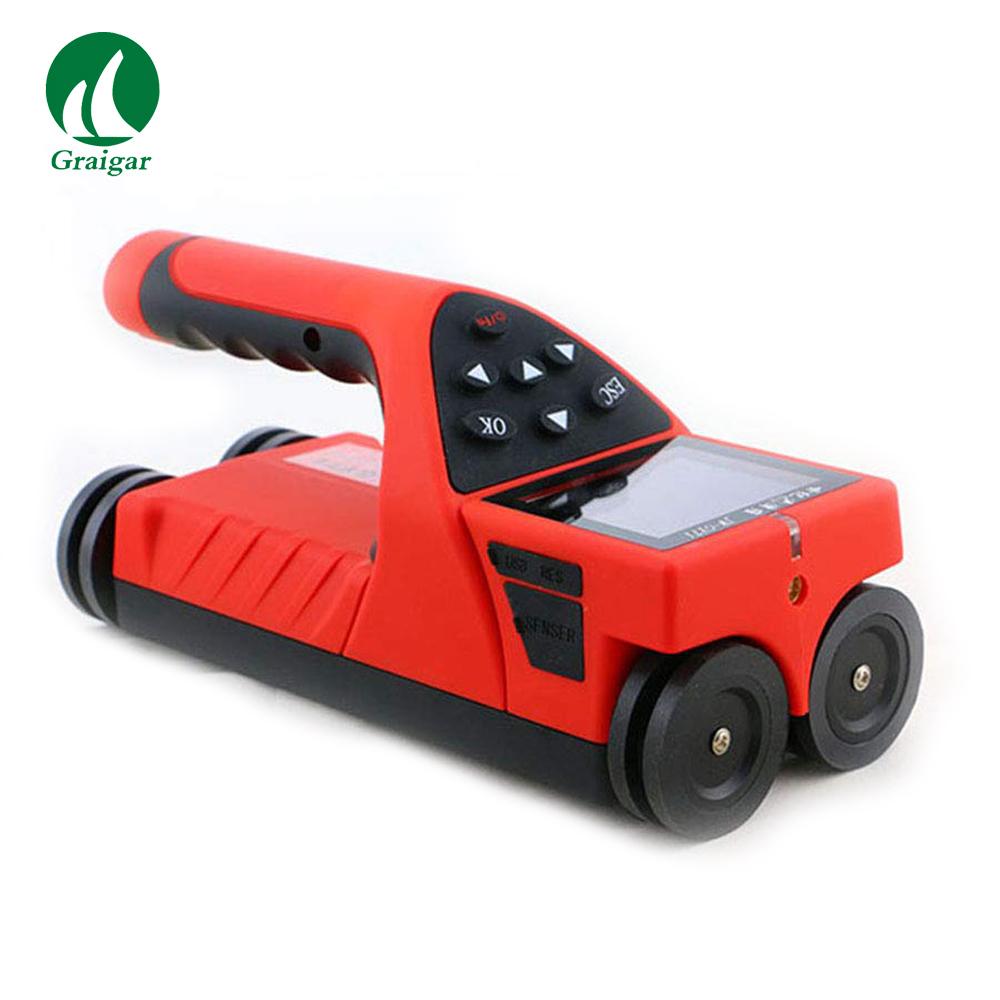

JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner

  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
  • JW-GY71 NDT Integrated Rebar Scanner Testing Steel Bar Scanner Concrete Scanner
Model No.︰JW-GY71
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 1599 / pc
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev56789Next

Product Description

JW-GY71 NDT Integrated Rebar Scanner Laser positioning Deep Concrete Scanner





Features:

investigation depth could reach 180mm

Single comprehensive probe

Peak scanning

Automatic identification of rebar positions

Laser positioning

Automatic reading spacing of bars

Machine software is complete.The report could be printed automatically connecting with computer

Grid scan of the rebar position

Profile scan of the rebar position



Technical Specifications
Bar diameter application range(mm) Φ6 - 50
Maximum permissible  error of Bar diameter ≤±1
Cover thickness  measuring range
The  first measuring range (mm) 6 - 90
The  second measuring range (mm) 7-180
The  maximum error of cover thickness
The  first measuring range (mm) The  second measuring range (mm) Accuracy
6 - 59 7 - 79 ≤±1
60 - 69 80 - 119 ≤±2
70 -90 120 - 180 ≤±4
Standard Delivery Optional Accessory
Main  unit, Software 1 Scan car
USB connecting  cable 1 Car  cable
Power charger 1
Manual 1
Warranty  card 1
Carry case 1




JW-GY71 (1)

Edited by Mina

Price Terms︰EXW
Payment Terms︰TT/LC/WU/PAYPAL
Packing︰CARTON
Lead Time︰2DAYS
Product Image
