BTT-2880R5 Infrared Belt Tension Tester Measurement Range 10~500Hz

  • BTT-2880R5 Infrared Belt Tension Tester Measurement Range 10~500Hz
  • BTT-2880R5 Infrared Belt Tension Tester Measurement Range 10~500Hz
  • BTT-2880R5 Infrared Belt Tension Tester Measurement Range 10~500Hz
  • BTT-2880R5 Infrared Belt Tension Tester Measurement Range 10~500Hz
  • BTT-2880R5 Infrared Belt Tension Tester Measurement Range 10~500Hz
Model No.︰BTT-2880R5
Brand Name︰Graigar
Country of Origin︰China
Unit Price︰US $ 279 / pc
Minimum Order︰1 pc
Share on:

 Total 9 Related Items
Prev45678Next

Product Description

BTT-2880R5 Infrared Belt Tension Tester Measurement Range 10~500Hz BTT-2880-R5



Features

* Using laser sensor, direct measurement, more convenient than mechanical sensor.
* The size of the split sensor is small, which is suitable for measuring in a narrow space.
* Two kinds of sensors selectable, the integrated sensor and the split sensor.
* Metric or imperial units can be used to display readings.
* With automatic power off function.

Measuring Principle

This tensiometer can measure the natural vibration frequency of the belt through the emission and reception of the laser, and then calculate the tension value of the belt by combining the input belt mass and the free belt length.

Specifications

Measurement Range 10~500Hz
Input Range Free Belt Length Max 99.99m
  Belt Mass Max 9.999kg/m
Digital Sampling Error <1%
Display Error ±1Hz
Total Error <5%
Operating Temperature Range +10~50°C
Transportation Temperature Range -5~70°C
Unit of Measurement Metric: m, kg/m, N
  Imperial: Inch, lbs/foot, lbf
Optical Path Measurement Distance 3~20mm
Depth of Split Sensor About 66mm
Power Supply 4x1.5V AAA (UM-4) Battery
Size Main Unit: 178x72x34mm
  Sensor: 124x21x12mm
Weight 180g (Not Including Battery)
Standard Accessories Main Unit

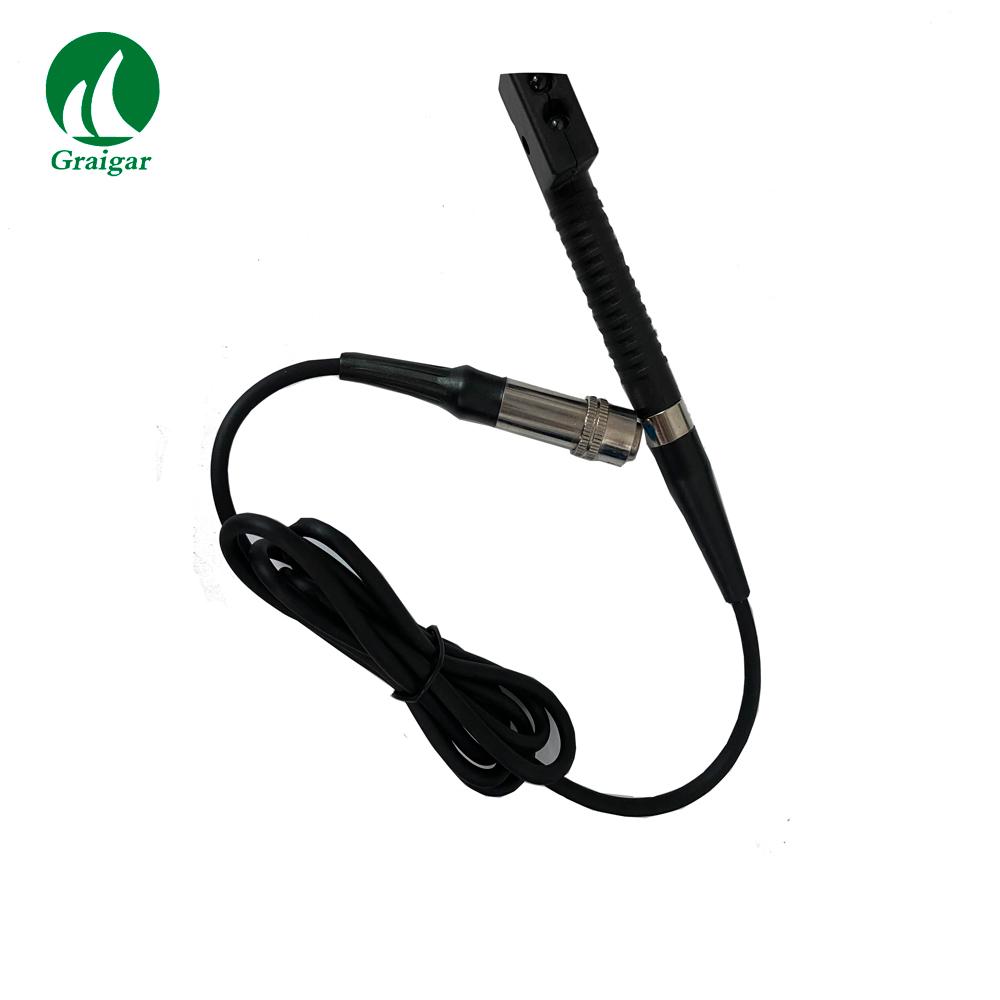

  Split Sensor
  Carrying Case (B04)
  Operation Manual



Edited by Mina

Price Terms︰EXW SHENZHEN
Payment Terms︰TT/LC/WU/PAYPAL
Packing︰EXPORT CARTON
Lead Time︰3DAYS
