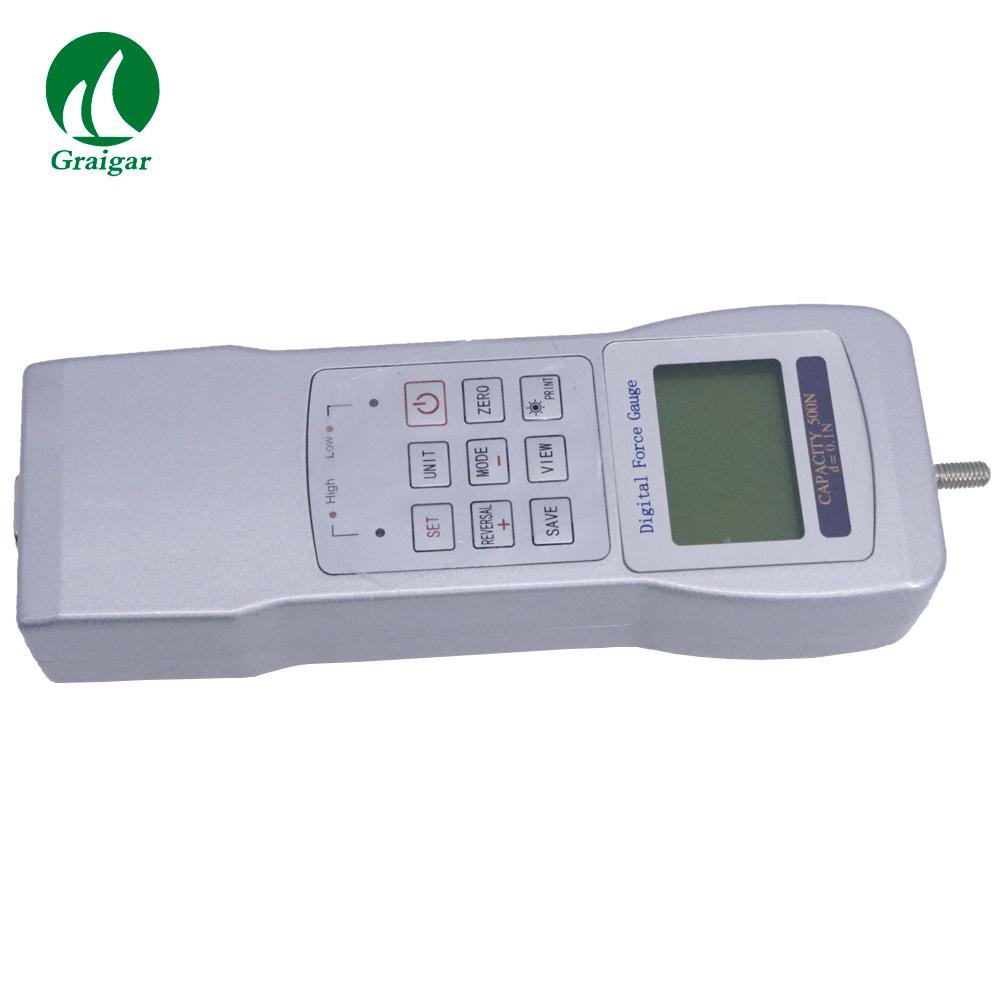

HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge

  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
  • HF-100/HF-200/HF-300/HF-500 Digital Force Gauge Pull&Push Gauge
Model No.︰HF-500
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 115 / pc
Minimum Order︰1 pc
Share on:

 Total 9 Related Items
12345Next

Product Description

HF-2/HF-3/HF-5/HF-10/HF-20/HF-30/HF-50/HF-100/HF-200 Portable Force Gauge Pull&Push Gauge



Description

The HF Force Gauge has advantages of high precision, easy operation and carry. What's more, it has kinds of testing modes, conveniencefor conner and it can store and input data to computer for statistical analysis aswell as constitutes testers with different functions,combination with test-beds and clamp. Users can input local acceleration of gravity value to make test more precise.

It can be used not only for simple measurement of tension/compression force but also used for various testing purpose; such as switch test, connector insertion/withdraw test, and fracture test, is efficient push pull testing equipment in a new generation.



Specification



Model

HF-2

HF-5

HF-10

HF-20

HF-50

HF-100

HF-200

HF-500

Capacity

2N

5N

10N

20N

50N

100N

200N

500N

Resolution

0.001N

0.001N

0.01N

0.01N

0.01N

0.1N

0.1N

0.1N

Sensor

Sensor Inside(S type)

Accuracy

+/-0.5%

Dimension

230x66x36mm (9.1x2.6x1.42 inch)

Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰3 days

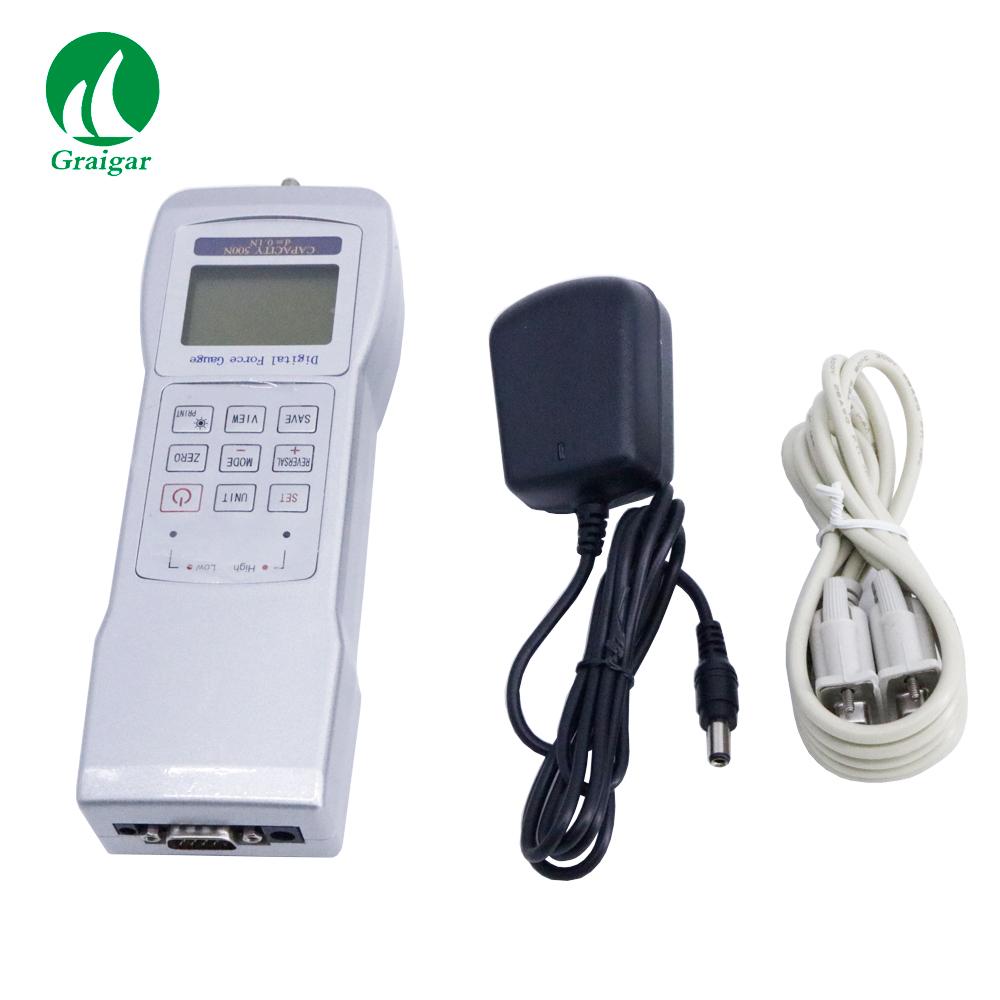

Product Image
