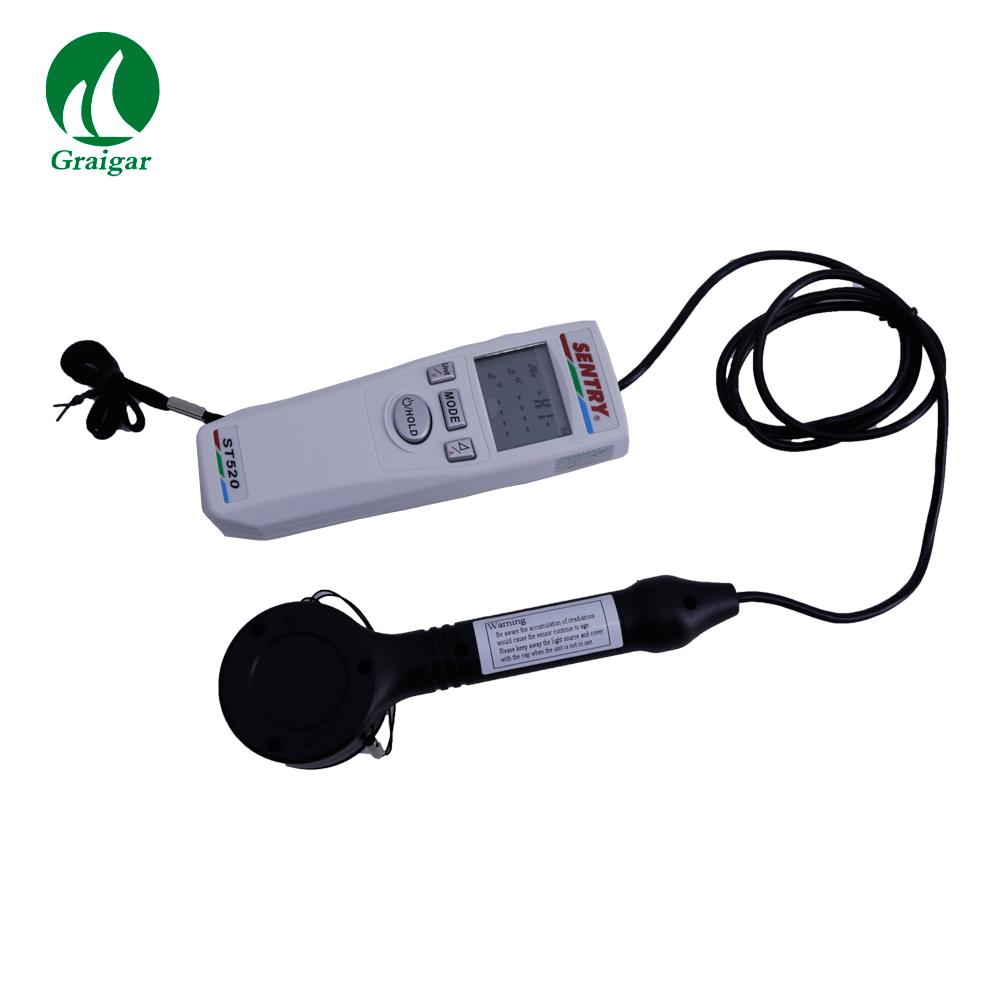

ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter

  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
  • ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter
Model No.︰ST520
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 330 / pc
Minimum Order︰1 pc
Share on:

 Total 9 Related Items
Prev12345Next

Product Description

ST520 Precision Digital LUX Meter Illuminometer Color Meter Chroma Light Meter Measuring Range 0~80,000 lx







Features



Precision instrument for light luminance and color coordinate

Meet CIE (International Commission on Illumination) photopic spectral response

Color temperature or Correlated color temperature

Custom reference value of color difference mode

Lux or foot-candle unit selection

Magnetic mount

Tripod socket






Specifications
Receptor Silicon photocell
Measuring Function

Illuminance: Ev (lx or fcd)

Color Coordinate: (x,y), (u',v') (CIE 1960)

Correlated Color Temperature: CT, Δuv

Color Difference:(ΔEv,Δx,Δy), (ΔEv,Δu',Δv'), (ΔEv,Δu'v'), (One set of reference color)

Measuring Range  Ev=0~80,000 lx (0~7,432 fcd); CT 99,990K Max.
Accuracy

(at 25°C/77°F, 60%RH)

Ev: ±(3%+2 digital) (3,000 lx, standard illuminant A measured)

x, y: ±0.02 (100 lx, RGB LED light)

Resolution

Ev: 0~9999 lx: 1 lx, Over 10000 lx: 10 lx;

0.0~999.9 fcd: 0.1 fcd, Over 1000 fcd: 1 fcd;

CT: 0~9999 K: 1 K, Over 10000 K: 10 K;

x, y: 0.001; u'v': 0.001

Response Time Approx. 1 sec.
Temperature Drift

Ev: ±(5%+2 digital) (3,000 lx, standard illuminant A measured)

x, y: ±0.008 (100 lx, RGB LED light)

Humidity Drift

Ev: ±(3%+2 digital) (3,000 lx, standard illuminant A measured)

x, y: ±0.005 (100 lx, RGB LED light)

Operation Temperature

0~50°C (32~122°F, <80%RH)

Store Temp.

-10~60°C (14~140°F, <80%RH)

Dimensions

Main Instrument: 140 X 49 X 29mm ( 5.51" x1.93"x1.14")

Sensor Probe: 165 X 50 X 36mm ( 6.50" x1.97"x1.42")

Weight

179g (6.31 oz.) without battery

Accessory

9V Battery, Instruction manual, Carrying Case





Applications



Color LED Lighting

Commerical Displays

Film and Television

Projection Halls

Warehouses

Art Galleries

Museums

Schools & Libraries

Theatres

Arenas

Stadiums

Office

Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2days
