TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M

  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
  • TDS-100H-M2 Portable Ultrasonic Flowmeter Liquid Flow Meter with M2 Transducer M
Model No.︰TDS-100H-M2
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 450 / pc
Minimum Order︰1 pc
Share on:

 Total 11 Related Items
Prev45678Next

Product Description

Handheld Ultrasonic liquid flow meter for various industrial field in the liquid flow-line measurement of calibration and inspection. Has high accuracy, consistency is good, battery-powered, simple operation and easy to carry and other features.







Product features:

Linearity:0.5%

Repeatability:0.2%

Accuracy:±1% of reading at rates>0.2 mps

Response Time:0-999 seconds, user-configurable

Velocity:±32 m/s

Rate Units:Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.

Liquid Types:Virtually all liquids

Security:Setup values Modification Lockout. Access code needs unlocking

Display:4x16 English letters

Transducer Cord Length:2x 5 meters

Power Supply:3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation.100V-240VAC for the charger

Data Logger:Built-in data logger can store over 2000 lines of data

Manual Totalizer:7-digit press-key-to-go totalizer for calibration

Case Size:100x66x20mm

Handset Weight:514g (1.2 lbs) with batteries



Sensors:

Fluid temperature: ≤ 160 Degrees

Flow range :0.05-32m ³ / sec

Dimension:100*40*35mm



Main technical indices:

Linearity

0.5%

Repeatability

0.2%

Accuracy

±1% of reading at rates>0.6 ft/s. ±0.5% with onsite calibration

Response Time

9999 seconds, userconfigurable

Velocity

±0.03  ±105 ft/s (±0.01  ±30 m/s), bidirectional

Pipe Size

5-700mm

Rate Units

Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.

Totaliser

7digit totals for net, positive and negative flow

Liquid Types

Virtually all liquids

Security

Setup lockout. Access code needed for unlocking

Display

4x16 English letters

Communication Interface

RS232C, baudrate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry.

Transducers

Model M2 for standard, other models for optional

Transducer Cable

Standard 2*5m

Power Supply

3 AAA NiH builtin batteries. When fully charged it will last over 10 hours of operation.100V240VAC for the charger

Data Logger

Builtin data logger can store over 2,000 lines of data

Manual Totalizer

7digit presskeytogo totalizer for calibration

Housing Material

ABS. Aluminum alloy protective case

Case Size

3.9x2.6x0.8 (100mmx66mmx20mm)

Handset Weight

1.2 lbs (514g) with batteries

Ying

Price Terms︰EXW
Payment Terms︰Paypal/Credit Card/TT
Packing︰Carton
Lead Time︰2days

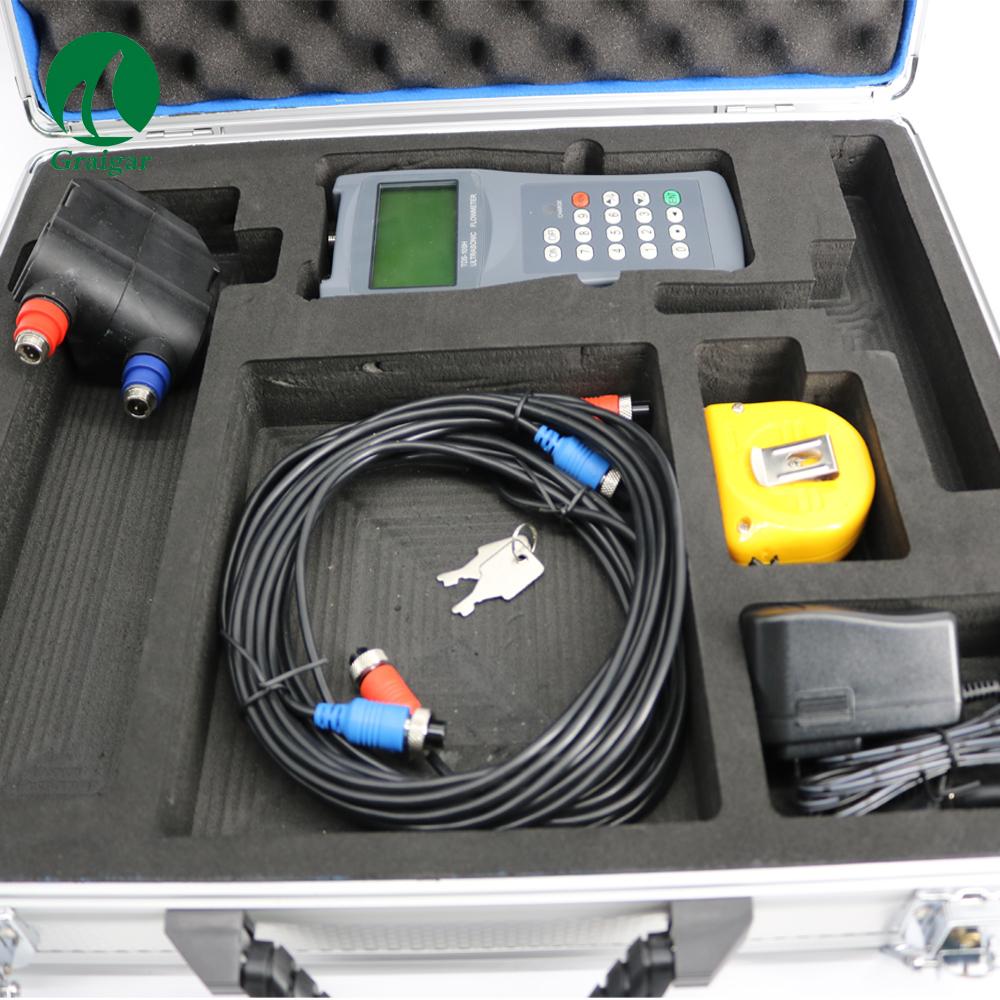

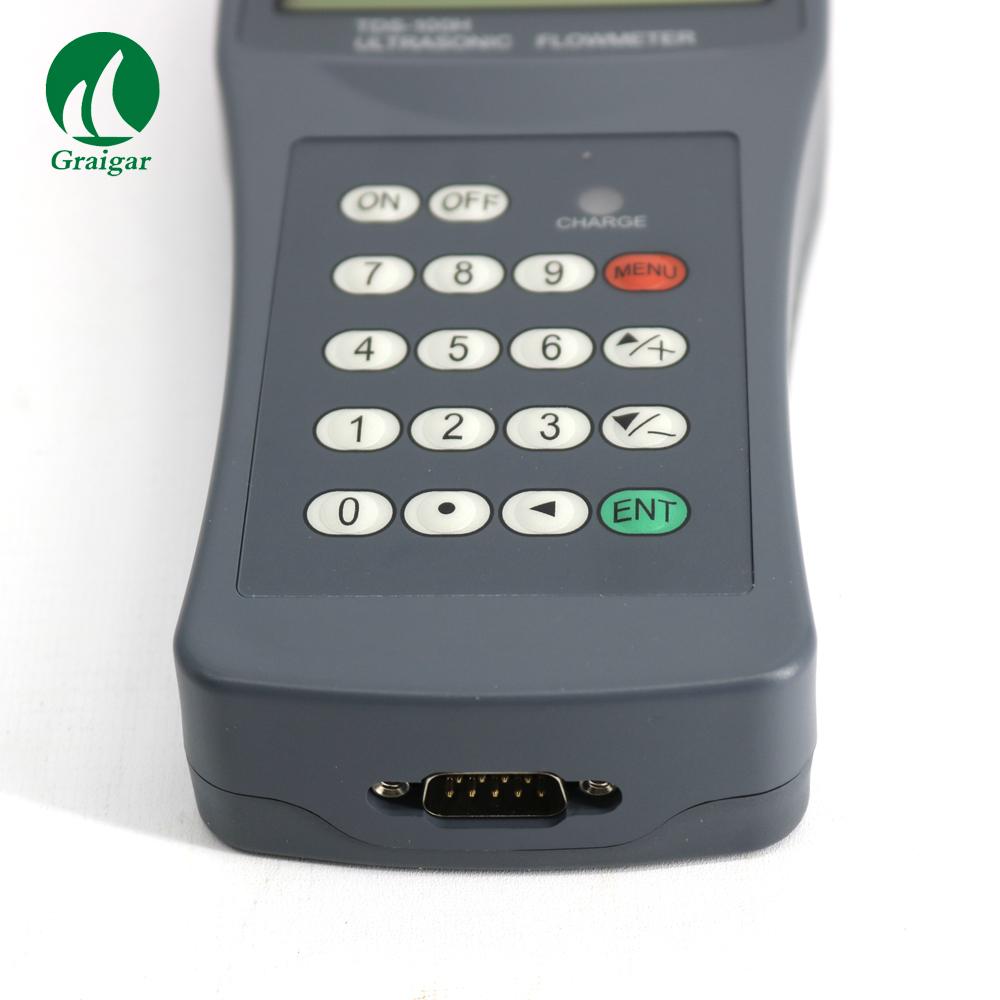

Product Image
