BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880

  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
  • BTT-2880 Belt Tension Tester Belt Tension Gauge Three Tension Indication BTT2880
Model No.︰BTT-2880
Brand Name︰Graigar
Country of Origin︰China
Unit Price︰US $ 235 / pc
Minimum Order︰1 pc
Share on:

 Total 10 Related Items
Prev678910Next

Product Description

BTT-2880 Belt Tension Meter Display LCD Belt Width Up to 36 mm Overload Alarm 750N







Spec

Mainly used in belt tension measurement, can also be applied to measure the tension of objects such as tapes, wires.Widely applied in industries of automobile, textile, cables, wires, plastic films.



Features

* This Belt Tension Tester used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement;

* It can be used to measure and adjust the tension of timing and auxiliary belts fitted to motor vehicles and other machines;
* Tension can be displayed in a variety of standard and manufacturers' units;
* Tension limits can be set into the instrument, either manually or automatically. During belt tension measurement and adjustment, the belt tension is displayed. A visual and audible indication of whether the tension is within or outside the set limits is also given. This avoids the user having to read the display whilst adjusting the belt;
* The selected tension limits, measurement units and calibration parameters are stored in The memory of the tester, and will be remembered even when the instrument is switched off and the batteries removed;
* Use USB/RS-232 data output to connect with PC;
* Provide Bluetooth data output choice;
Note: Tension checking should always be carried out in accordance with the vehicle manufacturers' instructions.

​Specificaions:



Display LCD
Tension Indicator Colored LED Indication of High,Low and OK
Measurement Range 0~750N(Newtons)
0~120lb(Pounds)
0~77kg(Kilograms)
0~114 Seems
Belt Width Up to 36 mm
Overload Alarm 750N
Maximum Load 850N
Resolution plusmn1(Least Significant Digit of Units)
Accuracy plusmn5% of full-scale
Data Output USB,RS-232,Bluetooth
Audible Warning Piezoelectric Sounder
Power Supply 4x1.5V AAA(UM-4)Battery
Dimensions 135x62x33 mm

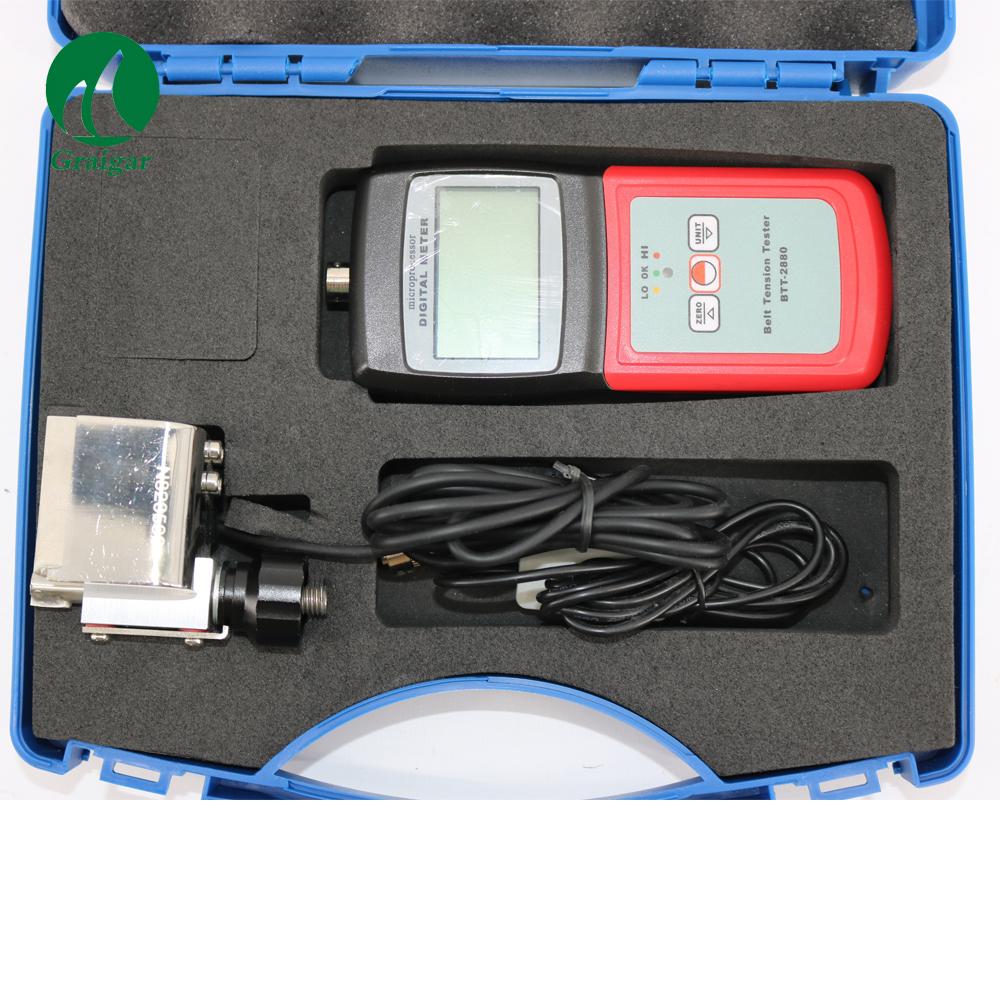

Standard Main Unit

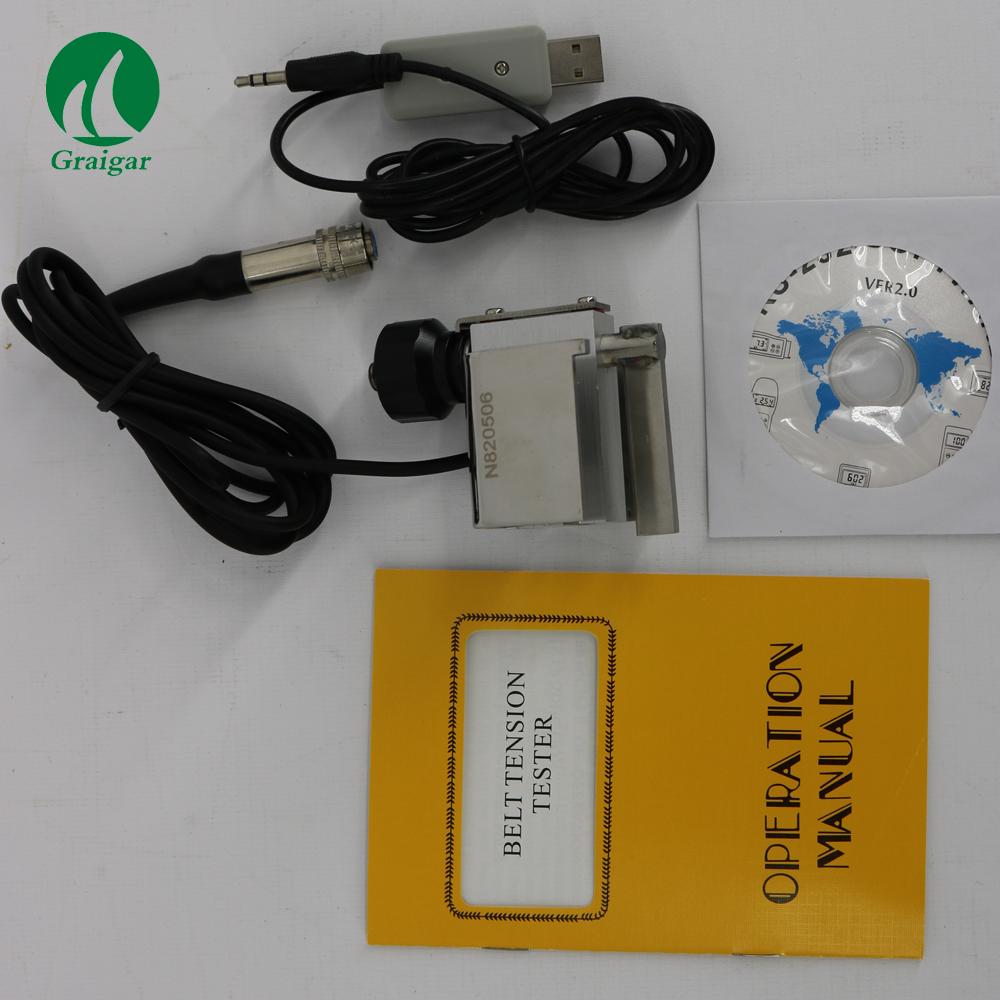

Accessories Measuring Head
Carrying Case(B04)
Operation Manual
Optional Accessories RS-232C Cable with Software
Bluetooth Data Adapter with Software

Edit by Mina

Price Terms︰EXW shenzhen
Payment Terms︰TT/WU/LC/PAYPAL
Packing︰export carton
Lead Time︰2days
