Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge

  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
  • Portable Applent LCR meter lcr 100khz High Frequency Digital Electric Bridge
Model No.︰AT826
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 320 / pc
Minimum Order︰1 pc
Share on:

 Total 7 Related Items
Prev34567Next

Product Description

High-cost performance







AT826, 825, 824 series handheld LCR Digital electric bridge adopts high performance 32-bit ARM microprocessor. True-color TFT liquid crystal display, keypad and touch screen double control. Using Li- battery supply power. USB communication. Switch in both English and Chinese. AT826, 825 handheld LCR digital meter have the highest configuration.

With the highest frequency of 100Khz, constant 100Ω source internal resistance, 1Vrms measurement voltage level, and 0.2% accuracy, make AT826, 825 have the excellent performance of both desktop instrument and portability of handheld.



AT826 Handheld Digital LCR Meter

SPECIFICATIONS

Parameters

L, C, R, Z

Monitoring

D, Q, θr, θd, X, ESR

Accuracy

0.2%

Frequency

100Hz, 120Hz, 1kHz, 10kHz, 100kHz

DisplayRange

L:  0.01μH-9999H                  C:  0.01pF - 9999μF

R,Z:   0.0001Ω - 99.99MΩ      D:0.0001 - 9.999

Q: 0.0001 - 999.9

θ(deg): -179.99° -179.99°    θ(rad) :-3.1416– 3.1416

Δ%:   -9999% - 9999

Source Resistance

100Ω

Range

Automatic and manual

Max Reading

Main parameters: 49999   Sub parameters: 49999

Signal Level

0.6Vrms

Speed

4 times/second, 1.5 times/second

Comparator

One group record, main parameters compare

Correction

Open and short, sweep frequency

Interface

Build-in Mini-USB interface (virtual serial), charging interface

Others

2.8 inches truecolor 16M TFT-LCD display,

touch screen, keypad lock and data hold function,

USB communication, compatible SCPI order set;

Switch in both English and Chinese,

adjustable back light,

automatic power off

GENERAL FEATURES

Adapter

Input: 100 – 240 V  50/60Hz 0.35A

Output: 9V 1A DC

Batteryparameters

8.4V, Li, 1400mAh rechargeable battery,

Charging Time

single continuous charging time: Max 200Min

Working Time

Light 30%, over 14 hours, Light 50% over 12 hours,

light 100%, over 9 hours

Dimension & Weight

90 (width)*190 (height)*31(depth) mm

Gross Weight: 400g

ORDING INFORMATION

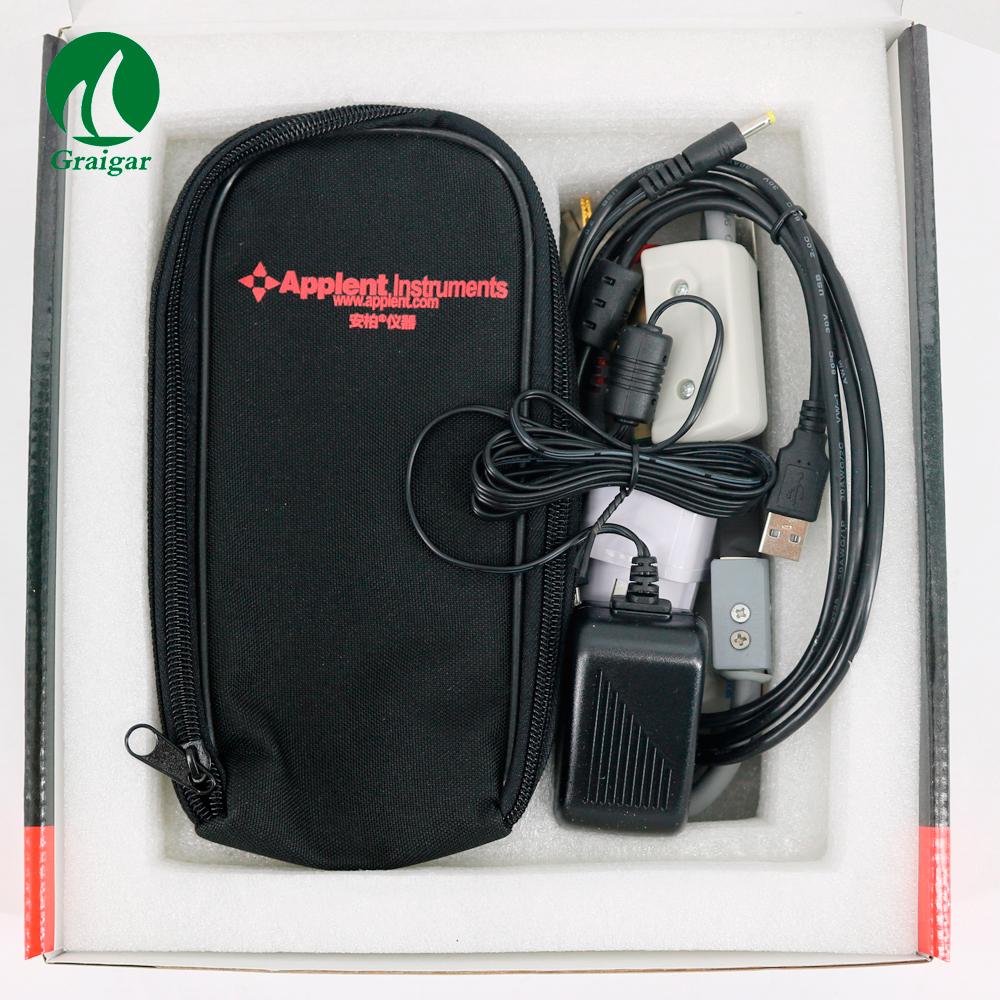

Accessories

ATL501B: Four-terminal Kelvin Clips

ATL909: DC Adapter

ATL805: Li battery

ATL105Mini-USB communication cable

ATS826: Data Acquisition Software

Price Terms︰EXW shenzhen
Payment Terms︰TT / LC / WU / PAYPAL
Packing︰export carton
Lead Time︰2 days
