DSO1202B Digital Handheld Oscilloscope/Multimeter 2 Channels 200MHz 1Gsa/S

DSO1202B Digital Handheld Oscilloscope/Multimeter 2 Channels 200MHz 1Gsa/S

Model No.︰DSO1202B

Brand Name︰GRAIGAR

Country of Origin︰China

Unit Price︰US $ 630 / pc

Minimum Order︰1 pc

Inquire Now

Product Description



  • High bandwidth 60MHz-200MHz Oscilloscope,1GS/s sample rate, and 6000 counts DMM with analog bargraph

  • 1M memory depth

  • High refresh rate (2500 frames)

  • Large 5 6 inch TFT color LCD display£¬High resolution(640*480£©, dual-window design --More clear, more detailed

  • One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform

  • Easy-to-use pop-up menu with built-in multi-language help system

  • 23 automatic measurements

  • Waveform math: add, subtract, multiply, and divide

  • Store and recall over

  • Automatic cursor tracking measurements

  • XY Mode

  • Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems

  • Waveform recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames

  • Pass-Fail function compares a stored waveform to an unknown input

  • Average mode for smoothing waveforms

  • Square wave output (2V, 1kHz) for probe adjustment

  • USB host/device 2 0 full-speed interface ,support removeable disk, LAN Optional ,easy to control by PC or long-distance

  • Dimensions (mm):240(L)x165(W)x50(H), be carried easily

  • Labview\VB\VC second design instance

  •



Specifications:



Model

DSO1202B

DSO1102B

DSO1062B

Oscilloscope mode

Bandwidth

200MHz

100MHz

60MHz

Real-time Sample Rate

1GSa/s

Equivalent Sample Rate

25GSa/s

Record Length(Sample Points)

Single-channel: Maximum 1M; Dual-channel:Maximum 512k

SEC/DIV Range

2nS/div-2000S/div (in a 2, 4, 8 sequence)

Delay Time Accuracy

500ps

Vertical

A/D Converter

8-bit resolution

VOLTS/DIV Range

2mV/div¡«5V/div at input BNC

Position Range

±50V(5V/div),±40V(2V/div¡«500mV/div),2V(200mV/div¡«50mV/div)±400mV(20mV/div¡«2mV/div)

Rise Time at BNC

≤1.7ns

≤3.5ns

≤5.8ns

DC Gain Accuracy

±4% for Sample or Average acquisition mode, 5mV/div to 2mV/div
±3% for Sample or Average acquisition mode, 5V/div to 10mV/div

Trigger

Trigger Sensitivity
(Edge Trigger Type)

DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full
EXT£¨Typical£© 200mV from DC to 40MHz
EXT/5£¨Typical£© 1V from DC to 40MHz
AC: Attenuates signals below 10Hz

HF Reject: Attenuates signals above 80kHz

LF Reject: Attenuates signals below 150kHz

Noise Reject: Reduces trigger sensitivity

Trigger Level Range

CH1,CH2: ±8 divisions from center of screen
EXT: ±1.2V EXT/5: ±6V

Trigger Level Accuracy,
typical (Accuracy is for signals having rise and fall times ≥20ns)

CH1,CH2: ±(0.3div×V/div) (within ±4 divisions from center of screen)


Holdoff Range

100ns-10s

Trigger Type

Edge

Trigger on the rising or falling edge

Pulse Width

Trigger (when >,<,=,≠) on positive or negative pulses
Pulse Width Range: 20ns-10s

Video

Trigger on an NTSC, PAL, or SECAM standard video signal
Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM)

Slope

Trigger (when >,<,=,≠) on a positive or negative slope
Set Time: 20ns–10s

Overtime

from the rising or falling edge
Set Time: 20-10s

Alternate

Internal trigger on edge, pulse width, video or slope

Measurement

Cursors

Manual: The difference between voltage cursors ¡÷V; the difference between time cursors ¡÷T; 1/¡÷T calculated by Hz.
Tracing: The voltage and time at a waveform point

Automatic

Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width

Meter Mode

Max.Resolution

6,000 Counts

DMM Testing Modes

Voltage, Current, Resistance, Capacitance,Diode & Continuity

Max. Input Voltage

AC: 600V, DC: 800V

Max. Input  Current

AC: 10A, DC: 10A

Input Impedance

10 MΩ

Display

Type

Right angle 5.6 16-digit color LCD

Resolution

640*480 dots

Contrast

16 gears, with the progress bar to show adjustment

Interface

USB host and USB slave, Lan Optional

Power Supply

Voltage

 DC Input:12--17VDC, 1500mA

Mechanical

Size

245 x 163 x 52 (mm)



Price Terms︰ EXW shenzhen

Payment Terms︰ Paypal/Credit Card/TT/Western Union

Packing︰ export carton

Lead Time︰ 2days

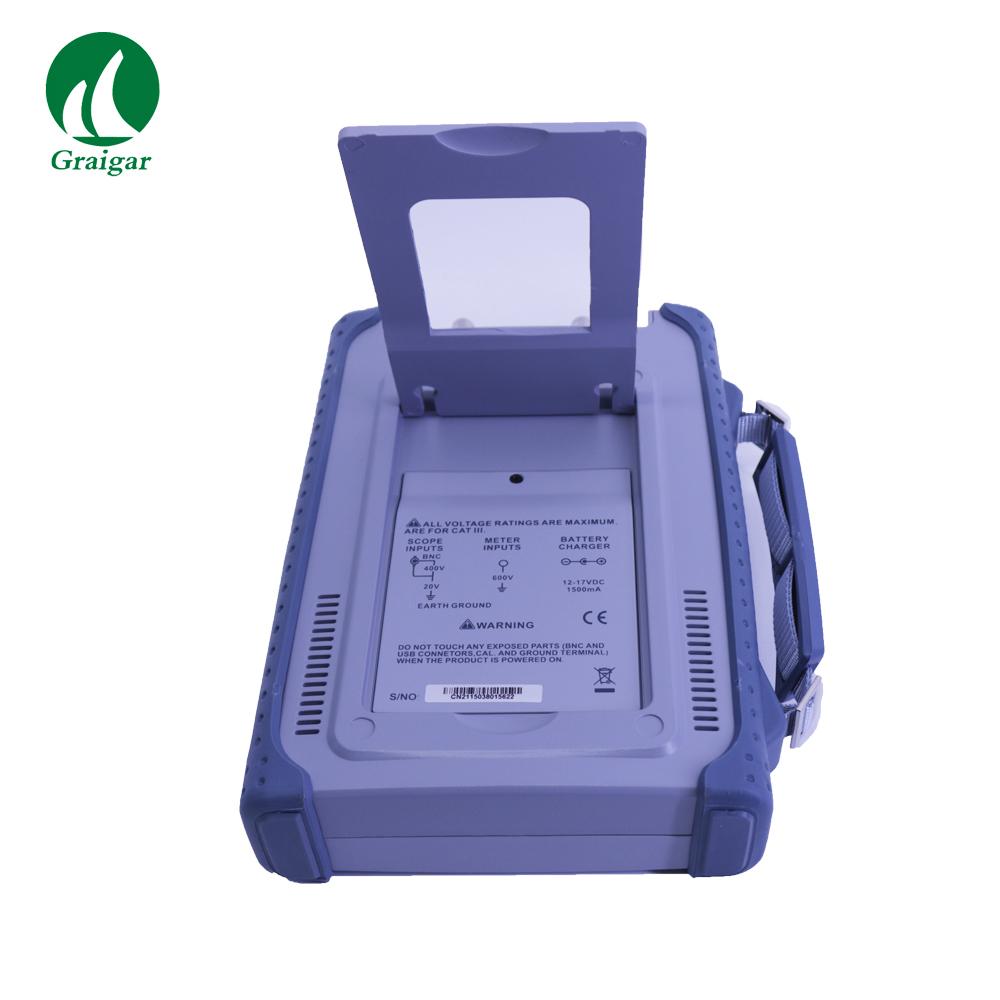

Product Image
