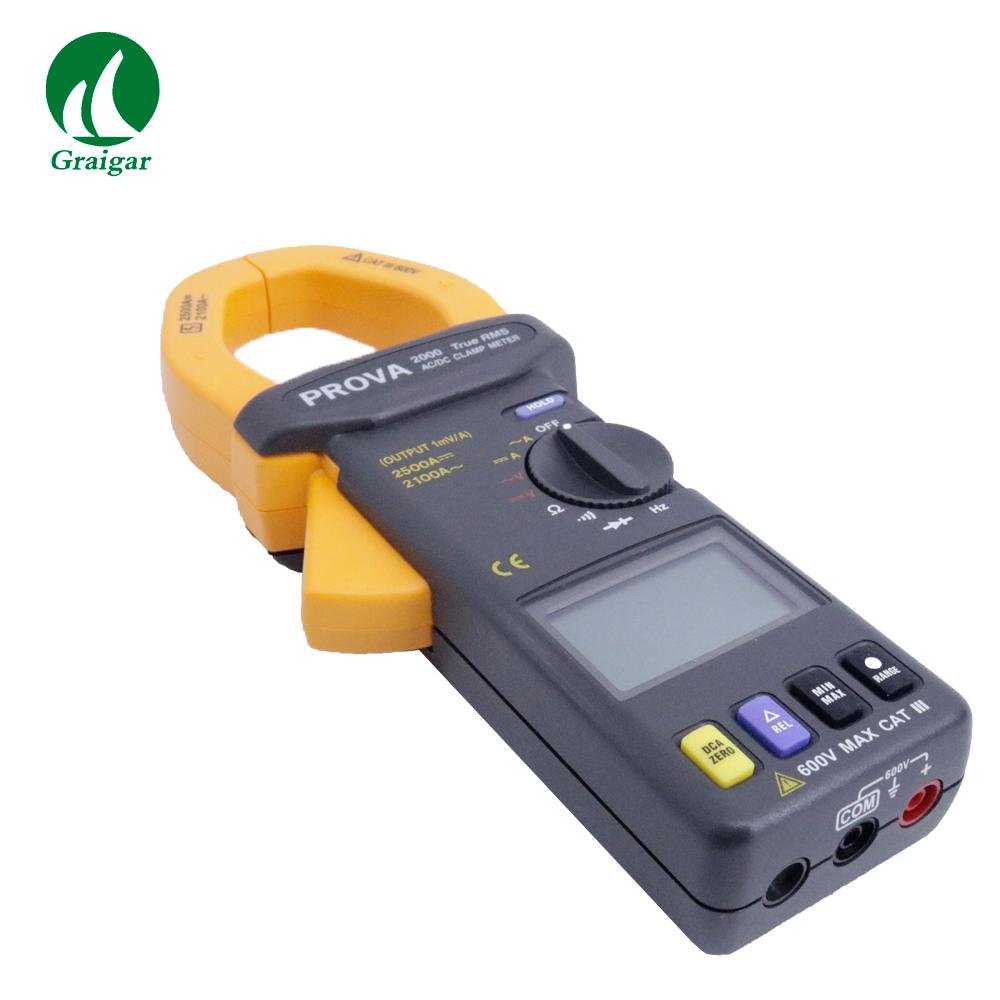

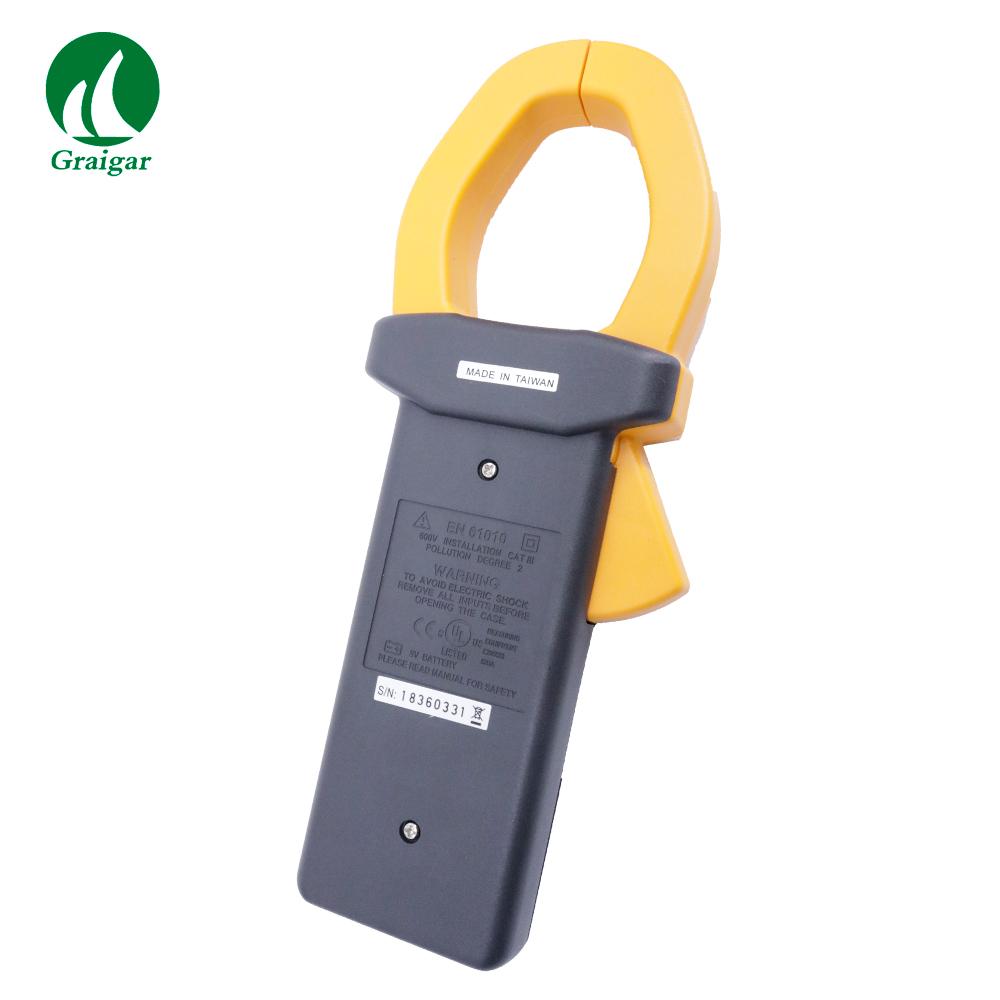

PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester

  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
  • PROVA2000 Portable True RMS Digital AC Clamp Meter Power Harmonic Tester
Model No.︰PROVA2000
Brand Name︰PROVA
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 21 Related Items
Prev1011121314Next

Product Description

Features:

- DC/AC 2000A

- Cable f 55mm, Bus Bar 72mm(D) x 22mm(W)

- True RMS (PROVA-2000)

- Average Sensing (PROVA-2003)

- DCA One Touch Zero

- Auto Range A, V, W

- Continuity

- Max/Min/Hold

- Relative Measurement



Specifications:

DC Current (Autorange & Manual)

Range

Resolution

Accuracy

Overload Protection

400A

0.1A

+/- 1.5% +/- 3dgts

3000A

2500A

1A

+/- 1.5% +/- 3dgts

3000A

AC Voltage (Autorange & Manual, True RMS for PROVA-2000, Input Impedance 5M W for all ranges)

Range

Resolution

Accuracy

Overload Protection

4V

0.001V

+/- 1.5% +/- 5dgts

800VAC

40V

0.01V

+/- 1.5% +/- 5dgts

800VAC

400V

0.1V

+/- 1.5% +/- 5dgts

800VAC

600V

1V

+/- 1.5% +/- 5dgts

800VAC

Resistance ( ) (Autorange & Manual, Open Circuit Voltage<=0.5V)

Range

Resolution

Accuracy

Overload Protection

400

0.1

+/- 1.5% +/- 3dgts

600VAC

4K

1

+/- 1.5% +/- 3dgts

600VAC

40K

10

+/- 1.5% +/- 3dgts

600VAC

400K

100

+/- 1.5% +/- 3dgts

600VAC

4M

1K

+/- 1.5% +/- 3dgts

600VAC

40M

10K

+/- 1.5% +/- 3dgts

600VAC

Audible Continuity

Range

Continuity Beeper

Open Circuit Voltage

Overload Protection

400

<=40 (approx.)

<=0.5V

600VAC

Hz

Range

Resolution

Accuracy

Sensitivity

Overload Protection

100-1000KHz

0.01-100Hz

+/- 0.5% +/- 2dgts

10mV/0.1V/1V

AC 600V

Diode Test

Range

Resolution

Accuracy

Overload Protection

3V

0.001V

+/- 2.5% +/- 5dgts

600VAC

Current Analog Output (Overload Protection 600V)

Range

Output

Accuracy

Overload Protection

400A

1mV/A

+/- 2.5% +/- 0.5A

600VAC

2500A

1mV/A

+/- 2.5% +/- 5A

600VAC

DC Voltage (Autorange & Manual, Overload Protection 800VAC for all ranges)

Range

Resolution

Accuracy

Input Impedance

400mV

0.1mV

+/- 1.0% +/- 3 dgts

10M W

4V

0.001V

+/- 1.0% +/- 3 dgts

5M W

40V

0.01V

+/- 1.0% +/- 3 dgts

5M W

400V

0.1V

+/- 1.0% +/- 3 dgts

5M W

600V

1V

+/- 1.0% +/- 3 dgts

5M W

AC Current (Autorange & Manual, True RMS for PROVA 2000)

Range

Resolution

Accuracy

Overload Protection

50/60Hz

40-400Hz

400A

0.1A

+/- 1.5% +/- 5dgts

+/- 2.0% +/- 5dgts

3000A

2100A(0-1000)

1A

+/- 2.0% +/- 5dgts

+/- 2.5% +/- 5dgts

3000A

2100A(1000-2100)

1A

+/- 2.5% +/- 5dgts

+/- 3.0% +/- 5dgts

3000A

Gerenal Specification

Jaw Opening

Cable f 55mm
Bus Bar 65mm(D)x24mm(W)

Power Source

One 006P 9V or IEC 6F22
or NEDA 1604 Battery

Operating Temperature

0 C to 40 C (32 F to 104 F )

Operating Humidity

Less than 80% RH

Dimensions

271mm(L)x112mm(W)x46mm(H)
10.7"(L)x4.4"(W)x1.8"(H)

Weight

647g/22.8 oz (Battery included)



Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰2 days
