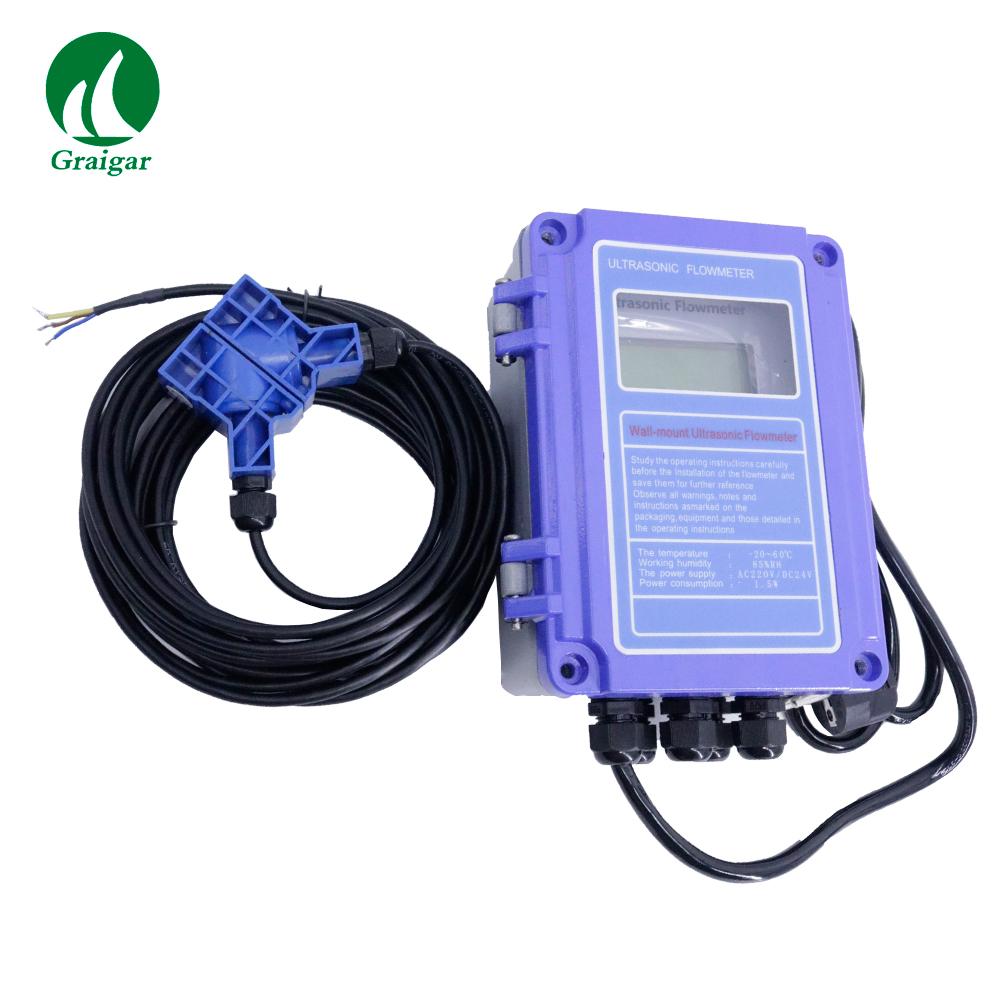

Wall Mounted MHC3000B Ultrasonic Flowmeter MHC-3000B+L2
Ultrasonic flowmeter - fixed wall mounted for a variety of long-term online measurement of the liquid, the host and the sensor separately installed, the sensor installed in the need to measure the pipeline, the host and the sensor with ultrasonic flowmeter dedicated cable connection, is currently the most widely used ultrasonic Flowmeter.
Temperature sensor, achieving hot (cold) metering function, the amount of hot (cold) for real-time monitoring.
Features:
1.High reliability: the use of low-voltage multi-pulse balanced transmission circuit, measurement accuracy, service life and high reliability
2.Wide range of measurement: the use of different types of sensors, can achieve caliber DN15 ~ DN6000mm pipe flow measurement
3.Data interface: RS485 serial interface, through the PC computer to upgrade traffic, support MODBUS protocol
4.Anti-interference ability: the use of dual-balanced signal differential transmission, receiving circuit, effectively resist the inverter, TV tower, high voltage lines and other strong interference
5.Powerful memory function: automatic memory before 128 days, the first 10 years of accumulated calories and traffic, the cumulative date and so on can be read through the MODBUS protocol
6.Heat measurement: with the temperature sensor, can be achieved heat (cold) measurement
Parameter:
| Category |
Performance parameters |
| Host |
Principle |
Ultrasonic time difference principle, 4 bytes IEEE754 floating point operation. |
| Accuracy |
better than ± 1%. |
| Display |
Can be connected to 2 × 10 backlit characters or 2 × 20 character LCD display, support in the English, Italian three in that language. |
| Signal output |
1 channel 4 ~ 20mA current output, impedance 0 ~ 1K, accuracy 0.1%.
1 way OCT pulse output (pulse width 6 ~ 1000ms, default 200ms).
1 relay output. |
| signal input |
3 channels 4-20mA current input, precision 0.1%, can collect temperature, pressure, level and other signals.
Can be connected to three-wire PT100 platinum resistance, to achieve heat measurement. |
| Data interface |
Isolated RS485 serial interface, through the PC computer to upgrade the flow meter, support modbus and other protocols. |
| Pipe |
Pipe material |
Steel, stainless steel, cast iron, cement pipes, copper, PVC, aluminum, glass and other all-dense pipe, allowing a lining |
| Pipe diameter |
50-700mm |
| Measuring medium |
Type |
Water, sea water, industrial sewage, acid and alkali, alcohol, beer, all kinds of oil can carry a single uniform ultrasonic liquid |
| Temperature |
(-30--180) ℃ ultra-high temperature to be customized |
| Turbidity |
10000ppm and the bubble content is small |
| Flow rate |
0 ~ ± 10m / s |
| Working environment |
Temperature |
Host: -20 ~ 60 ℃; Flow sensor: -30 ~ 180 ℃ |
| Humidity |
Host: 85% RH; Flow sensor: can be flooded work, water depth ≤ 2m (Note: after the sensor filling) |
| Power supply |
Built-in capacity of 2000mA rechargeable Ni-MH battery, each time fully charged for more than 15 hours of continuous use, the use of power adapter, can achieve uninterrupted measurement. |
| Dedicated cable |
Custom twisted pair, under normal circumstances limited to 50 meters; use RS485 communication, transmission distance of up to kilometers. |
There are kinds of transducers for choosing, please feel free to contact us for the details.
