NR20XE High Precision Color Analyzer Precision Chromatic Meter

  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
  • NR20XE High Precision Color Analyzer Precision Chromatic Meter
Model No.︰NR20XE
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 700 / pc
Minimum Order︰1 pc
Share on:

 Total 10 Related Items
Prev12345Next

Product Description

 NR20XE High Precision Color Analyzer Precision Chromatic Meter Measuring Aperture Φ20mm







Product Introduction

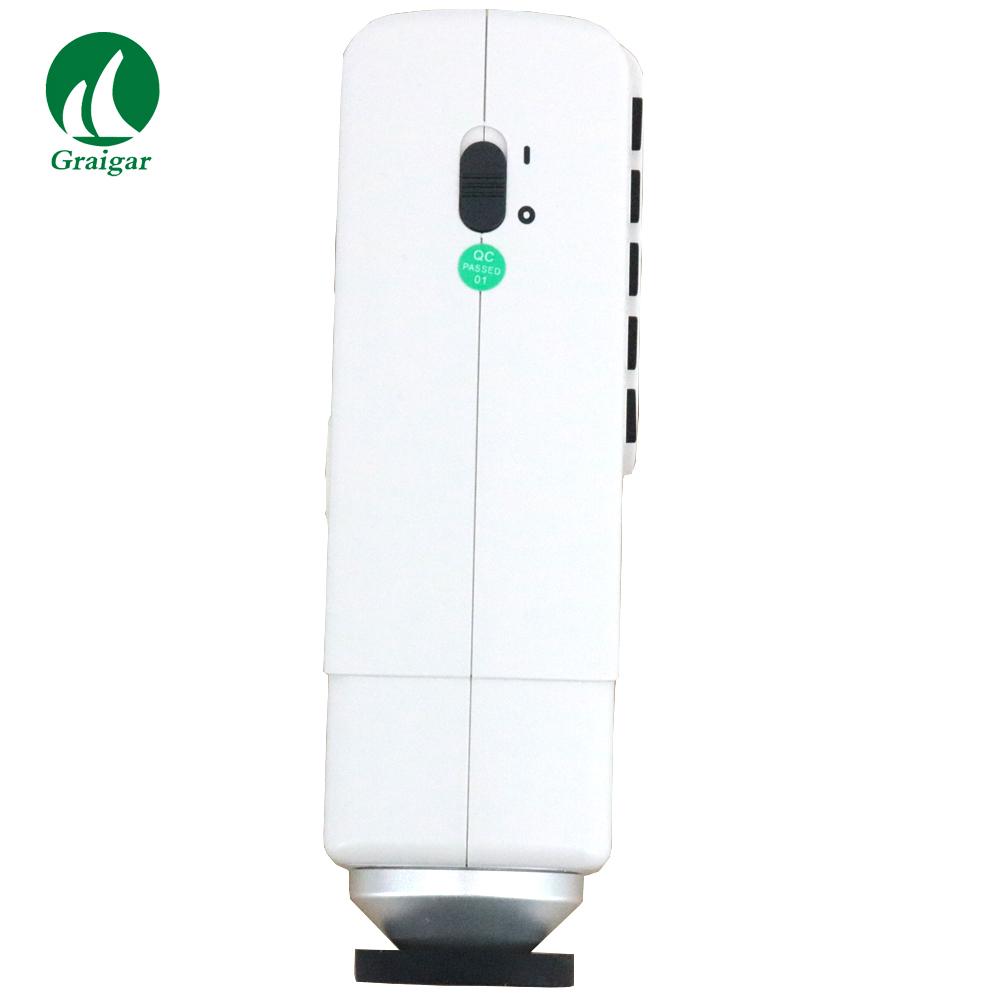

3nh NR20XE is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR20XE measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR20XE will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore, NR20XE is widely used in color field.




QC Department

NR20XE can meet quality control requirements in plastic (PET,PE,PP,PTA,ABS,EVA particles and powder), color steel plate, coating, textile, fluorescent material, denim, medicine and food industries, etc. It can help to control product color difference, improve product competitiveness, reduce enterprises’ loss and control production cost.




Applications

Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.





Specification

 3nh  NR20XE Precision Colorimeter
 Illuminating/Viewing Geometry 45°/0°
Measuring Aperture  Φ20mm
 Special Function Especially suitable for testing surface stripe and wet products
 Locating Illumination Locating/Cross Locating
 Detector Silicon photoelectric diode
 Locating Illuminating Locating/Cross Locating
 Color Space CIEL*a*b*C*h*; CIEL*a*b*; CIEXYZ
 Color Difference Formula E*ab; L*a*b*; E*C*h*
Light Source   D65
Light Source Device  LED blue light excitation
Errors Between Each ≤0.50ΔE*ab
Equipment
 Storage 100pcs standards 20000pcs samples
 Repeatability

Standard deviation within ΔE*ab 0.08 Average

of 30 measurements of standard white plate

 Weight  500g
 Dimension 205×67×80 mm
 Power source Rechargeable lithium-ion battery 3.7V@3200mAh
 Lamp Life 5 years, more than 1.6 million measurements
 Charging Time First charging time is 8 hours--100% electricity
 PC Software CQCS3 Software
 Printer (optional) Miniature thermal printer





ProductAdvantages

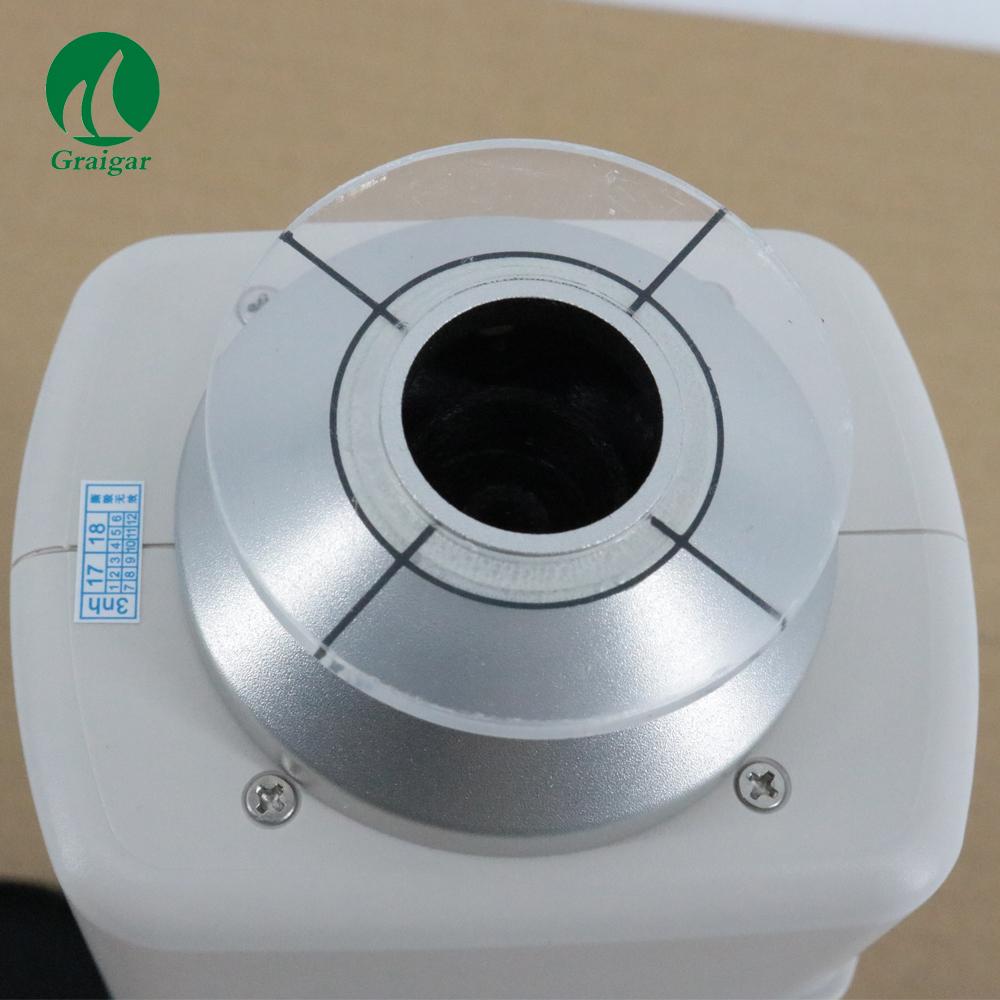

1. 20mm measuring aperture can test objects with surface stripe accurately.
2. Vertical structure can test wet surface object or can be soaked into the liquid for testing.
3. Double Locating: Illuminating locating and cross locating.
4. Adopting new optical path and dynamic integration time can test more stable and accurate.
5. 45°/0° optical geometry structure, considering the effects of surface features.
6. Annular illumination design, suitable for polarizing material.
7. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
8. Configuring CQCS3 software -- connect PC computer to realize more functions.

Price Terms︰EXW shenzhen
Payment Terms︰Paypal/Credit Card/TT/Western Union
Packing︰export carton
Lead Time︰3 days
