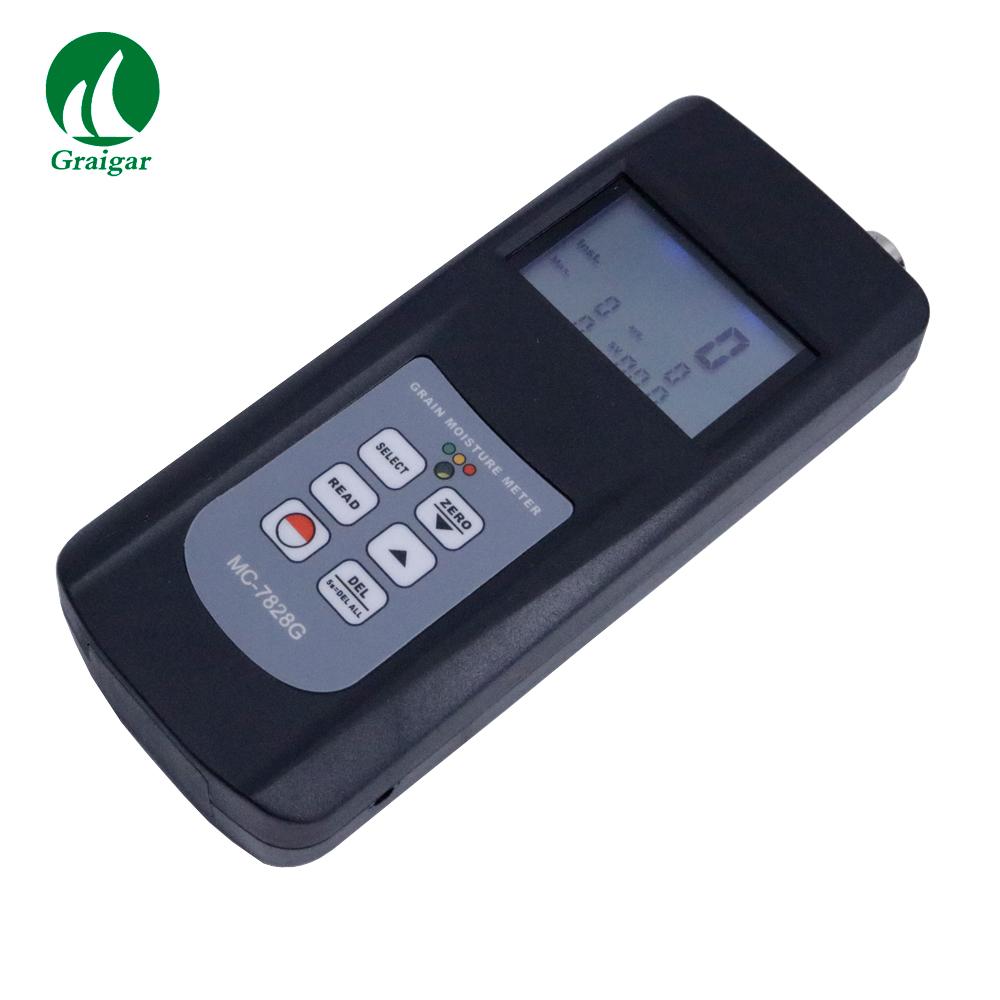

Grain Moisture Meter MC-7828G Cup type Digital Moisture Tester MC7828G
Used for fast and accurate measurement of moisture in the process of allotment, acquisition, storage, machining of packed grains, feedstuff, powder.
Features
* Able to measure grains up to 22 species.
* The cup type measurement causes small error.
* Wide measuring range.
* With storage and statistical functions. Can store 240 groups of measurements.
* Two presentations, digital display and color coded LED indication.
* Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Specification
| Model |
MC-7828G |
MC-7825G |
MC-7821 |
| Grains |
22 Kinds |
36 Kinds |
4 Kinds |
| Display |
LCD |
| LED Indicator |
Green LED Represents a Safe,Air-dry State |
----- |
| Yellow LED Represents a Borderline State |
----- |
| Red LED Represents a Damp State |
----- |
| Range |
Moisture |
0~50% |
7~30% |
8~20% |
| Tempreature |
----- |
----- |
-10~55ºC |
| Resolution |
0.1 |
| Battery Indicator |
Low Battery Indicator |
| Accuracy |
Moisture |
±(0.5%n+0.5) |
±0.6%/±0.8%/±1% |
| Tempreature |
----- |
±0.8ºC |
| Operatin |
Temperature |
0~50ºC |
0~50ºC |
| Conditions |
Humidity |
<90%RH |
<80%RH |
| Power Supply |
4x1.5V AAA Size(UM-4)Battery |
4x1.5V AA Size |
| (UM-3) |
| Battery |
| Dimensions |
Main Unit |
150x65x30mm |
165x62x26mm |
178x68x39mm |
| Sensor |
175x76x76mm |
368x44x25mm |
368x44x26mm |
| Weight(Not Including Batteries) |
690g |
320g |
420g |
| Standard |
Main Unit |
√ |
| Accessories |
Probe |
----- |
√ |
√ |
| |
Cup |
√ |
----- |
----- |
| |
Carrying Case |
B04 |
B04 |
B01 |
| |
Manual |
√ |
| Optional Accessories |
RS-232C Data Cable with Software,Bluetooth Data Adapter with Software |
----- |
