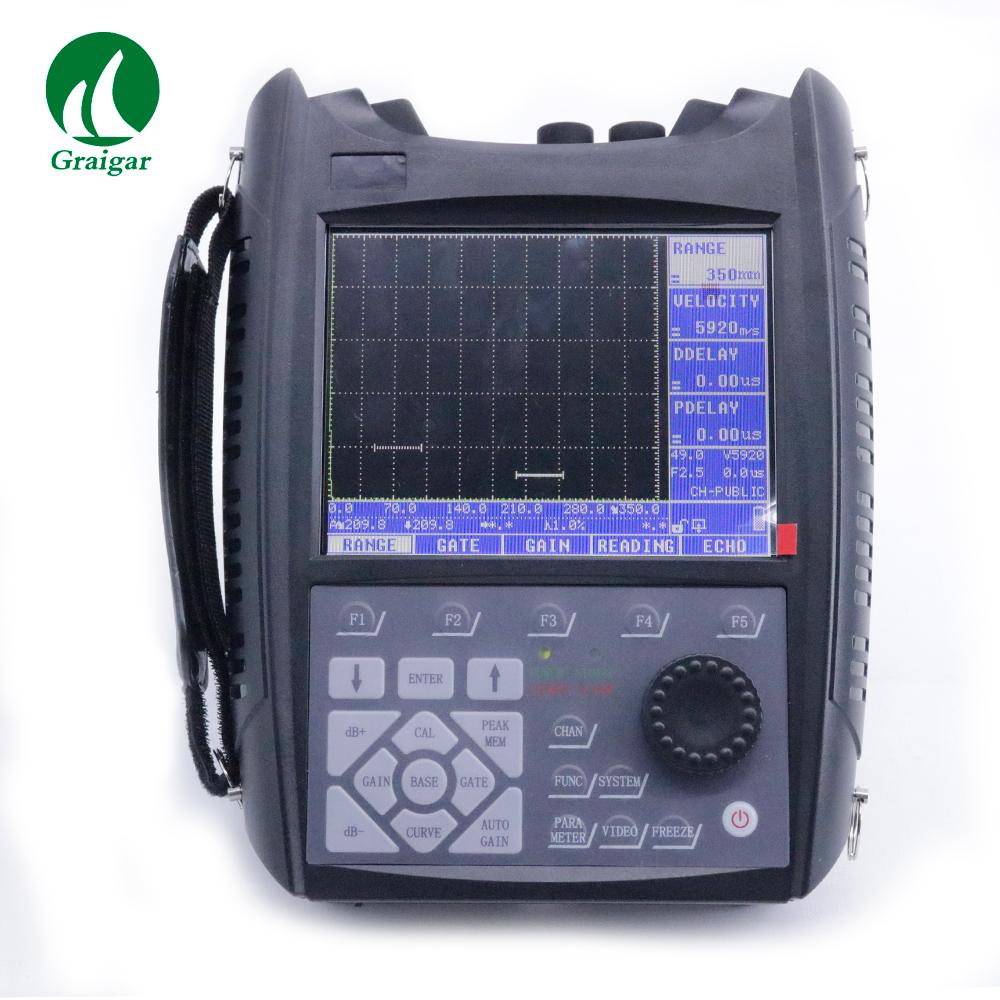

SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm

  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
  • SUB100 Portable Digital Ultrasonic Flaw Detector Scan Range 0~10000mm
Model No.︰SUB100
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 1600 / pc
Minimum Order︰1 pc
Share on:

 Total 15 Related Items
Prev7891011Next

Product Description

Features and Functions

High right electroluminescent, strength light, weak light and sunlight viewable.

•32 independent sets of parameters can be set and save lots of inspection procedure and standards, need no test block outside, high work efficiency.

•Menu and sub-menu display in the same window, no need to search, clear at a glance, simple and convenient to operate.

•Large capacity Li battery, low power consumption design, 20+ hours run time.

•Can be connected to the printer, print inspection report and wave.

•Has auto-calibration function for normal probe, angle probe, convenient to use.

•Square wave pulse generator, amplitude and pulse width can be adjusted, suitable to test the defects of work piece with different materials and depth.

•Peak value in the gate can be captured automatically.

•DGS(AVG) curve suitable to inspect forged piece etc.

•A-scan and B-scan to be selected.

•Waveform and channel parameters can be saved into U disk directly or copied from the detector memory to the U disk then to be processed by the host computer software.

•Based the curve surface diameter to calibrate the flaw location by the curve surface calibration function.

Specifications

Scan Range0~10000mm

Velocity range1000 m/s~9999m/s

Gain0dB~110dB

Display Delay-20μs~+3400μs

Sensor Zero Offset0μs~99.99μs

Sensor Frequency0.1~15MHz

Sensor Damping100Ω,150Ω, 200Ω,500Ω

Repetition Rate10~1000Hz

Sensitivity Allowance≥60dB(D:200mm ,FBH:Diameter=2)

Resolution≥40dB

Linear Rejection0~80%

Vertical Linearity deviation≤3%

Horizontal Linearity deviation≤0.2%

DynamicRange≥32dB

Pulse Patternsquare

Pulse Strength100V——800V

Pulse Width50ns——1000ns

Power Supply12×3.7V(Li-ion Battery)

Operation Temperature20°C~50°C

Humidity20%~90%RH

Size250(L)mm×80(W)mm×150(H)mm

Weight1.7kg(include battery)

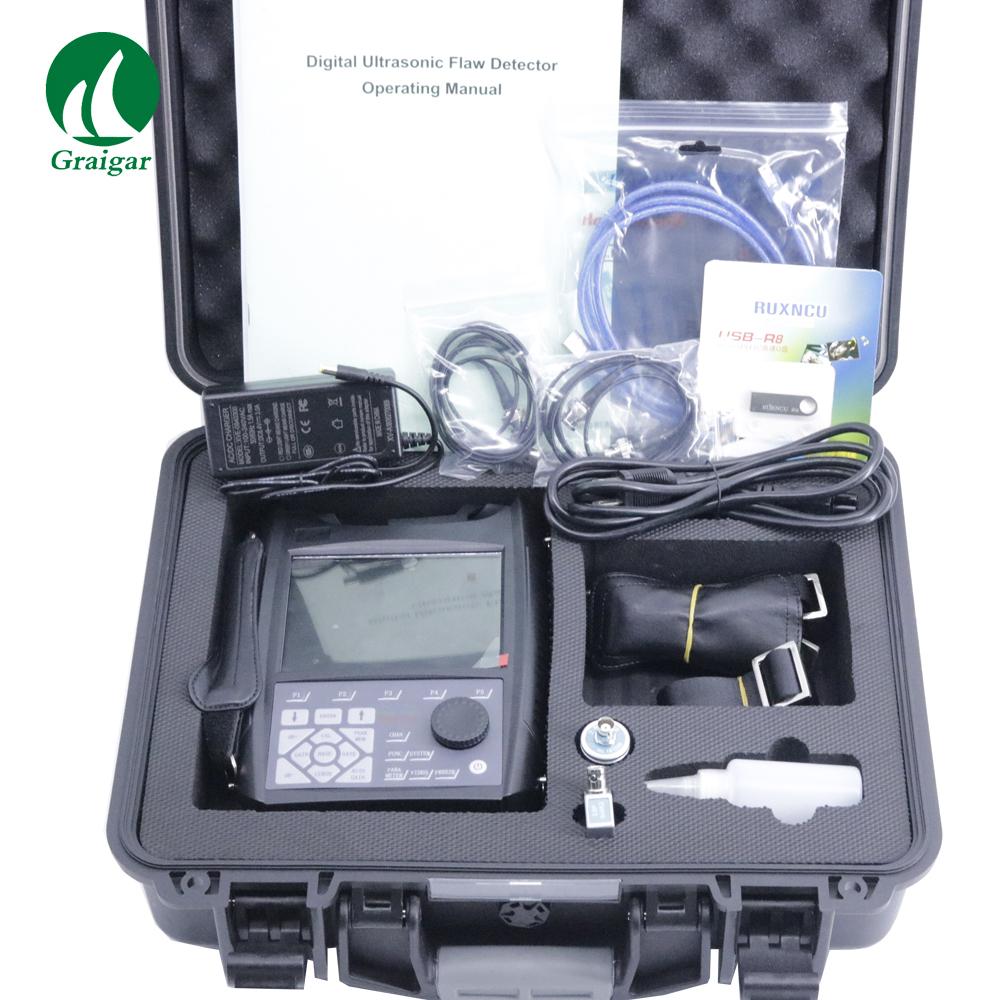

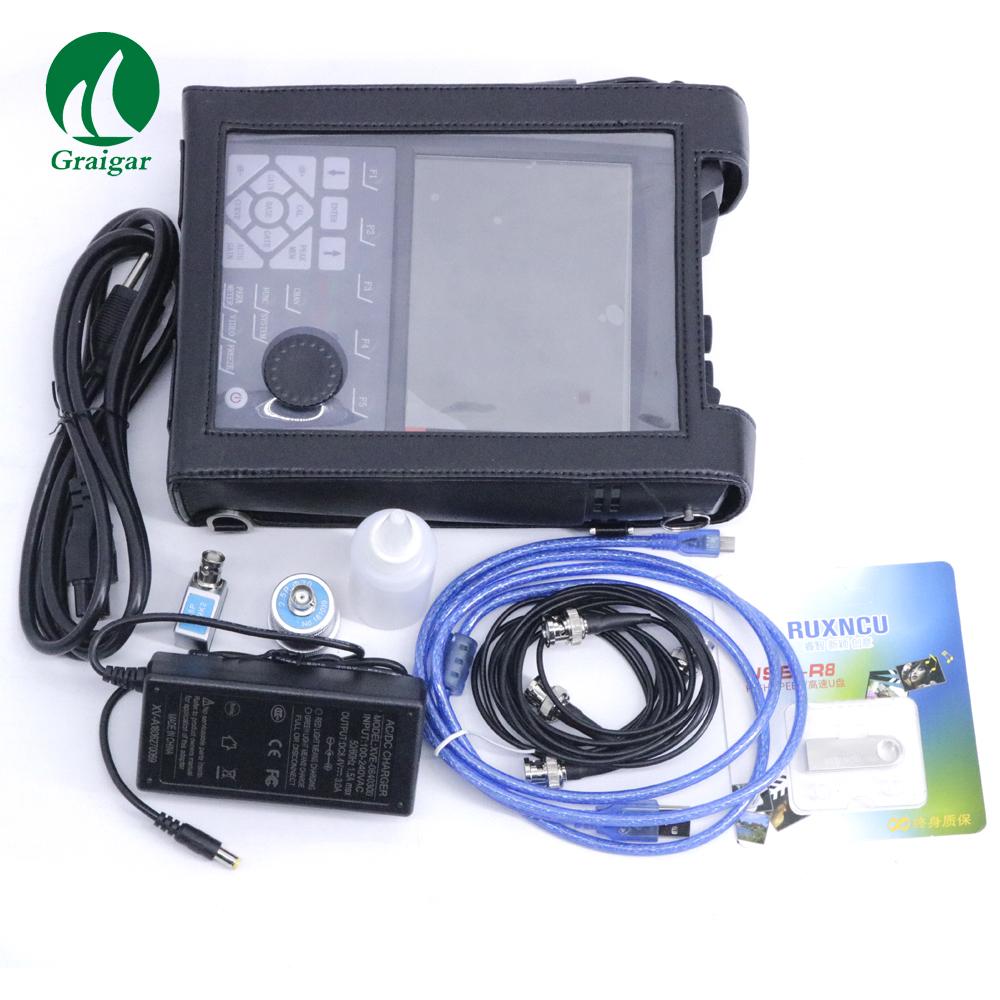

Standard Configuration

No.

Description

Specification

Qty.

1

Detector (with wristlet)

SUFD2

1

2

Charger

CD20L02QF

1

3

Connecting cable

1m

2

4

Normal probe

F20mm,2.5MHz

1

5

Angle probe

13′13k2,2.5MHz

1

6

Couplant

95%(GLYCERIN)

0

7

Holster



1

8

Belt



1

9

Certificate



1

10

SUFD2 operating manual



1

11

PC software



1

12

USB Disk

2G

1

13

USB disk connector



1

14

Plastic tape



1

Ying

Price Terms︰EXW
Payment Terms︰Paypal/Credit Card/TT
Packing︰Carton
Lead Time︰Within 3 working days after paying.
Product Image
