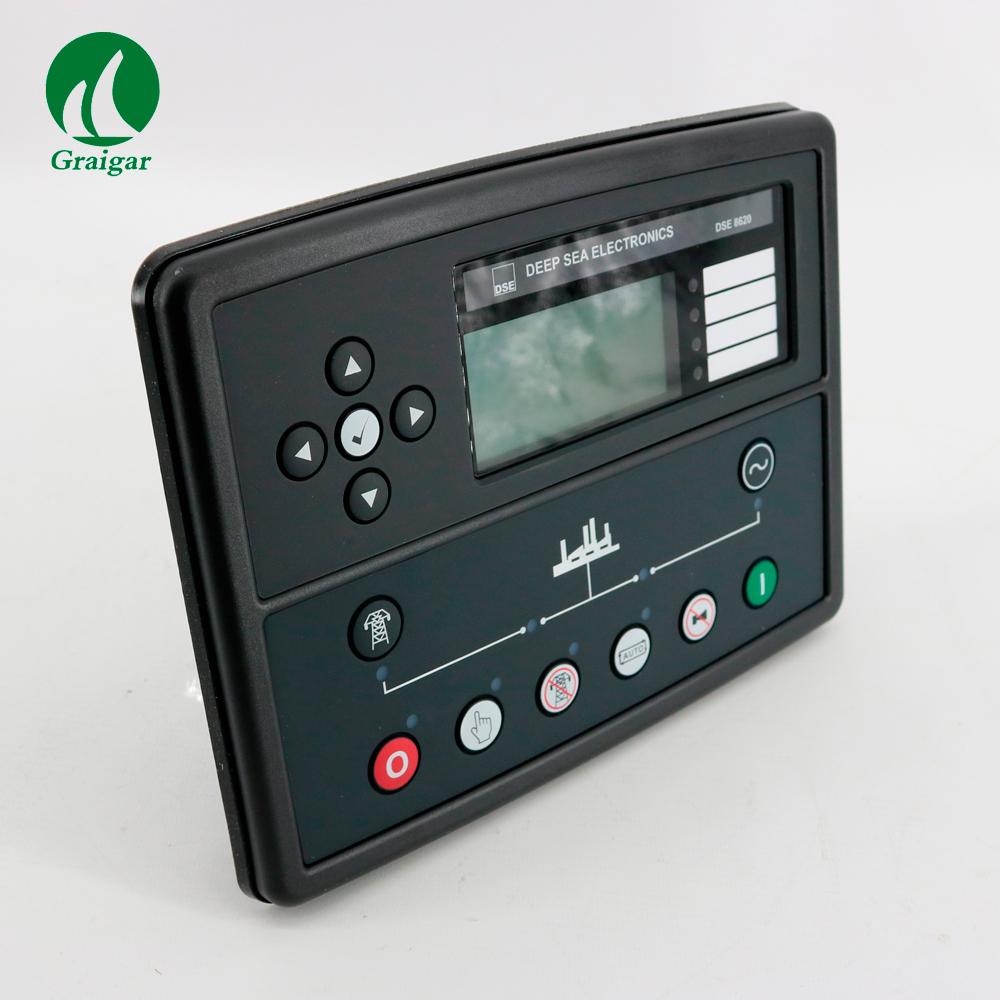

Deep Sea Controller DSE8620 Auto Mains Failure Control Module

  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
  • Deep Sea Controller DSE8620 Auto Mains Failure Control Module
Model No.︰DSE8620
Brand Name︰Deep Sea
Country of Origin︰China
Unit Price︰US $ 1800 / pc
Minimum Order︰1 pc
Share on:

 Total 37 Related Items
Prev1516171819Next

Product Description

Original Deep Sea DSE8620 Automatically Failure Control Module Frequency Range 3.5Hz to 75Hz

The DSE8620 is an intelligent mono display auto mains (utility) failure load share control module packed with industry leading features to enhance paralleling single gensets with a mains (utility) supply.

The DSE 8620 automatically controls the change over between mains (utility) and generator power and can also be configured to run a generator in synchronisation with a mains (utility) supply.

OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.88kg

Key Features and Benefits:

·  Mains (Utility) failure detection, mains (utility) power monitoring (kW, kV Ar, kV A & pf) monitoring, mains (utility) decoupling protection, mains (utility) kW export protection.

· Gives full mains (utility) back-up and provides no break synchronisation that includes peak lopping and peak shaving options with mains (utility) power monitoring.

· Configurable inputs/outputs (11/8).

· Provides multiple installation options.

· Dead bus sensing.

· Provides rapid power delivery on multi-set systems.

· Direct governor & AVR control.

· Eliminates the requirement for external control equipment.

· kW & kV Ar load sharing.

· Provides controlled power delivery.

· Remote communications (RS232, RS485 x2, Ethernet).

· Provides secure and simple off site monitoring. All ports are continuously active.

· Configurable event log (250).

· Provides access to historical alarms and operational status.

· Integral PLC editor.

· Ensures additional applications are easily integrated into the system.

·  Load switching, load shedding & dummy load outputs.

· Allows load options and dummy load requirements to be independently controlled.

· Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection.

· Provides clear accurate power measurement information.

· Data logging (HDD/USB).

· Provides current and historical status information.

· DSE Configuration Suite PC Software.

· Provides complete user-friendly configuration and easy-to-use high-level system control & monitoring.

· Tier 4 CAN engine support.

· Ensures the control module can be used with the latest in modern electronic engine technology.



SPECIFICATION:

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT
460 mA at 12 V, 245 mA at 24 V

MAXIMUM STANDBY CURRENT
375 mA at 12 V, 200 mA at 24 V

CHARGE FAIL/EXCITATION RANGE
0 V to 35 V



OUTPUTS

OUTPUT A (FUEL)
15 A DC at supply voltage

OUTPUT B (START)
15 A DC at supply voltage

OUTPUTS C & D
8 A 250 V (Volt free)

AUXILIARY OUTPUTS E,F,G
2 A DC at supply voltage

GENERATOR & MAINS

VOLTAGE RANGE
15 V - 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK UP

VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)

BUILT-IN GOVERNOR AND AVR CONTROL

MINIMUM LOAD IMPEDANCE
1000Ω
Fully isolated

GAIN VOLTAGE
0 V to 10 V DC
Fully isolated

OFFSET VOLTAGE
+/- 10 V DC
Fully isolated

BUILT-IN AVR CONTROL

MINIMUM LOAD IMPEDANCE
1000Ω
Fully isolated

GAIN VOLTAGE
0 V to 10 V DC
Fully isolated

OFFSET VOLTAGE
+/- 10 V DC
Fully isolated

Price Terms︰EXW Shenzhen
Payment Terms︰TT/LC/Western Union/Paypal
Packing︰EXPORT CARTON
Lead Time︰3 days
