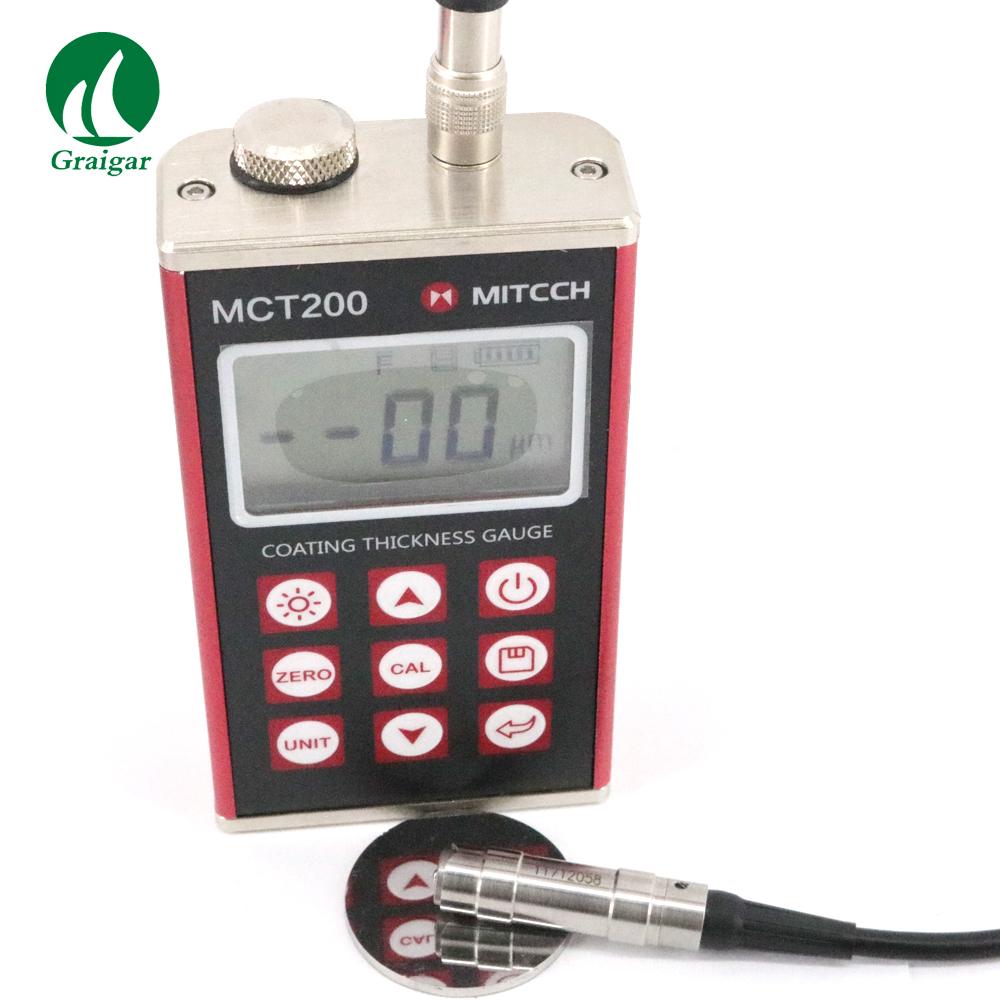

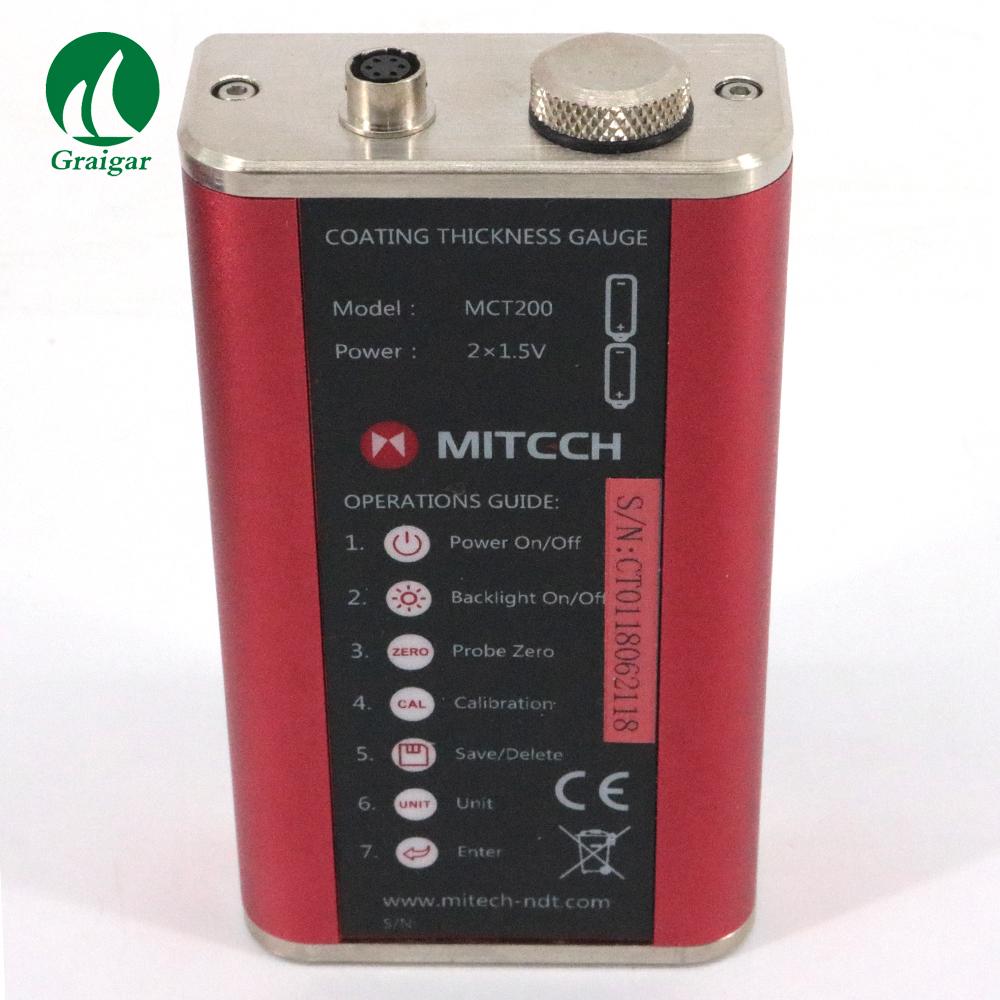

Digital Coating Film Thickness Gauge MCT200
Specifications
Measuring principle:Magnetic induction & Eddy current
Measuring range :(0~1250) μm, depends on probes. maximum 10mm for the probe F10. Refer to Appendix.
Low range resolution:0.1μm
Accuracy: ±(3%Thickness+1) μm, depends on probes and conditions
Display:4 digits LCD with EL backlight
Memory for up to 20 files (up to 50 values for each file) of stored values.
Unit system: Metric (μm),Imperial (mil)
Power source: Two “AA” size, 1.5 Volt alkaline batteries. 200 hours typical operating time (EL backlight off).
Communication:USB1.1
Dimensions:125mm×67mm×31 mm
Weight:340g
Features
* With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.
* Five types of probes (F400, F1, F10, N1, CN02) are available for different application. F10 probe measures up to 10mm.
* Two measuring modes: single or continuous, changeable.
* Two calibration methods can be applied to the gauge; And the system error of the probe can be corrected with the basic probe calibration method.
* Measured values and user information are shown on a large, easy-to-read LCD. A display back light ensures easy reading of screen data in poorly-lit conditions.
* Measuring status indicator showing the measuring status.
* The gauges’ user-friendly measuring system permits automatic storage of up to 1000 readings in one memory matrix for later statistical evaluation.
* Battery information indicates the rest capacity of the battery.
* Auto sleep and auto power off function to conserve battery life.
* USB1.1 communication port. Optional software to process the memory data on the PC.
* Compact aluminum case,suitable for use under poor working conditions
Measuring Principles
The gauge adopts two thickness-measuring methods: magnetic induction method and eddy current method.
insulating coatings on all non-ferrous metals and on austenitic stainless steels, e.g. paint, anodizing coatings, ceramics, etc. applied on aluminum, copper, zinc die-casting, brass, etc.
Working Conditions
* Working temperature: -10~+50
* Storage temperature:-30~+60
* Relative humidity: ≤90%;
* The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.

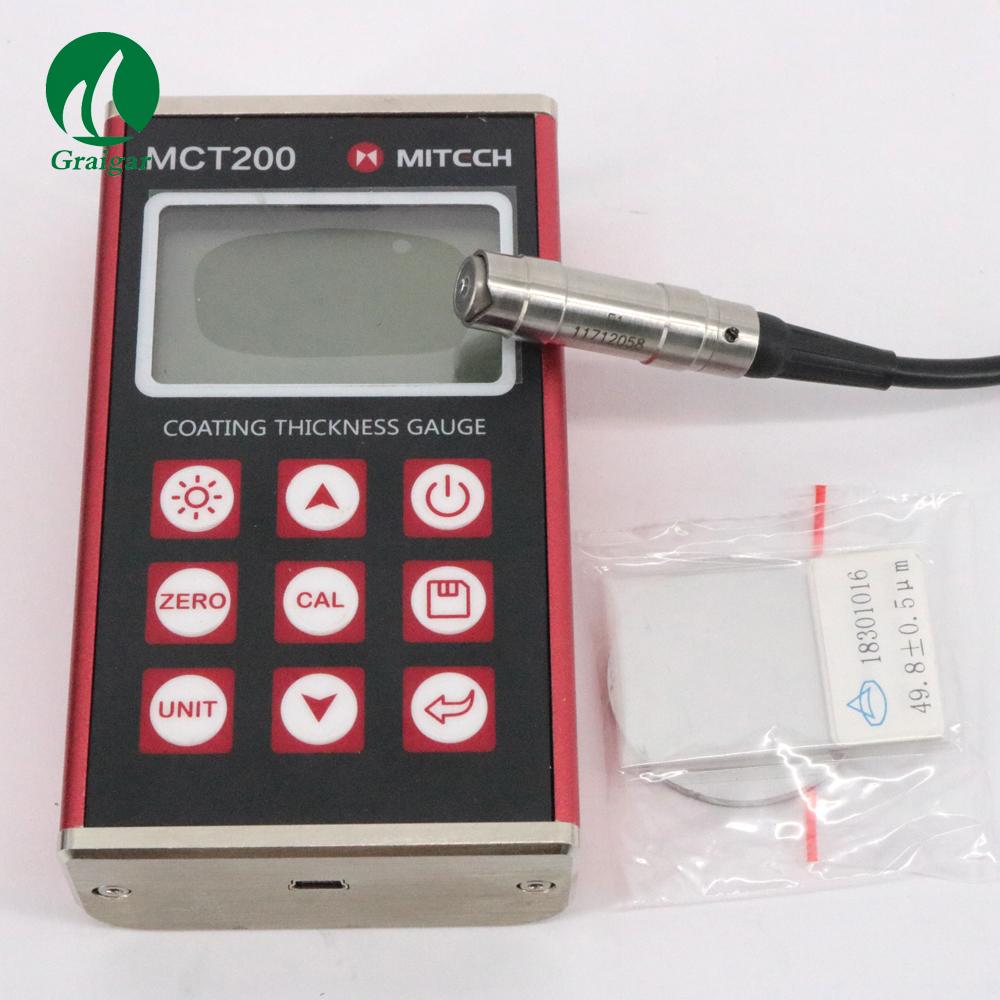

Configuration
|
|
No.
|
Item
|
Quantity
|
Remarks
|
|
Standard
Config.
|
1
|
Main unit
|
1
|
|
|
2
|
Probe
|
1
|
F1 or N1
|
|
3
|
Calibration Foils
|
5 PCS
|
|
|
4
|
Zero plate
|
1
|
Iron or Aluminum
|
|
5
|
Instrument case
|
1
|
|
|
6
|
Manual
|
1
|
|
|
7
|
Alkaline Battery
|
2 PCS
|
AA size
|
|
8
|
|
|
|
|
Optional
Config.
|
9
|
Other type of probes
|
|
|
|
10
|
DataPro software
|
1
|
On CD
|
|
11
|
USB cable
|
1
|
|
