DY5500 Multi Function Tester 2000Mohms earth Resistance tester

  • DY5500 Multi Function Tester 2000Mohms earth Resistance tester
  • DY5500 Multi Function Tester 2000Mohms earth Resistance tester
  • DY5500 Multi Function Tester 2000Mohms earth Resistance tester
  • DY5500 Multi Function Tester 2000Mohms earth Resistance tester
  • DY5500 Multi Function Tester 2000Mohms earth Resistance tester
Model No.︰DY5500
Brand Name︰DUOYI
Country of Origin︰China
Unit Price︰US $ 145 / pc
Minimum Order︰1 pc
Share on:

 Total 17 Related Items
Prev12345Next

Product Description

DY5500 Multi Function Tester 2000Mohms earth Resistance tester

Features

  • Ground resistance measurements from 0.01ohm to 2000ohms with 0.01ohm resolution
  • Measure insulation resistance to 2000M ohms
  • Test voltage 250V, 500V, 1000V
  • AC voltage measurement to 600V
  • Check phase sequence and phase status
  • Auto ranging, data hold, LCD backlight
  • Low battery warning
  • Complete with test leads, auxiliary earth bars, phase wire, heavy duty carry case and eight AA 1.5V dry cells

Specifications



MODEL DY5500
Earth Resistance 0~20/200/2000? ±(2%+5)
Testing Voltage 250/500/1000V
Insulation Resistance 0.1~2000M? ±(3%+5)
Phase Rotation Check yes
AC V 700V ±(2%+5)
Auto Range yes
Function Symbol Display yes
Data Hold yes
Low Battery Warning yes
Max. Displays 1999
LCD Backlight yes

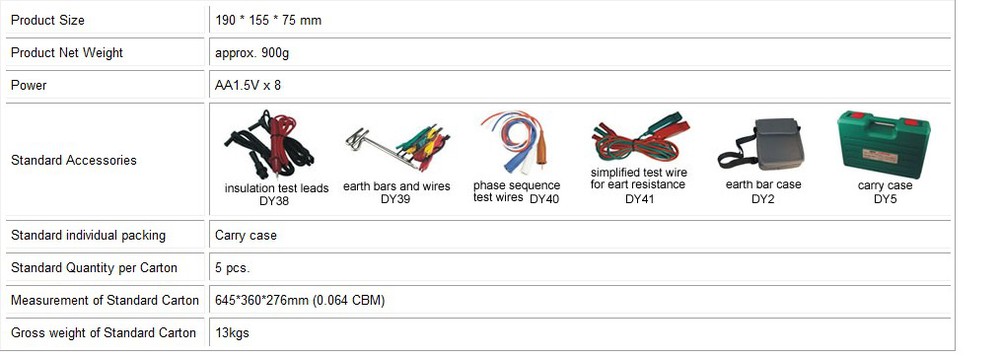

General Characteristics



Edited by Johnny

Price Terms︰FOB
Payment Terms︰TT / LC / WU / PAYPAL
Packing︰standard export carton
Lead Time︰2 day
