AFLEX-6300 Graphic Power Quality Analyzer/Power Analyzer

  • AFLEX-6300 Graphic Power Quality Analyzer/Power Analyzer
  • AFLEX-6300 Graphic Power Quality Analyzer/Power Analyzer
  • AFLEX-6300 Graphic Power Quality Analyzer/Power Analyzer
  • AFLEX-6300 Graphic Power Quality Analyzer/Power Analyzer
  • AFLEX-6300 Graphic Power Quality Analyzer/Power Analyzer
  • AFLEX-6300 Graphic Power Quality Analyzer/Power Analyzer
  • AFLEX-6300 Graphic Power Quality Analyzer/Power Analyzer
Model No.︰AFLEX-6300
Brand Name︰TES
Country of Origin︰China
Unit Price︰US $ 600 / pc
Minimum Order︰1 pc
Share on:

 Total 7 Related Items
Prev12345Next

Product Description

AFLEX-6300 Graphic Power Quality Analyzer/Power Analyzer

Product Description




  • Display of Overlapped Voltage and Current Waveform
  • Maximum Demand (MD in W, KW, MW) with Programmable Period
  • Harmonics Analysis ( V and I ) to the 50th Order
  • Display of 25 Harmonics in One Screen with Waveform
  • Display of waveform with Peak Values (512 Samples / Period), Datalogging of 32, 64, 128 or 256 Points/Cycles
  • Analysis of Total Harmonics Distortion ( % THD-F )
  • Graphic Phasor Diagram
  • Programmable PT (1 to 3000) Ratios
  • Capture 128 Transient Events ( Time + Cycles + Faults ) with Programmable Threshold(%), Can Also be Reviewed in LCD
  • 50000 Records with Programmable Interval ( 1 to 6000 seconds)
  • Output of Waveform, Power Parameters and 50 Harmonics at Command.
  • Large Dot Matrix LCD Display with Backlight
  • Optical Isolated RS-232C Interface
  • Smart Datalogging to save Battery Power for Long-term Monitoring
  • Built - in Calendar Clock for Data Logging

AC Watt ( 45 ~ 65 Hz, PF 0.5 to 1, CT=1 )

Range

Resolution

Accuracy of Readings

100.0 - 999.9 W

0.1 W

2% ± 8 dgts

1.000 - 9.999 KW

0.001 KW

2% ± 8 dgts

10.00 - 99.99 KW

0.01 KW

2% ± 8 dgts

100.0 - 999.9 KW

0.1 KW

2% ± 8 dgts

1000 - 9999KW

1 KW

2% ± 8 dgts

AC Current (45~65 Hz , True RMS)

Range

Range

Resolution

Accuracy of Readings

30 - 300 A

0.00 - 300 A

0.1 A

1 % of range ± 8 dgts

300 - 999.9 A

100.0 - 999.9 A

0.1 A

1 % of range ± 8 dgts

1000 - 3000 A

1000 - 3000 A

1 A

1 % of range ± 8 dgts

Harmonics of ACA in % and Magnitude (1 to 50th order)

Range

Resolution

Accuracy in %

Resolution

Accuracy in Magnitude

10.0 - 300 A

0.1 %

±1.0%

0.1 A

±1.0% of range ± 0.8A

1000 - 3000 A

0.1 %

±1.0%

1 A

±1.0% of range ± 3 A

Power Factor (PF)

Range

Resolution

Accuracy of Readings

0.00 - 1.00

0.01

± 1.5 % ± 8 digits

Harmonics of AC Voltage in % and Magnitude (1 to 50th order)

Range

Resolution

Accuracy in %

Resolution

Accuracy in Magnitude

50 - 600 V

0.1 %

±0.5%

0.1V

±0.5 % ± 0.5V





General Specification:

Conductor Size 150 mm (approx.)
Battery Type 1.5 V SUM-3 *2
Display 128*64 Dot Matrix
Power Consumption

10 mA (approx.)

Auto - Power - Off 15 minutes
LCD update rate 2 times/sec
Dimension 130mm(L)*80mm(W)*43mm(H), 5.1"(L)*3.1"(W)*1.7"(H)

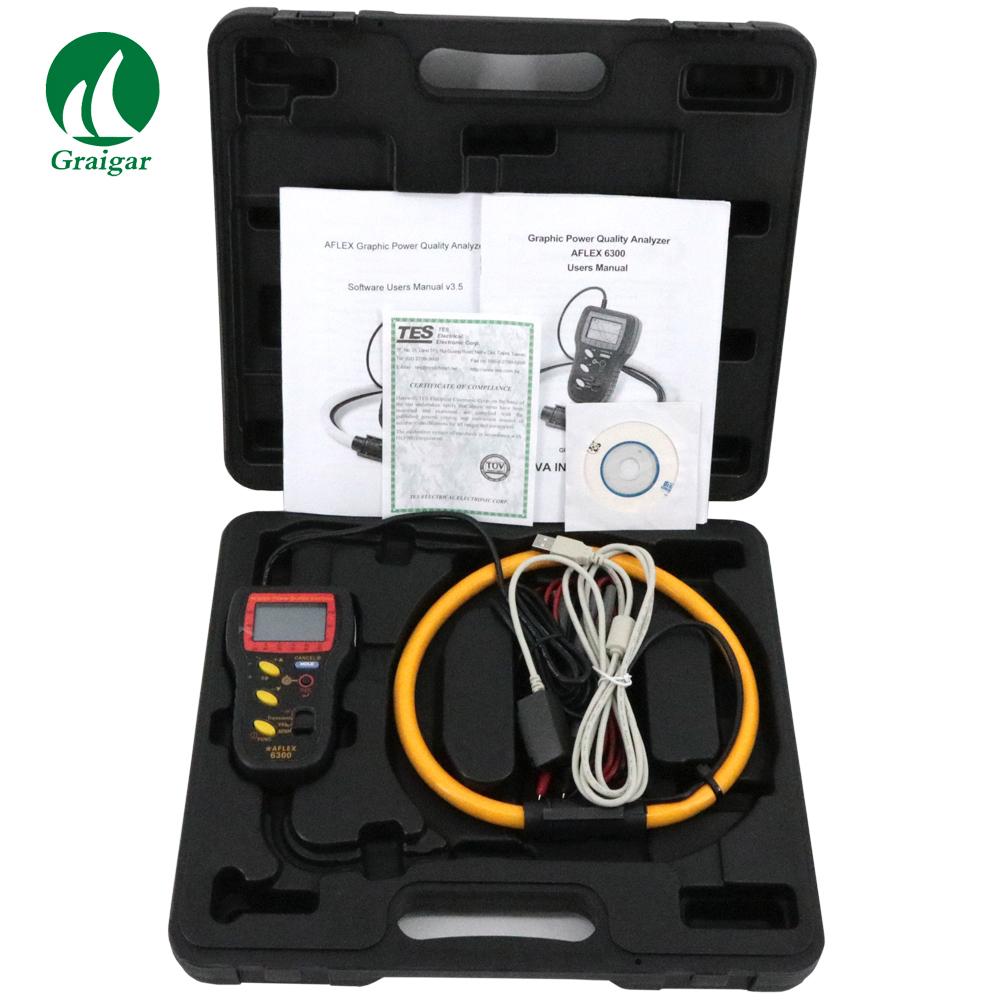

Accessories Test lead*1 pair, Users manual*1, Batteries 1.5V*2
No. of Sample / Period 512 ( V & A ), 256 (W)
Operating Temperature -10 to 50
Operating Humidity < 85% RH
Storage Temperature -20 to 60
Storage Humidity < 75 % RH
Weight 450g

Edited by Johnny

Price Terms︰FOB
Payment Terms︰TT / LC / WU / PAYPAL
Packing︰standard export carton
Lead Time︰2 day
