DY5103A Digital 5000V Insulation 3 Phase Tester

  • DY5103A Digital 5000V Insulation 3 Phase Tester
  • DY5103A Digital 5000V Insulation 3 Phase Tester
  • DY5103A Digital 5000V Insulation 3 Phase Tester
  • DY5103A Digital 5000V Insulation 3 Phase Tester
  • DY5103A Digital 5000V Insulation 3 Phase Tester
Model No.︰DY5103A
Brand Name︰DUOYI
Country of Origin︰China
Unit Price︰US $ 150 / pc
Minimum Order︰1 pc
Share on:

 Total 17 Related Items
Prev7891011Next

Product Description

DY5103A Digital 5000V Insulation 3 Phase Tester

Features

  • Test voltage 1000V, 2500V, 5000V
  • Measure insulation resistance to 200GΩ with 0.01mΩ resolution
  • AC voltage measurement to 600V
  • Check phase sequence and phase status
  • Data hold, auto range, auto power off, LCD background light
  • Complete with test leads, phase wire, heavy duty carry case and six 1.5V AA batteries

Specifications

Insulation 3 Phase Tester

MODEL DY5103A
Testing Voltage 1000/2500/5000V
Insulation Resistance 0.1~200GΩ ±(3%+5)
Phase Rotation Check yes
AC V 700V ±(2%+5)
Resolution 0.01MΩ
Auto Range yes
Function Symbol Display yes
Data Hold yes
Low Battery Warning yes
Max Displays. 1999
LCD Backlight yes

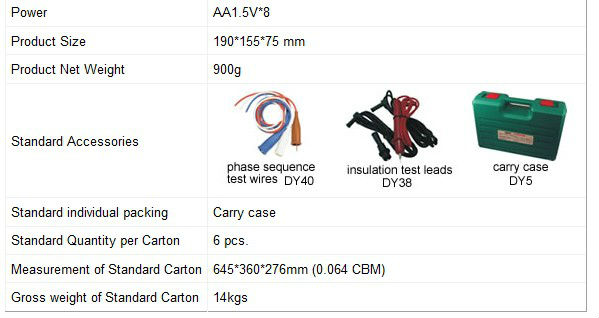

General Characteristics


Edited by Johnny

Price Terms︰FOB
Payment Terms︰TT / LC / WU / PAYPAL
Packing︰standard export carton
Lead Time︰3
Product Image
