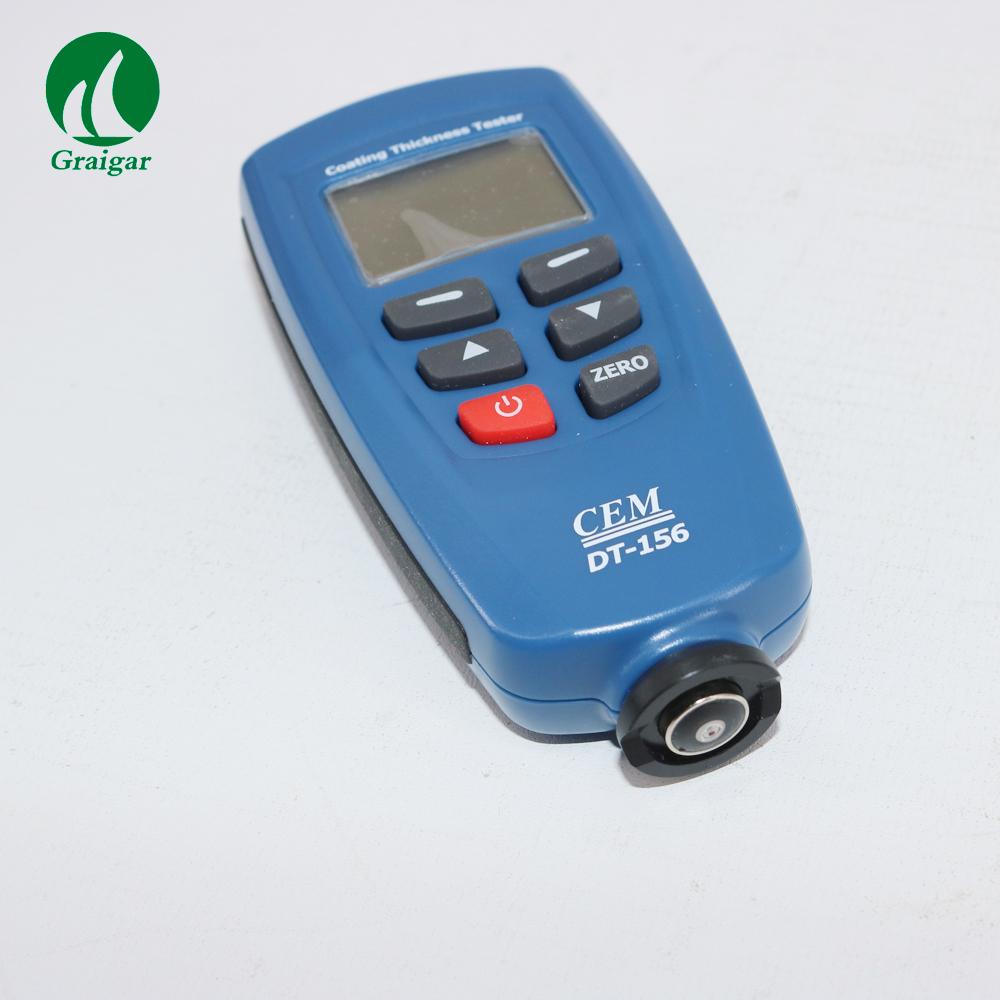

This compact & handy Professional Gauge is designed for non-destructive, fast and highly accurate/precise coating thickness measurement. The principal aplications lie in the field of corrosion protection. Ideal for manufacturer, offices & specialist advisers, paint shops & electroplaters, chemical, automobile, shipbuilding and aircraft industries including light & heavy engineering.
DT-156 gauge are suitable for laboratory, workshop & outdoor use. It works either on magnetic induction principle and on eddy current principle, depends on probe used. DT-156 uses only 1 probe for both ferrous & non-ferrous metal substrates. Probe can be selected manually or automatically.
Stores 400 memory values and display 5 statistics ( AVG, MAX, MIN, S.DEV and Number of reading in work mode). It comes with software CD and USB cable for transferring collected data to computer for later analysis or data printing.
Features:
- Non-magnetic coatings (e.g. paint, zinc) on steel
- Insulating coatings (e.g. paint, anodizing coatings) on no-ferrous metals
- No-ferrous metals coatings on insulating substrates
- Easy MENU operation system
- Statistics Display : AVG, MAX, MIN, S.DEV and Number of readings in work mode
- Two measuring mode : CONTINUOUS and SINGLE mode
- Two Operating/working mode :
- Direct mode : recommended for simple, quick & occasional measurements. Though can't be saved but hold up to 80 current readings + 5 statistics values
- GROUP mode : permits measurement & storage of readings in a memory. 4 memory groups, 80 saved readings for each group
- Blue backlight display
- One-point calibrating and two-point calibrating independently for each working mode
- Zero calibration
- 400 Memory readings (80 DIRECT and 320 GROUP readingS)
- Delete functions
- delete current data or last reading
- delete all data and statistics of current work mode
- delete group data including high & low alarm set value and 1 & 2 point calibrations
- High alarm and Error indication
- V-Groove on probe for small cylindrical parts
- Disable Auto-Power-Off function via MENU setting
- USB interface for PC software (compatible with windows 98/2000/xp/Vista/Win7)
- Built with highest quality electronics
- Conforms with the following industrial standards:
- GB/T 4956-1985
- GB/T 4957-1985
- JB/T 8393-1996
- JJG 889-95
- JJG 818-9
- Specifications:
|
|
Sensor Probe
|
F
|
NF
|
|
|
Working Principle
|
Magnetic induction
|
Eddy Current principle
|
|
|
Range
|
1250um
|
0~1250um
|
|
|
0~49.2mils
|
0~49.21mils
|
|
|
Guaranteed Tolerance
(of reading)
|
0 ~ 850 µm (±3% + 1µm); 850 ~ 1250µm (±5%)
|
|
|
0 ~ 33.46 mils (±3% + 0.039mils) 33.46~49.21mils (±5%)
|
|
|
Accuracy
|
0.50um(0.1um) 50~850um(1um) 850~1250um(0.01mm)
|
|
|
0~1.968mils(0.001mils) 1.968~33.46mils(0.01mils)
33.46~49.21mils(0.1mils)
|
|
|
Min.curvature radius
|
1.5mm
|
3mm
|
|
|
Diameter of Min.area
|
7mm
|
5mm
|
|
|
Min.thickness of substrate
|
0.5mm
|
0.3mm
|
|
|
Low range Precision
|
0.1µm
|
0.1µm
|
|
|
Working Temperature
|
0~40°C (32~104°F)
|
|
|
Working Relative Humidity
|
20~90% RH
|
|
|
Size
|
110 x 50 x 23mm
|
|
|
Weight
|
100g
|
Set Includes:
- 1 x Paint Coating Thickness Tester
- 5 x Calibration Foil
- 1 x Iron Substrate
- 1 x Aluminum Substrate
- 1 x Protective Carrying Case
- 1 x USB cable
- 1 x CD Software
- Instruction Manual
