EA15A Self-Excited Brushless Generator Automatic Voltage Regulator EA15A-2 Volta

Model No.︰EA15A-2
Brand Name︰OEM
Country of Origin︰China
Unit Price︰US $ 130 / pc
Minimum Order︰1 pc
Share on:

 Total 33 Related Items
Prev1516171819Next

Product Description

AVR EA15A-2 for Kutai,AVR FOR GENSET EA15A-2

Product Description

Features

  • Voltage Regulation < ±1%
  • Soft Start Voltage Ramping
  • Sensing Voltage Loss Protection
  • 120 or 240 VAC Sensing, Jumper Selectable
  • Under Frequency Roll Off Protection
  • With Under Frequency LED Indicator

Sensing Input

Voltage:220/380/440VAC , 1 phase 2 wire

Frequency:50-60Hz nominal

Voltage input:100-300VAC

Field output

Voltage:max90VDC at 240VAC input

Current:continuous 5A,intermittent 20A for 10 secs

Resistance:15 Ω minimum

Regulation:+/-0.5% RMS with 4% engine governing

Voltage build up: residual voltage at avr terminal >5VAC

External Voltage Adustament:+/15% with 5k ohm 1 watt trimmer

Price Terms︰EXW Shenzhen
Payment Terms︰TT,WU,LC,PAYPAL,ETC
Packing︰EXPORT CARTON
Lead Time︰3 DAYS

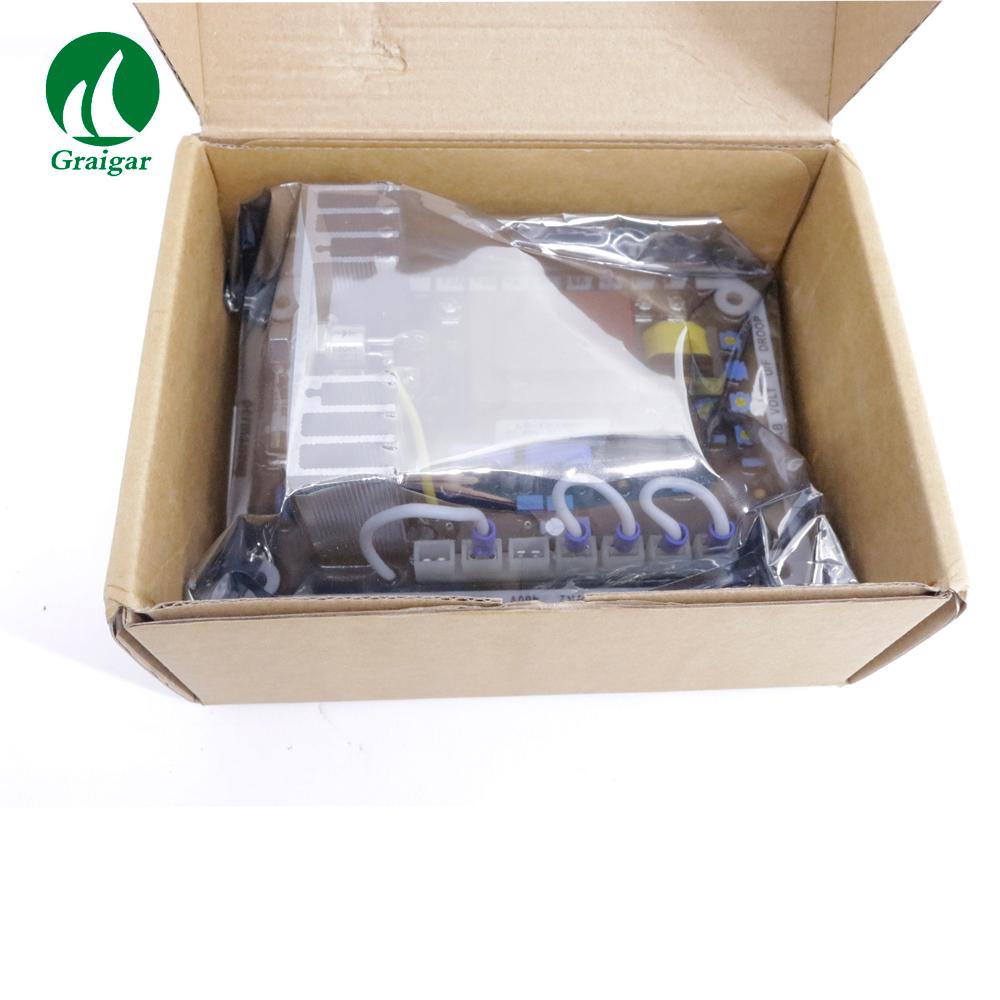

Product Image
