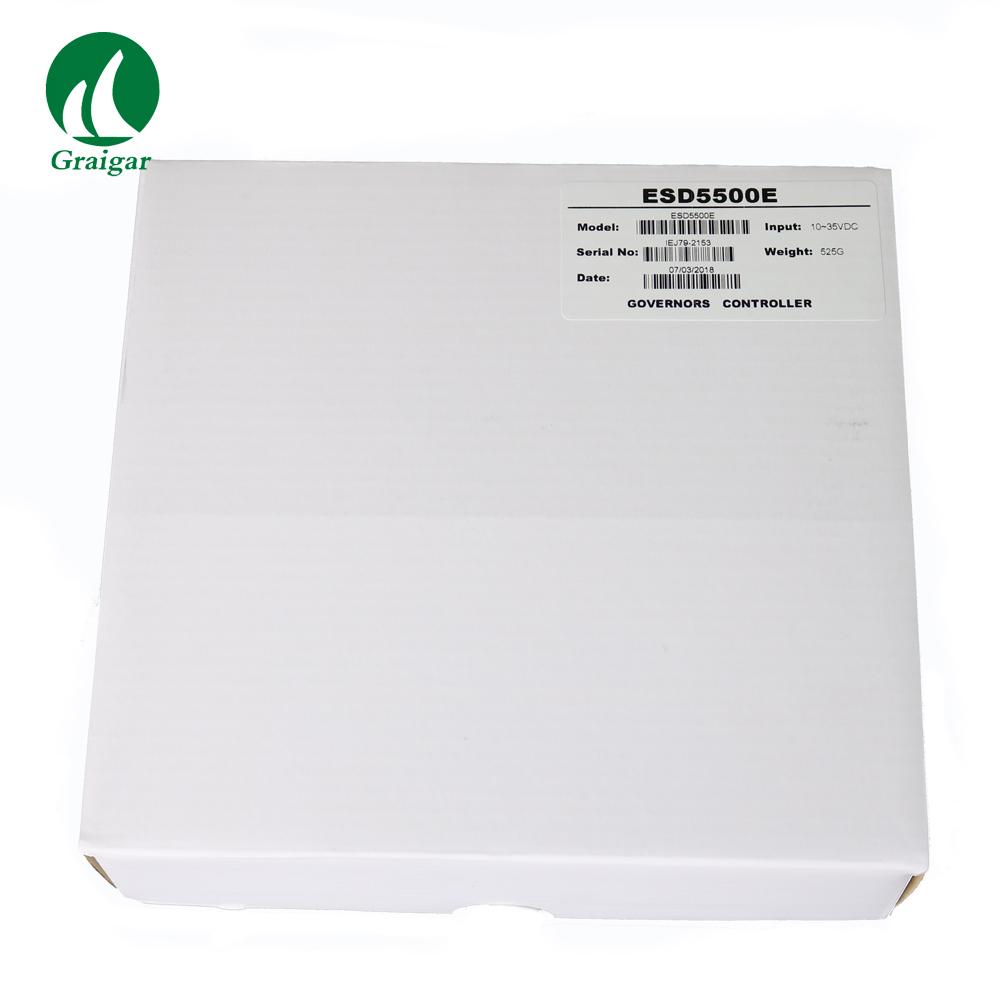

Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD

  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
  • Generator Speed Controller ESD5500E Engine Speed Governor Speed Governor GAC ESD
Model No.︰ESD5500E
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 70 / pc
Minimum Order︰1 pc
Share on:

 Total 35 Related Items
Prev3132333435Next

Product Description

ESD5500E GAC Engine Speed Governor Controller



TECHNICAL SPECIFICATIONS:

Isochronous Operation/Steady State Stability

± 0.25% or better

Speed Range/Governor

1K-7.5K Hz continuous

Speed Drift with Temperature

± 1% Maximun

IDLE Adjustment

160 ± 20Hz ~ 60% of set speed

Droop adjustment Min.(K-L Jumpered)

15Hz. ± 6Hz. per 1.0 A change

Droop adjustment Max.(K-L Jumpered)

400Hz. ± 75Hz. per 1.0 A change

Droop Adj. Max. (K-L Jumpered)

875Hz., ± 75Hz. per 1.0 A change

Droop Adj. Min. (K-L Jumpered)

15Hz., ± 6Hz. per 1.0 A change

Speed Trim Range

± 200Hz.

Remote Variable Speed Range

500 -7.5Hz. or any part thereof

Terminal Sensitivity

J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance

L: 735Hz., ± 60Hz/Volt @ 65 K Impedance

N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance

P: 10V DC Supply @ 20ma Max.

Speed Switch Adjustment Range

1000-10000Hz.

ENVIRONMENTAL:

Ambient Operating Temperature Range

-40°c to +85°c

Relative Humidity

up to 95%

Storage Temperature

-55°c ~ 90°c

Shock

20-100HZ 500mm/Sec.

INPUT POWER:

Supply

12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected)

Polarity

Negative Ground(Case Isolated)

Power Consumption

50mA continuous plus actuator current

Actuator Current Range @ 25°c-(Inductive Load)

Min. 2.5 Amps, Max. 10 Amps continuous

Speed Sensor Signal

0.5-120 V RMS

Speed Switch Relay Contacts(N.O.and N.C.)

10Amp

PHYSICAL

Weight

650g

Note: The performance parameters in the frequency when measuring 4000Hz





Edited by Miriya

Price Terms︰EXW shenzhen
Payment Terms︰TT/LC/WU/PAYPAL
Packing︰export carton
Lead Time︰3 days
