Universal AVR-8A for Brushless Generator GAVR-8A

Model No.︰GAVR-8A
Brand Name︰Universal
Country of Origin︰China
Unit Price︰US $ 60 / pc
Minimum Order︰1 pc
Share on:

 Total 99 Related Items
Prev9293949596Next

Product Description

Universal AVR-8A for Brushless Generator GAVR-8A





I.Feature:



  • <+/-1% Regulation
  • 110/220/440 VAC Programmable Input
  • Rugged Compact Design
  • With Under Frequency Protection
  • Soft Start Voltage Ramping
  • EMI Suppression
  • Built-in Hihg Capacity 8A mp Fuse



II.Specification:



  • SensingInput Voltage 110/220/400 VAC,1 phase 2 wire
  • Power Input Voltage 100-260VAC,1 phase 2wire
  • Output Voltage Max.90VDC@240VAC input



Current Continuous 3A



Intermittent 5A for 10SEE



Resistance Min.15 ohm Max.100 ohm



  • Volts Regulation <+/-1%(qith 4% engine governing)
  • Voltage Build-up Residual volts at AVR teminal>5VAC
  • External Volts Adjustment +/-7% with 1K ohm 1 watt trimmer
  • Sotf Start Ramp Time 2 sec.
  • Unit Power Dissipation Max.8 Watt
  • EMI Suppression Internal Electromagnetic Interference Filtering
  • Thermal.Drift 0.03%per centidegree chage in AVR ambient
  • Under Frequency Protection 60HZ system presets knee point at 55HZ
    (Factory Settings) 50HZ system presets knee point at 45HZ
Price Terms︰FOB Shenzhen
Payment Terms︰TT/LC/WU/PAYPAL
Packing︰export carton
Lead Time︰3 days

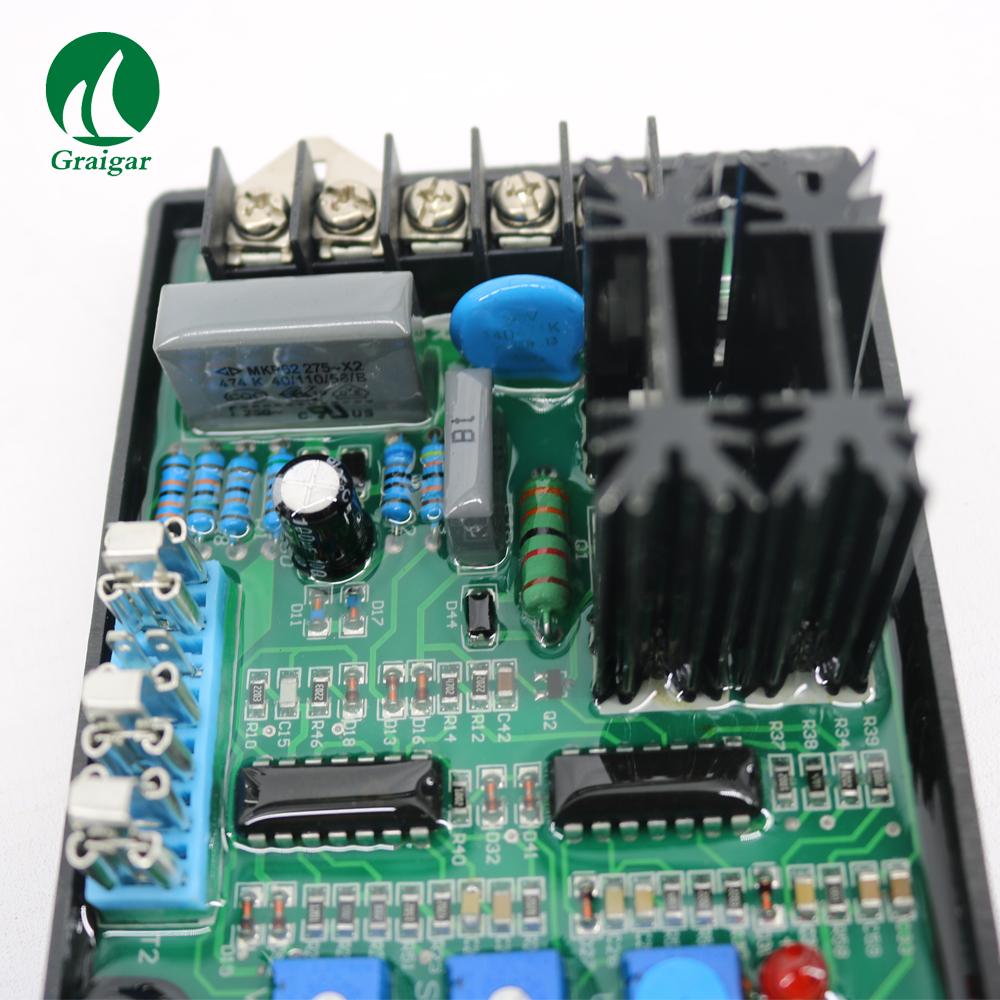

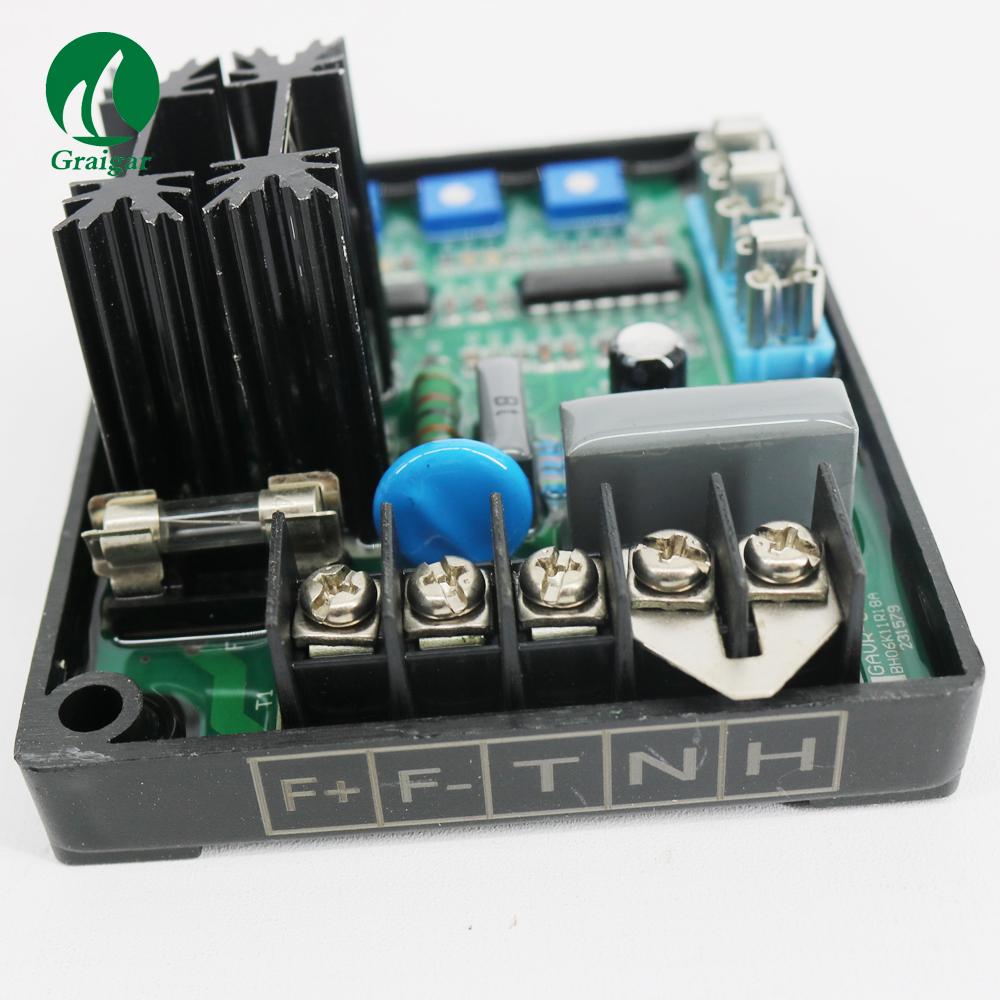

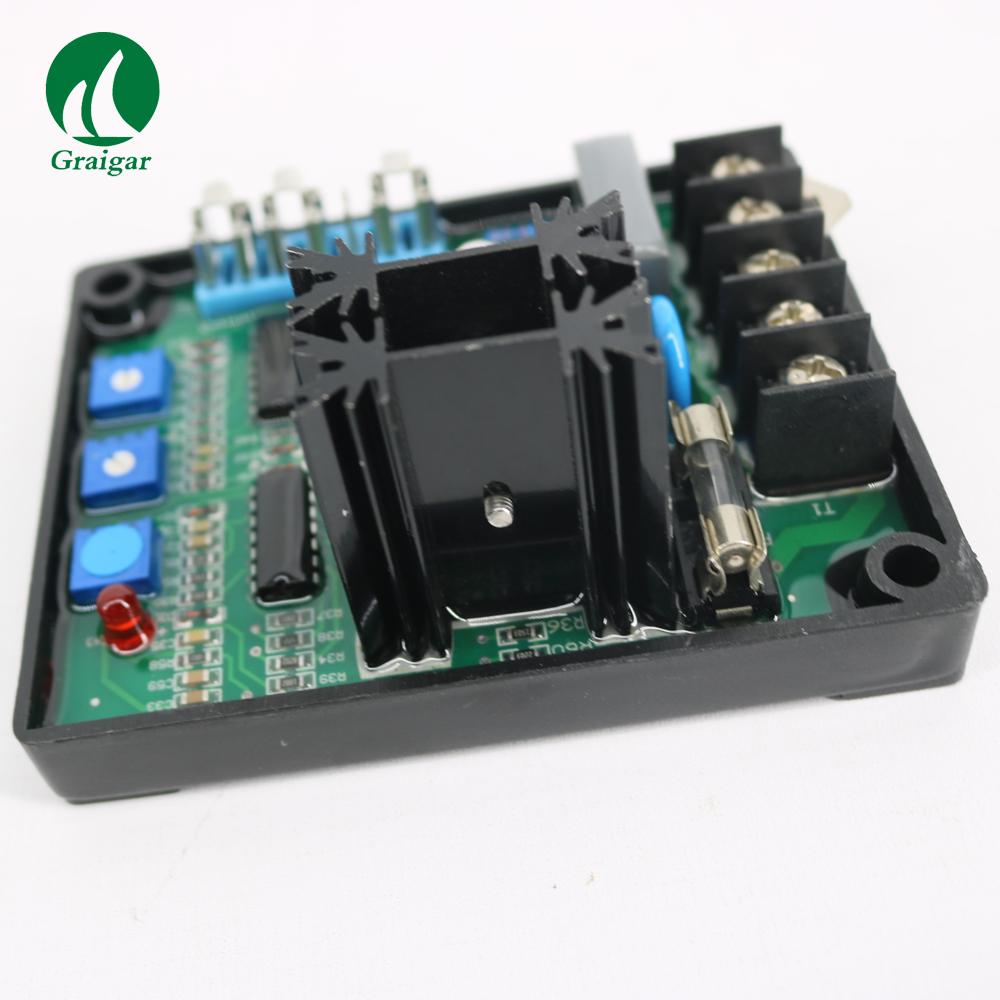

Product Image
