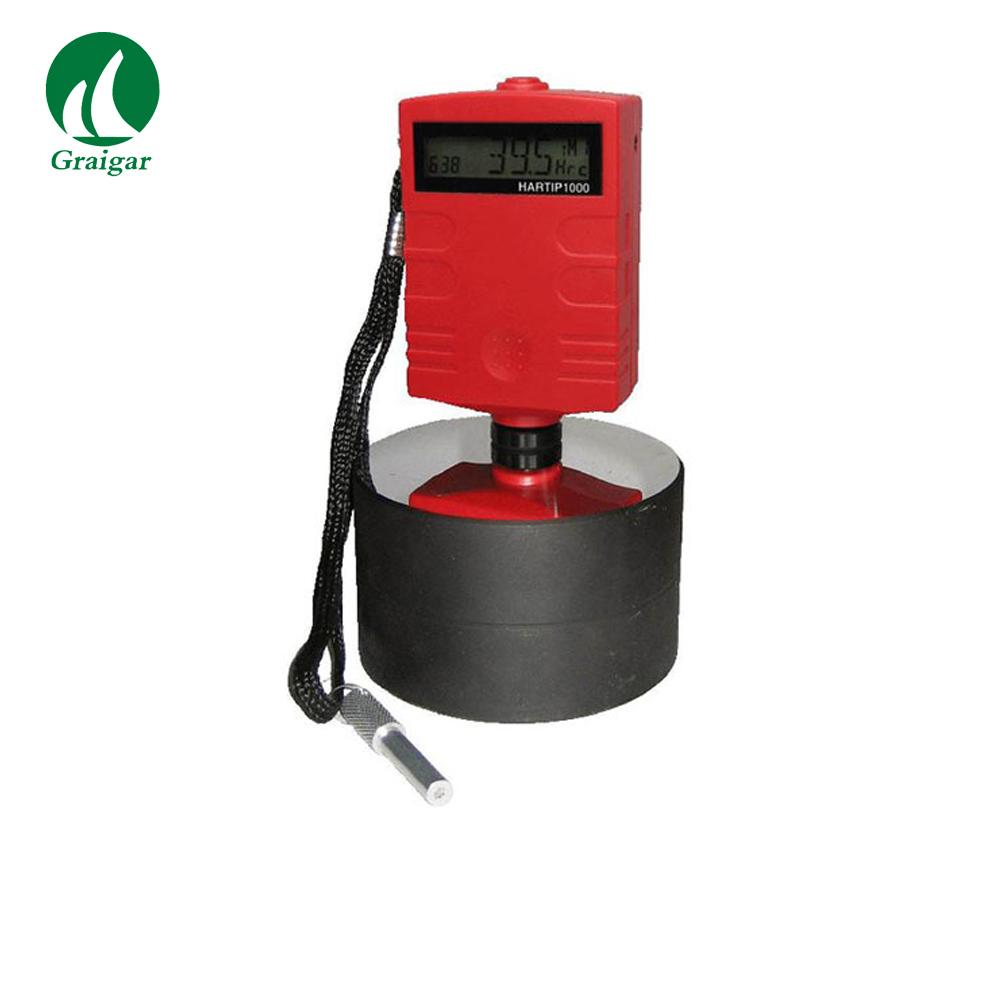

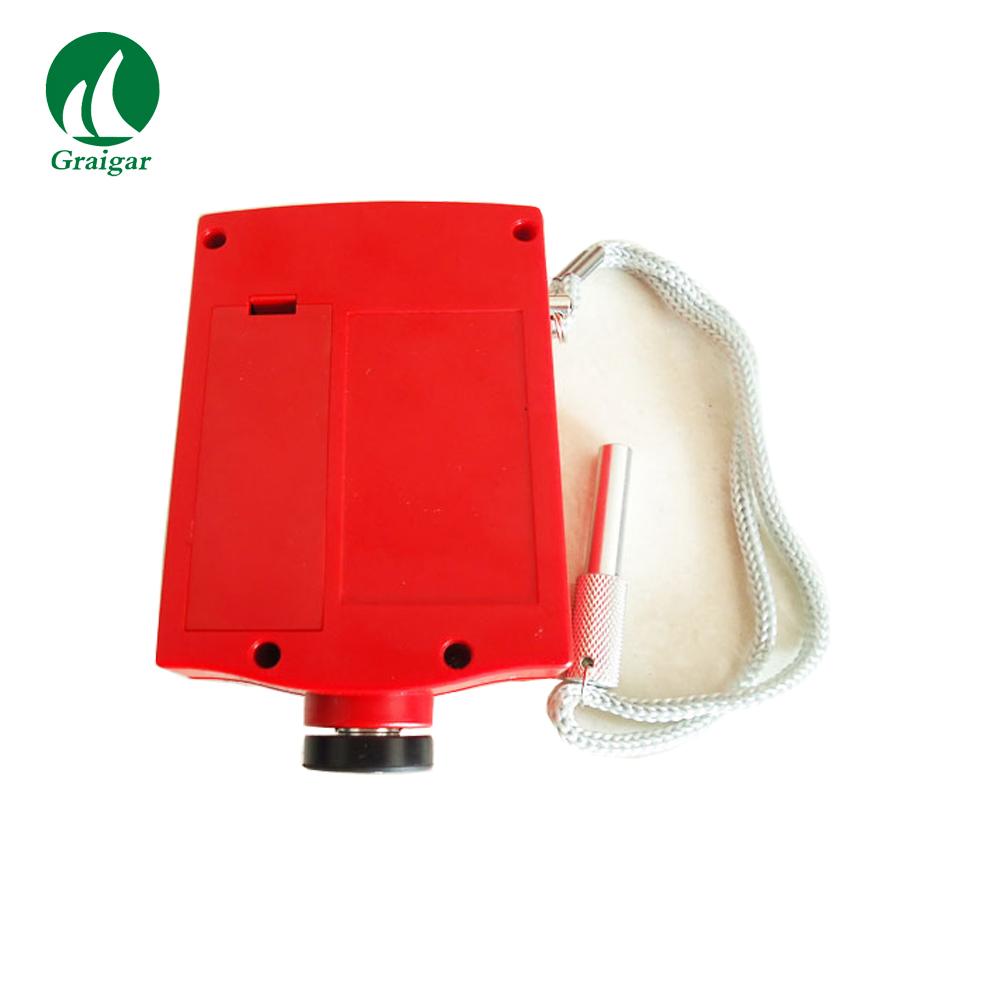

HARTIP 1000 is an integrated handheld metal hardness tester that combines impact device (probe) and processor into one unit. The size is much shorter than normal impact device, which lets HARTIP 1000 can meet not only normal measurements, but can take measurements at narrowed space as well. It can be used for industrial of power plant, petrochemical field, vehicle machine, air space, machine and so on.
KEY FEATURES
- · Rugged and modular design
- · Palm sized for narrow space
- · High accuracy
- · Built-in impact device
- Automatic power on/off
Specifications
|
|
|
|
Model
|
HARTIP 1000
|
|
Principle
|
Leeb hardness measurement
|
|
Accuracy
|
+/-0.6%@HL=800(+/-HRC0.5)
|
|
Display
|
LCD with backlight
|
|
Hardness scale
|
HL/HRC
|
|
Measruing range
|
HL210-890 / HRC20-68
|
|
Impact device
|
D (Internal)
|
|
Materials
|
Steel
|
|
Indicator
|
Low battery
|
|
Power off
|
Auto
|
|
Power supply
|
9v alkaline battery
|
|
Working environment
|
-10~+45°C
|
|
Dimension (mm)
|
116x60x33
|
|
Net weight (g)
|
150
|
