Product Description

Thickness Meter Thickness Gauge TM-8810  Ultrasonic Thickness Meter wholesale retail



Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

Measuring range (metric/imperial): 1.2-200mm,0.06-8inch

Operating principle: ULTROSONIC

Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron

Lower limit steel pipes: 15x2.0mm, 20x3.0mm determined by the transducer

Calibration block: included

Resolution: 0.1mm

Accuracy: ±(0.5%n+0.1)

Power supply: 4x1.5vaa(UM-3) battery

Battery indicator: low battery indicator

Operating conditions:0-+45°C(32°F-104°F),≤90%RH

Dimensions: 160x68x32mm

Weight: 208g(not including battery)

Display	LCD
Sensor	Ultrasonic Probe
Measuring Range	1.5~200mm/0.06~8 inch
Resolution	0.1mm
Accuracy	±(0.5%n+0.2)
Sound Velocity	--------
Lower Limit of Pipes	Φ15x2.0mmΦ20x3.0 Determined By Transducer
Operating Conditions	Temperature	0~40ºC
	Humidity	<85%RH
Power Supply	4x1.5V AA(UM-3)Battery
Dimensions	160x68x32mm
Weight	208g(Not Including Batteries)



Optional Accessories:
6M6mm Thin Material Probe:Measuring range(steel): 1.0 50.0mm   Operating temperature: -10~+60°C

5M12High Temperature Probe: Measuring range(steel): 1.0~225.0mm(normal temperature) Measuring range(steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300°C



RAMARK: MORE DISCOUNT, PLEASE CONTACT!

Our company has a history of 12 years, and has stores in AliExpress and Alibaba, the price here is the most favorable, welcome to consult us for more questions

about the shipment:we have spot goods in the warehouse and will deliver the goods 1 to 2 days after your payment ,about 3 to 7days to your delivery address.if you have any questions,please consult us



Price Terms︰ EXW SHENZHEN

Payment Terms︰ TT/LC/WU/PAYPAL

Packing︰ EXPORT CARTON

Lead Time︰ 3 DAYS

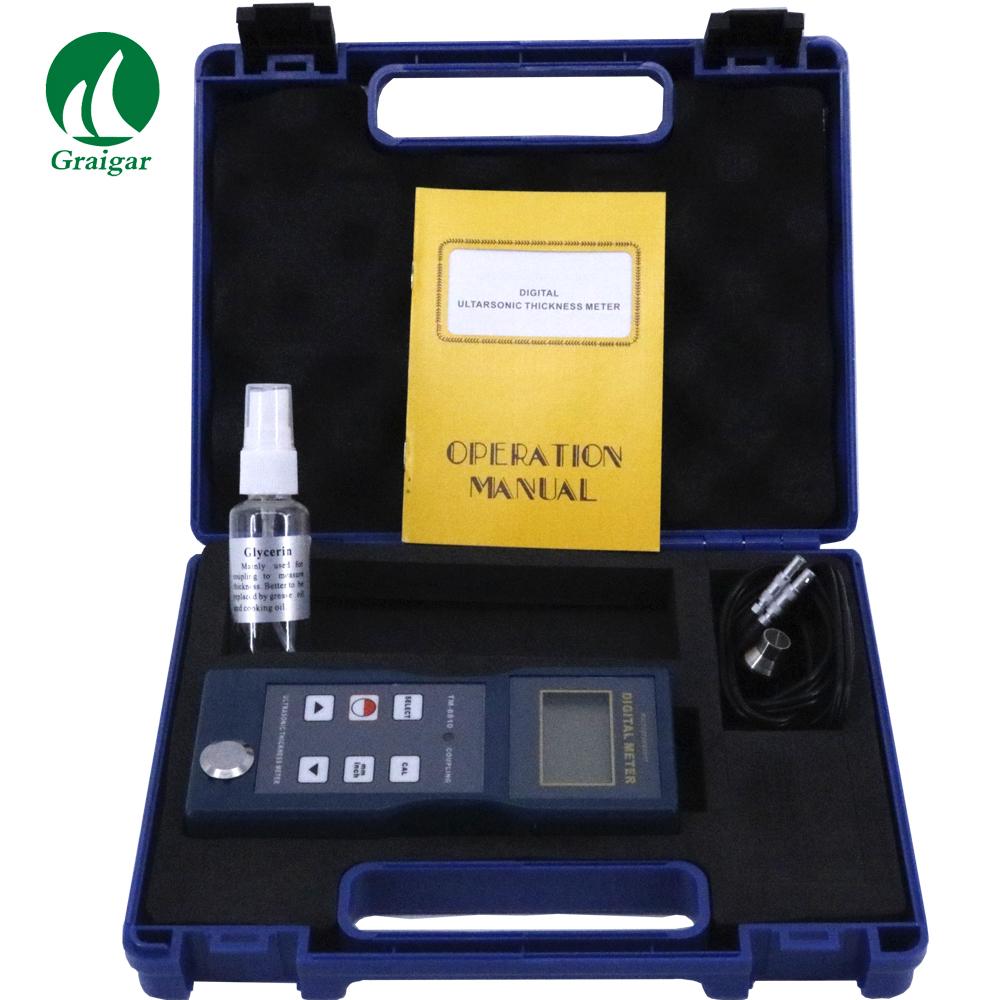

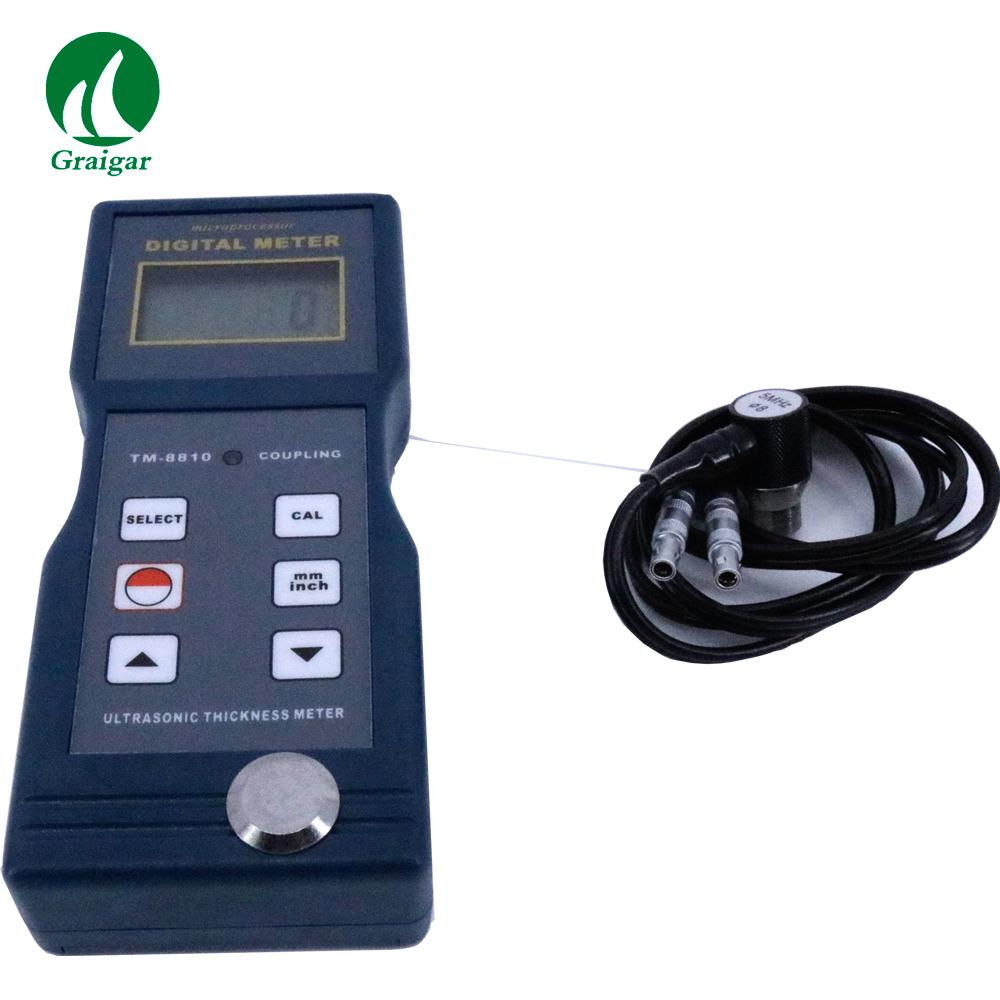

Product Image
