Product Description

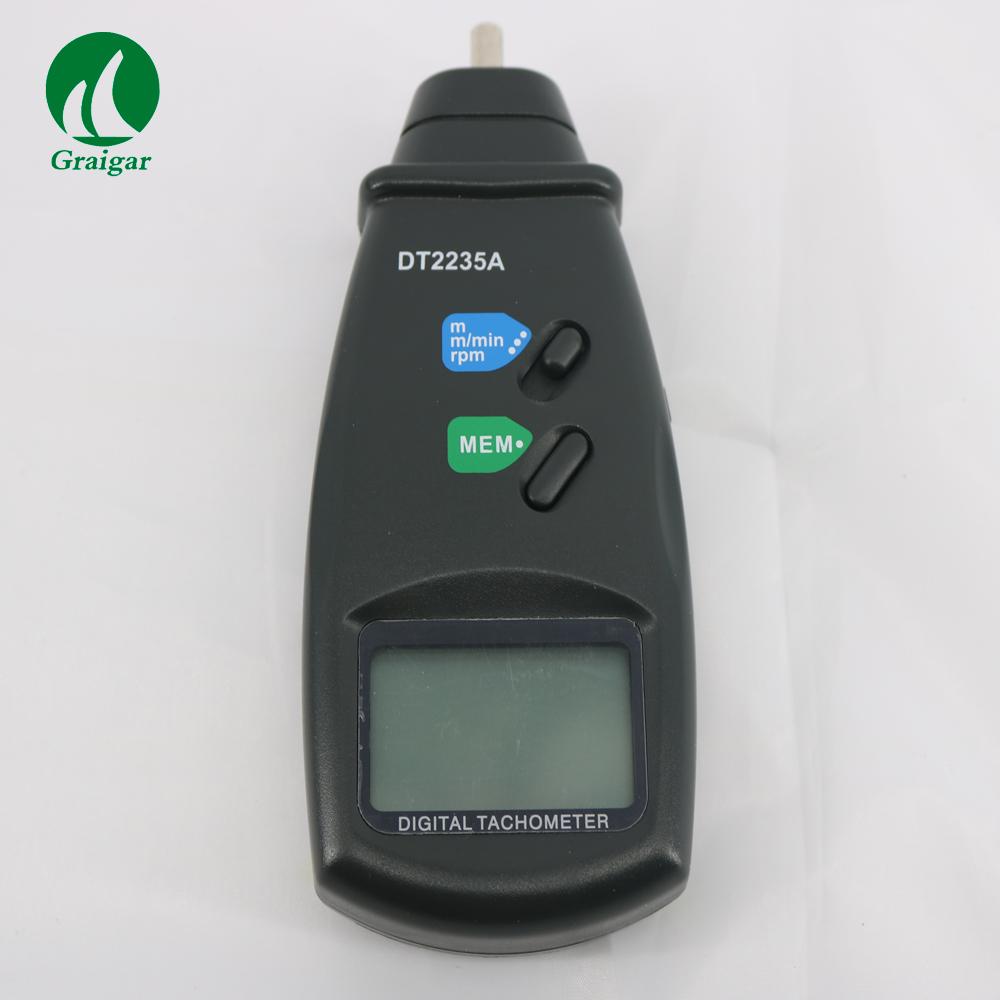

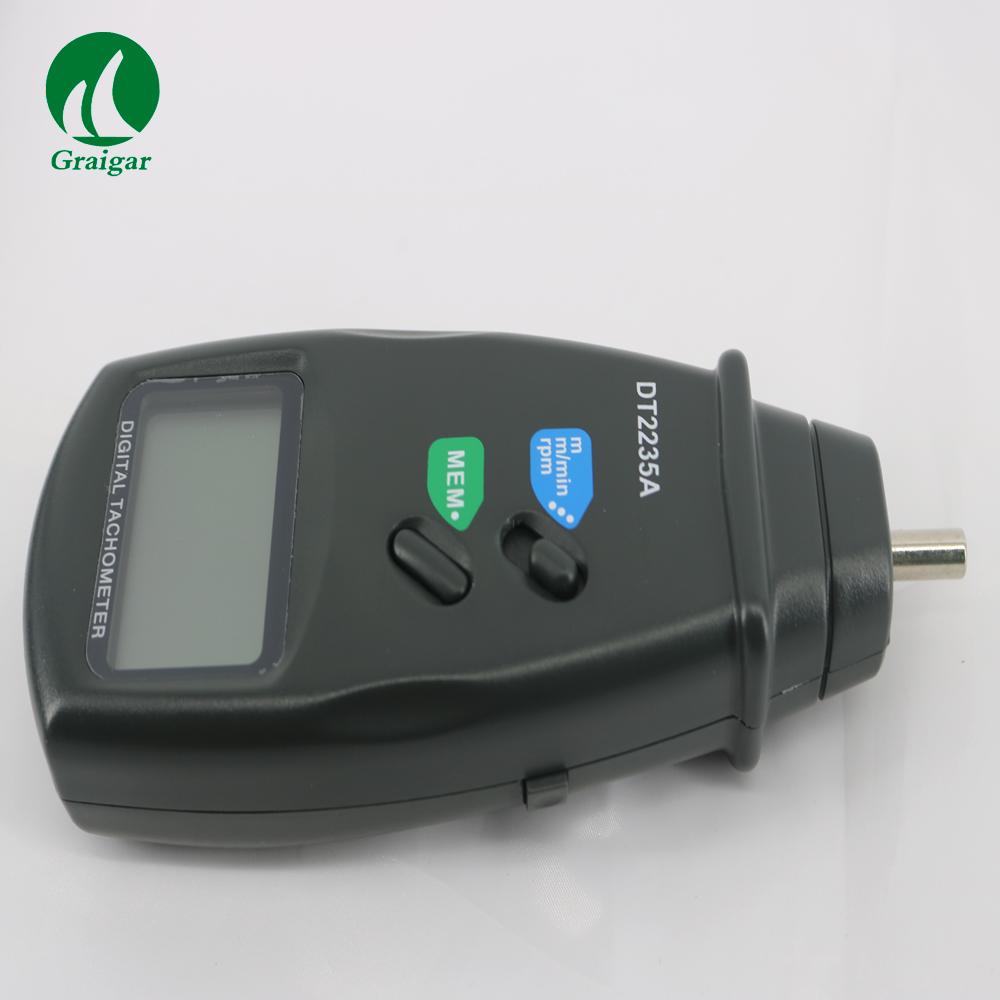

Contact Tachometer Surface Speed Meter DT2235A



Contact Tachometer Surface Speed Meter DT2235A is applicable to the product departments of motor, fan, paper-product, plastics, chemical fiber, washing-machine, automobile airplane, steamer etc.

5 digits 18mm (0.6 inch) White backlight LCD
Accuracy: +/-(0.05%+1 digit)
Sampling Time: 0.5sec(over 120RPM)
Range Select: Auto-Ranging
Memory: Max. value, Min. value, Last value
Can store 96s data
Power Consumption: Approx 45mA
Time Base: 6MHz Quartz crystal
Time Base Accuracy: 10x10-6(0~50C)
Measuring Range:
CONTACT TACH: 0.5~19,999RPM
SURFACE SPEED: 0.05~1,999,9m/min
Resolution:
CONTACT TACH:
0.1RPM(0.5~999.9RPM)
1RPM(over 1,000RPM)
SURFACE SPEED:
0.01m/min(0.05~99.99m/min)
0.1m/min(over 100m/min)
Battery: 4x1.5V AA Size Battery

Edited by ZACK

Price Terms︰ EXW Shenzhen

Payment Terms︰ TT/LC/WU/PAYPAL

Packing︰ export carton

Lead Time︰ 3 days

Product Image
