Model No.︰LM330
Brand Name︰GRAIGAR
Country of Origin︰China
Unit Price︰US $ 680 / pc
Minimum Order︰1 pc

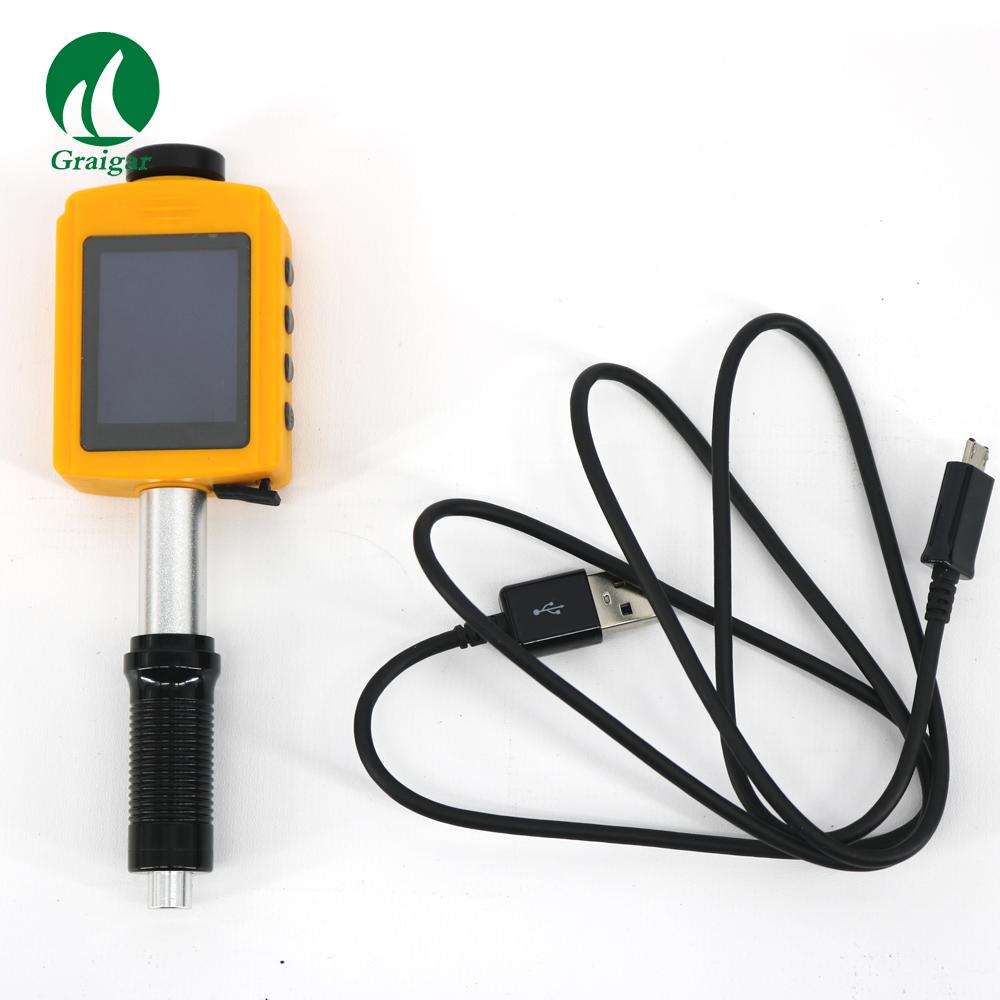

LM330 High Accuracy Pen Type Leeb Hardness Tester HL, HB, HRB, HRC, HV, HS
Feature
|
Pen type design, self contained (Impact device and display integrated): no cables. |
The unique large-screen OLED color display (1.77-inch OLED Screen) integrated hardness tester in the world |
|
Interchangeable D impact device (standard) /DL impact device (optional) can achieve one unit dual use; can be used in the restricted area measurement. |
With battery compartment, battery can be replaced. Using standard AAA Lithum battery. |
Highly accuracy in any impact direction (360 degree), automatically identify impact direction and gravity compensation |
Easy Operation, the four soft keys above the screen achieve the various functions.
|
Instrument Specifications
|
|
Display Type |
1.77 inch OLED with resolution 160x128 pixels |
Hardness Scale |
HL, HB, HRB, HRC, HV, HS. σb. |
Measuring Range |
HLD (200-960) HRC(19.8-68.5) HB(30-651) HV(80-976) HS(26.4-99.5) HRB(13.5-100).σb.(375-2639) |
Impact Device |
D type impact device (Standard); Optional DL type impact device(Only LM330) |
Accuracy |
±6HLD (HLD=800), Repeatability < 6HLD (HLD=800) |
Measuring direction |
360 degree by manual setting |
Material |
Steel & Cast Steel, Stainless Steel, GC IRON, NC IRON, Cast Aluminum alloy, Macht metal, Copper-tin alloy, Brass, Forged Steel |
Resolution |
1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS |
Calibration |
Automatic |
Language |
English, Chinese |
Memory: |
1000 groups ,each group include 6 testing result and 1 average value(Only LM330) |
Communication |
USB port, used for recharging and data transmission (Only LM330) |
Software |
LmVIEW Software for transmission, storage, and printing (Only LM330) |
Power |
AAA Polymer lithium battery ,Capacity of 600 MA/H,voltage:3.7 V, warning under low voltage |
Instrument Shut-off |
AUTO OFF after 3 minutes of inactivity |
Temperature |
-10 to +50 Degrees Celsius |
Net Weight |
110g with D type impact device,125g with DL type impact device |
Size |
150mm*46mm*23mm |
Standard |
GB/T 17394-1998, ASTM A956 |
Price Terms︰ EXW shenzhen
Payment Terms︰ Paypal/Credit Card/TT/Western Union
Packing︰ export carton
Lead Time︰ 3 days
