MS7226 High Precision Multifunction Thermocouple Process Calibrator

MS7226 High Precision Multifunction Thermocouple Process Calibrator

Model No.︰MS7226

Brand Name︰GRAIGAR

Country of Origin︰China

Unit Price︰US $ 540 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

MS7226 High Precision Multifunction Thermocouple Process Calibrator Accuracy: 10%



FEATURES

The MS7226 Multifunction Process Calibrator is a powerful, yet easy-to-use field calibrator. Use the measure and source functions to test and calibrate almost any process parameter.
Loop Power Voltage: 24V
Accuracy: 10%
Maximum Current: 24 mA, Short-circuit protection
1.A split-screen display.Show and control in double display
2.A thermocouple (TC) input/output terminal with cold junction temperature compensation,ambient temperature can be set and calibrate within the menu function.
3.manual and automatic stepping and ramping output, within the 0% and 100% of the value.
4.Power off time \ Backlight off time\ Screen Contrast\ Cold junction compensation ON/OFF\HART resistence ON/OFF and ETC. output amplitude and duty cycle for frequency can manually set.
5.Have calendar clock function
6.It can store 8 sets of measurement and output data and call the showing at any time,all the settings and the functions of the last operation be auto-stored after power off.
7.The Calibrator and pressure module is hot-plugging, not need to turn off power, adaptive communications, abundant optional fitting.(Pressure module\Pressure pump\Adapter)
8.High capacity rechargeable battery pack, with power adapter,within integrated charge-management functions.
9.Novel shape,large screen dot-matrix graphic display, can display chinese characters,digital key to input personalized , make the operation more simple.


Technical_parameters

Measure
DC Voltage:0.000—30.000 V   0.02%+3 counts  (The upper display)
          0.000—24.000 V  0.02%+ 3 counts (The lower display)
          0.000—90.000 mV  0.01%+ 10 counts
            -10.000 —80.000mV 0.01 % + 10 counts (use the thermocouple jack )
DC Current:0.000—24.000 mA   0.02%+ 4 counts(The upper display)
          0.000—24.000 mA    0.02%+ 4 counts(The lower display)
Resistance:0.00— 400.00Ω   0.1Ω (4 wire), 0.15Ω (2 wire and 3 wire)
         400.0—4000.0Ω   0.1Ω (4 wire), 0.15Ω (2 wire and 3 wire)
          400.0—4000.0Ω   0.5Ω (4 wire), 1Ω (2 wire and 3 wire)
Frequency:0.010—20.000 kHz   ±4Hz
         0.001—39.999.0Hz   ±0.01Hz
         40.00 —99.99 Hz    ±0.05Hz
         100.0 —500.0 Hz     ±0.5Hz
Pressure:Depends on the pressure module  Depends on the pressure module
RTD and Thermocouple:
RTD:PT-100 (385);PT-100 (3926);PT-100 (JIS);PT-200 (385);PT-500 (385);PT-1000 (385);Cu50;Cu100,can use two wire/three/four wire
Thermocouple:J.K.T.E.R.S.B.N

Price Terms︰ EXW shenzhen

Payment Terms︰ Paypal/Credit Card/TT/Western Union

Packing︰ export carton

Lead Time︰ 3 days

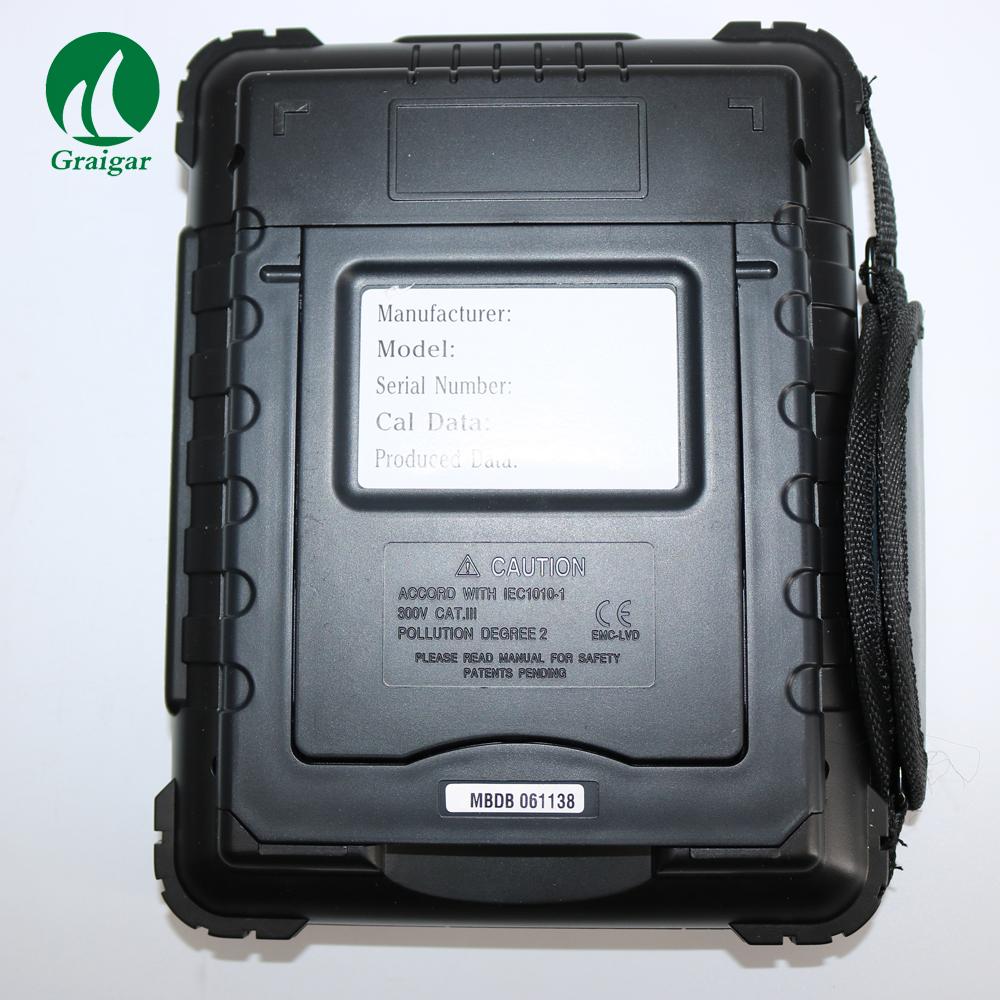

Product Image
