Product Description

Spec

Whiteness Meter is mainly used to directly measure the whiteness value of object or powder with flat surface. Can be widely used in whiteness measurement of textile printing and dyeing, paint, chemica



Features

* It consists of Light Source, Optical System, Detection System, Data Process and Display System. The whiteness Calculation Formula of the instrument is blue light whiteness R457.

* Use of high quality imported components, good reliability.
* The optical path design is reasonable, simple. Adopt filter system with correction, the whiteness can be reflected quantitatively.
* No preheating after starting, measurements can be taken after simple calibration, easy to operate.
* Pass strict inspection and testing, the instrument conforms to the JJG 512-2002 Whiteness Meter Verification Regulation. Also conforms to GB3978, GB3979, GB7973, GB7974, ISO2470, GB8904.2, QB1840, GB2913, GB13025.2, GB1543, ISO2471, GB10339, GB5950, GB12911, GB2409 and other standards.
* Able to memory 254 groups of measurement data.
* Use USB data out put and RS- 232 data out put to connect with PC.
* Provide Bluetooth data out put choice.



Principle

The light source of the instrument is long-life LED with 457nm, conforming to the light source requirement in the JJG 512-2002 National Metrological Whiteness Meter Verification Regulation. The measurement of the instrument adopts the principle of photoelectric effect. The diffuse reflectance Radiant Brightness Energy Value of the sample surface is receive by the optical cell. Then, the value is amplified by high-precision auto zeroing operation amplifier, inputted to the calibration circuit for energy calibration. Then, the whiteness value of the sample is directly shown on the digital display.



Specifications



Range	0~120
Resolution	0.1
Illumination Condition	45/0
Illuminant	LED 457nm
Whiteness Formula	Blue Light Whiteness WB=R457
Measuring Aperture	<<15 mm
Zero Drift	<<0.1
Stability of Display	<<0.5
Repeatability of Measurement	<<0.1
Operating Gondition	Temperature	0~40ºC
	Humidity	<85%RH
Power Supply	4x1.5V AAA(UM-4)Battery(Optional AC Power)
Size	Main Unit	156x67x28 mm
	Probe	Φ44x55 mm
Weight	200g(Not Including Batteries)



Accessories

Model	WM-106	WM-206
Standard Accessories	Main Unit
	External Probe	AC Adaptor
	Standard White Board
	Optical Cleaning Cotton Cloth
	Carrying Case(B04)	Carrying Case
	Operation Manual
Optional Accessories	Constant Pressure Powder Forming Apparatus
	AC Adaptor	------
	RS-232C Data Cable with Software
	Bluetooth Data Adapter with Software

Price Terms︰ EXW shenzhen

Payment Terms︰ Paypal/Credit Card/TT/Western Union

Packing︰ export carton

Lead Time︰ 3 days

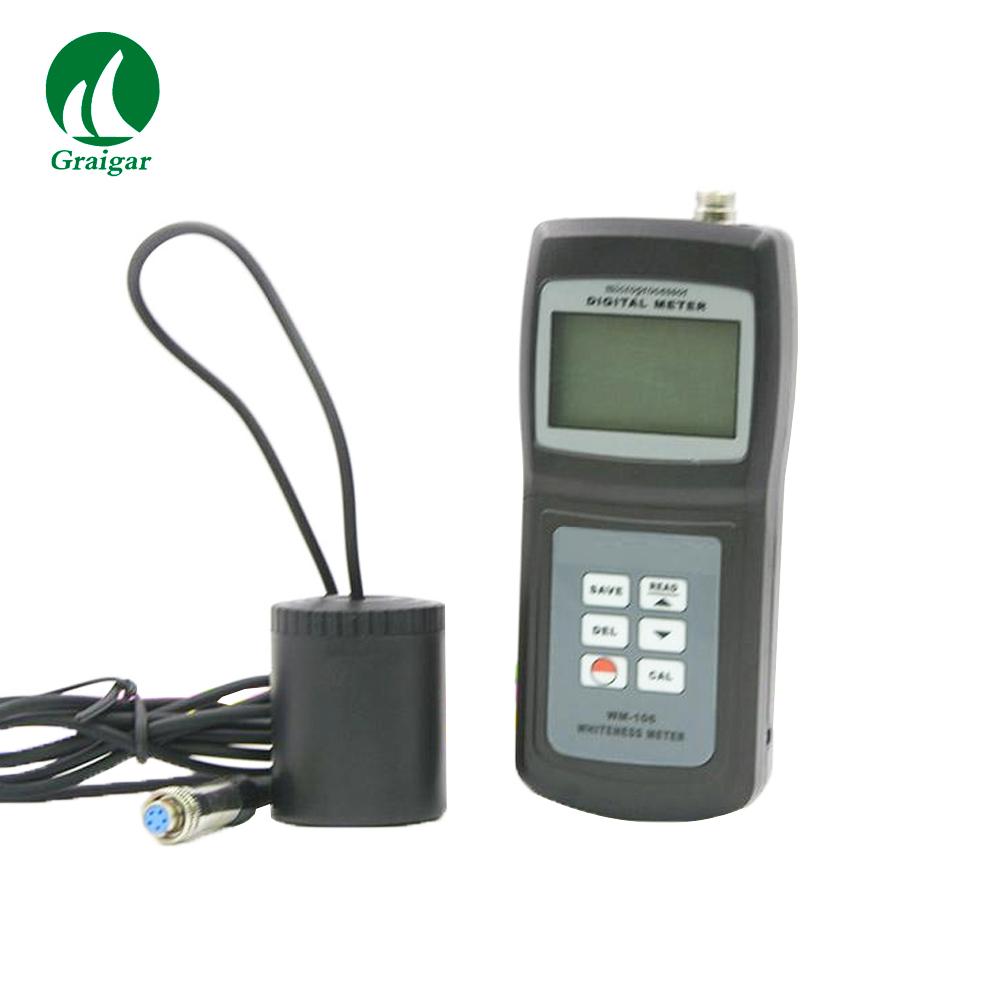

Product Image
