New Fluke 2042 Design the Professional Cable Locator Kit Tracing Cables in Walls

New Fluke 2042 Design the Professional Cable Locator Kit Tracing Cables in Walls

Model No.︰ Cable Locator

Brand Name︰Fluke2042

Country of Origin︰United States

Unit Price︰US $ 579 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

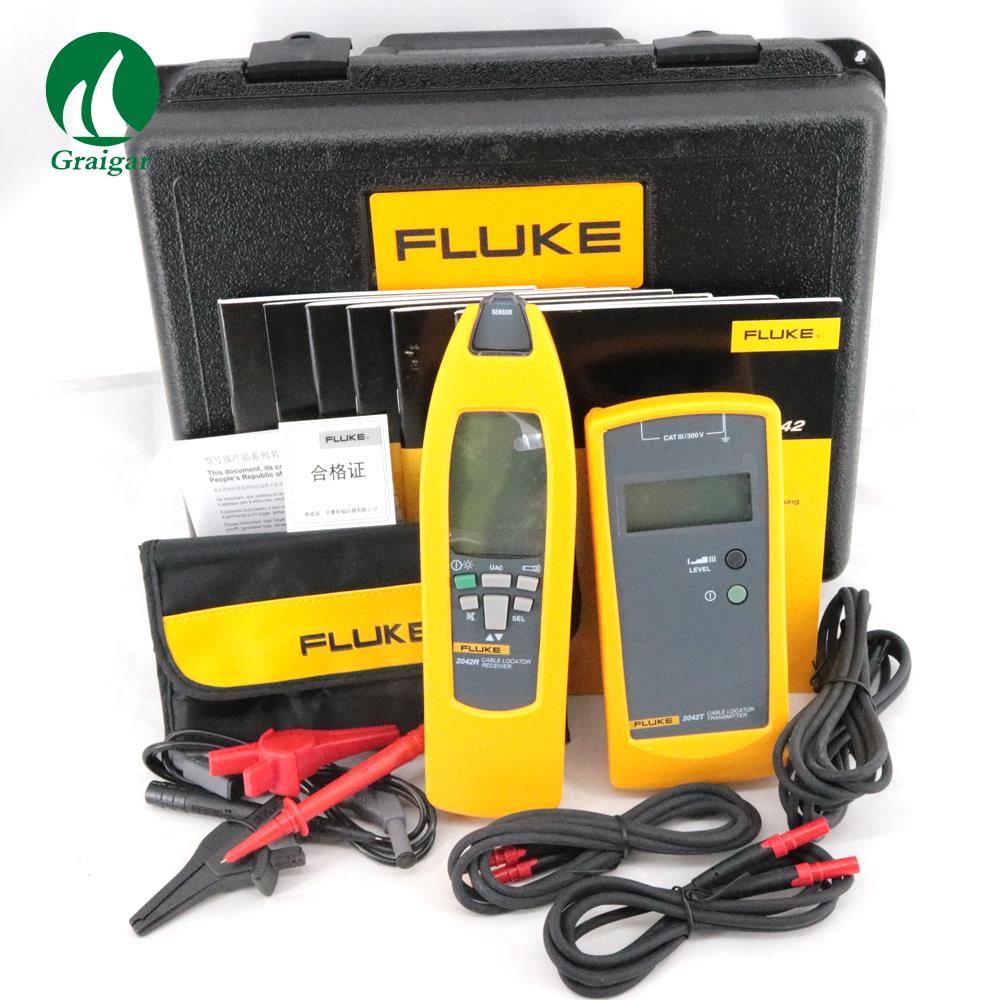

New Design the Professional Cable Locator Kit Fluke 2042 Tracing Cables in Walls and Underground





The Fluke 2042 is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems.

It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in dimly lit locations.

Features:

Specifications:

Technical Specifications

Voltage measurement range

Transmitter: 12 V, 50 V, 120 V, 230 V, 400 V

Frequency range

Transmitter: 0...60 Hz

Output signal

Transmitter: 125 kHz

Voltage

Transmitter: Up to 400 V AC/DC

Tracing depth cable location

Receiver: 0...2.5 m wall/underground cables

Main voltage detection

Receiver: 0...0.4 m

Environmental Specifications

Operating Temperature

Transmitter:

0 to 40C

Receiver:

0 to 40C

Storage Temperature

Transmitter:

-20C to +60C

Receiver:

-20C to +60C

Humidity (Without Condensation)

Transmitter:

Max. 80% relative

Receiver:

Max. 80% relative

Operating Altitude

Transmitter:

Up to 2000 m

Receiver:

Up to 2000 m

Safety Specifications

Electrical Safety

EN 61010-1

Overvoltage category

Cat. III 300 V

Mechanical & General Specifications

Size

Transmitter:

190 mm x 85 mm x 50 mm

Receiver:

250 mm x 65 mm x 45mm

Weight

Transmitter:

0.45 kg

Receiver:

0.36 kg




Package Includes:

  • For all applications (live or dead cables) without additional instruments;

  • Set includes a transmitter and a receiver;

  • Proven digitally coded sender signal guarantees clear signal identification;

  • Transmitter with LC-display for transmitting level, transmitting code and external voltage;

  • Receiver with a backlight LC-display for level of receiving signal, code of receiving signal and live voltage indication;

  • Automatic or manual adjustment of receiving signal sensitivity;

  • Acoustical receiving signal switchable;

  • Auto-Power-Off;

  • Additional torch lamp function for working in dark environments;

  • 1 x Fluke 2042 Cable Locator

  • 1 x Original Package

  • Additional transmitters are available for extension of to distinguish between several signals

Price Terms︰ exw price

Payment Terms︰ TT / LC/paypal

Packing︰ carton

Lead Time︰ with 3 wooking days

Product Image
