Wall MT160 Ultrasonic Thickness Gauge meter NDT Test Tools 0.75~300mm MT-160

Wall MT160 Ultrasonic Thickness Gauge meter NDT Test Tools 0.75~300mm MT-160

Model No.︰MT160

Brand Name︰MITECH

Country of Origin︰China

Unit Price︰US $ 240 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

Overview

The model MT160 is a digital ultrasonic thickness gauge .Based on the principle of ultrasonic principle, the instrument is capable of measuring the thickness of various materials, such as metal, plastic, ceramic, glass and many other good ultrasonic conductors. It of all kinds of materials. Compared with the traditional measurement methods, the advantages of ultrasonic thickness gauge is exposed to one side of the workpiece to complete the measurement. Its unique non-destructive testing performance provide the perfect solution for the thickness testing of closed pipes, containers, etc. It is widely used in pertroleum , chemical ,metallurgy, shipbuilding, aviation, aerospace and other fields because of monitoring corrosion thinning degree of various pipes and pressure vessels. It can also be used for precise measurement of sheet metal and machined parts.

Technical Parameters

Display

4.5 digits LCD with EL backlight

Measuring Range

(0.75~300)mm (in Steel)

Sound Velocity Range

                      (1000~9999) m/s

Resolution

0.1mm/0.01mm

Accuracy

±(0.5%Thickness+0.04)mm, depends on materials and conditions

Units

Metric/Imperial unit selectable

Measurement Frequency

Four measurements readings per second for single point measurement, and ten per second for Scan Mode

Storage

Memory for up to 20 files (up to 99 values for each file) of stored values

Thickness Measurement Modes

Single point thickness measurement and scanning thickness measurement

Power Source

Two “AA” size, 1.5 Volt alkaline batteries

Operating Time

More than 100 hours (EL backlight off)

Communication

USB1.1(Can communicate with PC )

Outline Dimension

150mm×74mm×32 mm

Weight

245g



Features

Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.) , plastics, ceramics, glass, fiber glass and any other good ultrasonic conductors;

Dual straight beam probes with different frequencies and crystal sizes are available;

Zero calibration, two-point calibration, automatic error correction system;

Known thickness, sound speed can be measured, in order to improve the measurement accuracy;

Coupling status indicator showing the coupling status;

EL backlight for easy use in dimly lit environments;

Remaining battery indicator can display the remaining power in real time;

Auto sleep and auto power off function to conserve battery life

Small, portable, high reliability for harsh operating environment, anti-vibration, anti-shock and anti-electromagnetic interference.

Ying

Price Terms︰ EXW

Payment Terms︰ Paypal/Credit Card/TT

Packing︰ Carton

Lead Time︰ Within 3 working days after paying.

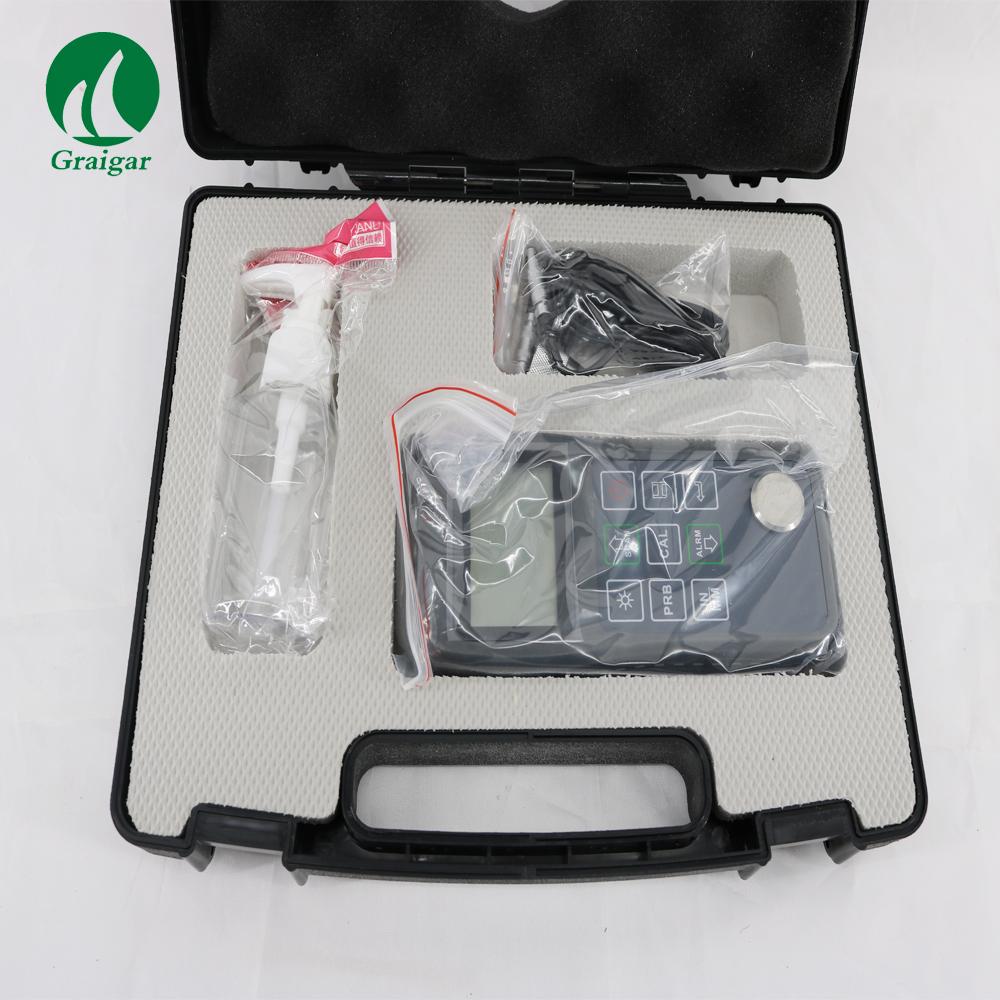

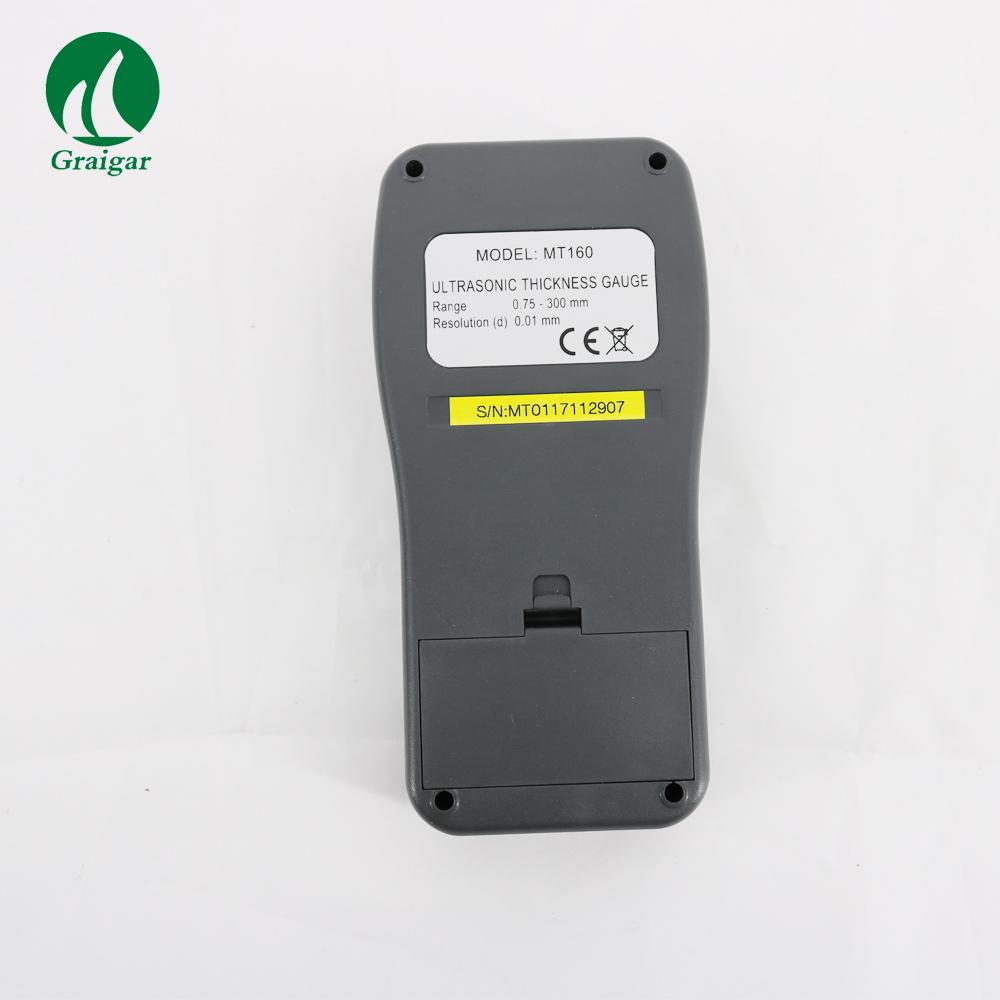

Product Image
