WTM-1100 Window Tint Meter Transmittance Tester

WTM-1100 Window Tint Meter Transmittance Tester

Model No.︰WTM-1100

Brand Name︰GRAIGAR

Country of Origin︰China

Unit Price︰US $ 179 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

Features:

* This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.

* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* One key calibration, easy to use.
* Solid structure, exquisite, easy to carry.
* Solid structure, small volume, light weight.
* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.

Applications:

 Applicable to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane (such as automobile manufacturing, aerospace, glass products, plastic sheet, sheet, etc).Also can be used to determine the turbidity or clarity of liquid sample (water, drinks and so on).

 Specifications:

Display 10mm LCD
Measurement Range 0 to 100% Light Transmission
Resolution 0.1
Accuracy ± 1 %
Light Source LED
Measuring Mode Single and Continuous
Operating conditions Temperature: 0 ~ 50 C Humidity: < 90 %
Power Supply 4 x 1.5 V AAA Size (UM-4) Battery(excluding)
Dimensions Unit: 126 x 65 x 27 mm (5.0 x 2.6 x 1.1 inch)
Sensor: 125 x 38 x 38 mm
Weight 100 g (Not Including Batteries)



Standard Accessories

1. Main Unit

2. Carrying Case

3. Operation Manual

Ying

Price Terms︰ EXW

Payment Terms︰ Paypal/Credit Card/TT

Packing︰ Carton

Lead Time︰ Within 3 working days after paying.

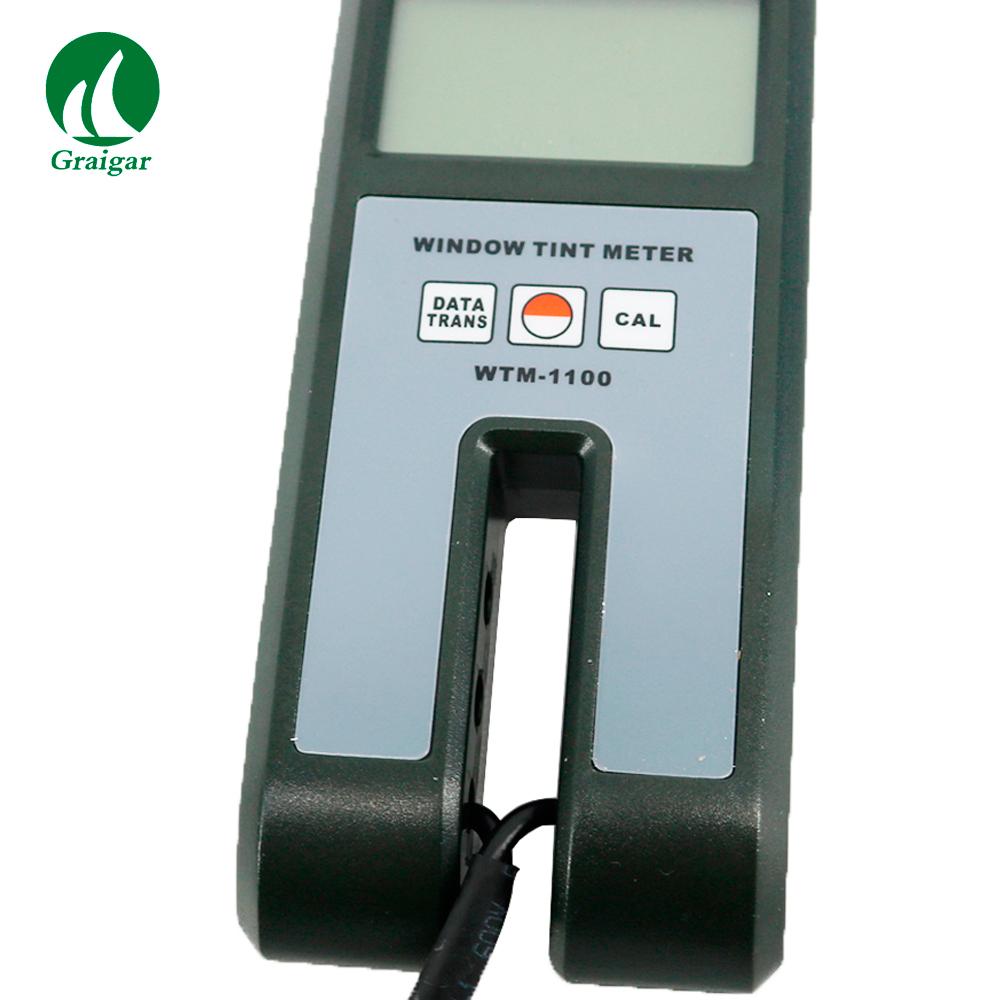

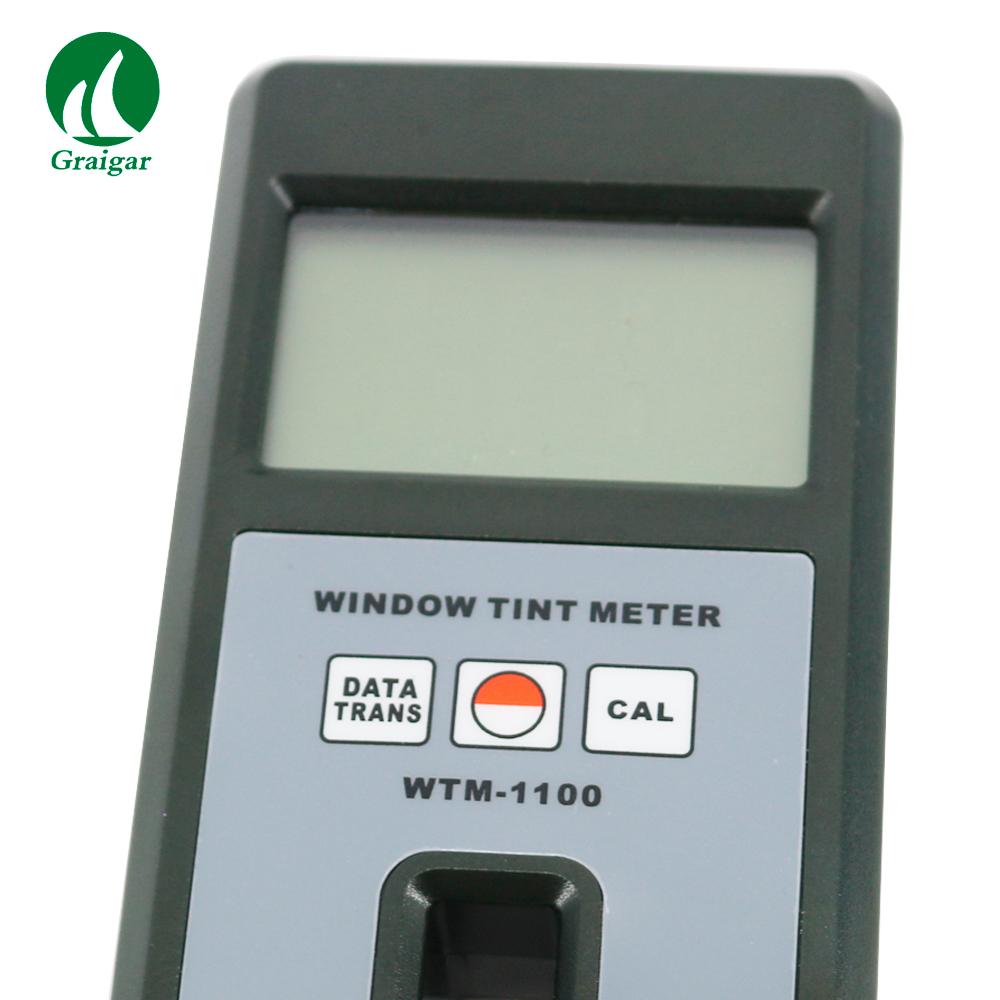

Product Image
