Product Description

Features:

* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.

* Manual or automatic shut down.

* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.（Optional)

* Provide “Bluetooth ™ data output” choice.(Optional)

* Separate Type can provide several type probe, measure can be more flexibility.



Details:

Operating Principle   Magnetic Induction / Eddy Current (F / NF)   Measuring Range   0~1250 µm / 0~50 mil   Resolution   0.1 µm / 1 µm   Min. Radius Workpiece   F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm   Min. Measuring Area   6 mm   Min. Sample Thickness   0.3 mm   Accuracy   ± 1~3%n or ± 2.5 um   Auto Power Off     Metric / Imperial   Convertible   Battery Indicator   Low Battery Indicator   Operating Conditions   Temp. 0~40 °C, Humidity: 10~90 %RH   Power Supply   4 x 1.5 V AAA (UM-4) Battery   Dimensions   126 x 65 x 27 mm   Weight   81 g (Not Including Batteries)



Standard Accessories:

 1. Main Unit

 2. Probe (F Type / NF Type)

 3. Calibration Base Set (F Type / NF Type) CTG-BS

 4. Calibration Foils CTG-CF (1 set, 4 pieces)

 5. Carrying Case

 6. Operation Manual

Ying

Price Terms︰ EXW

Payment Terms︰ Paypal/Credit Card/TT

Packing︰ Carton

Lead Time︰ Within 3 working days after paying.

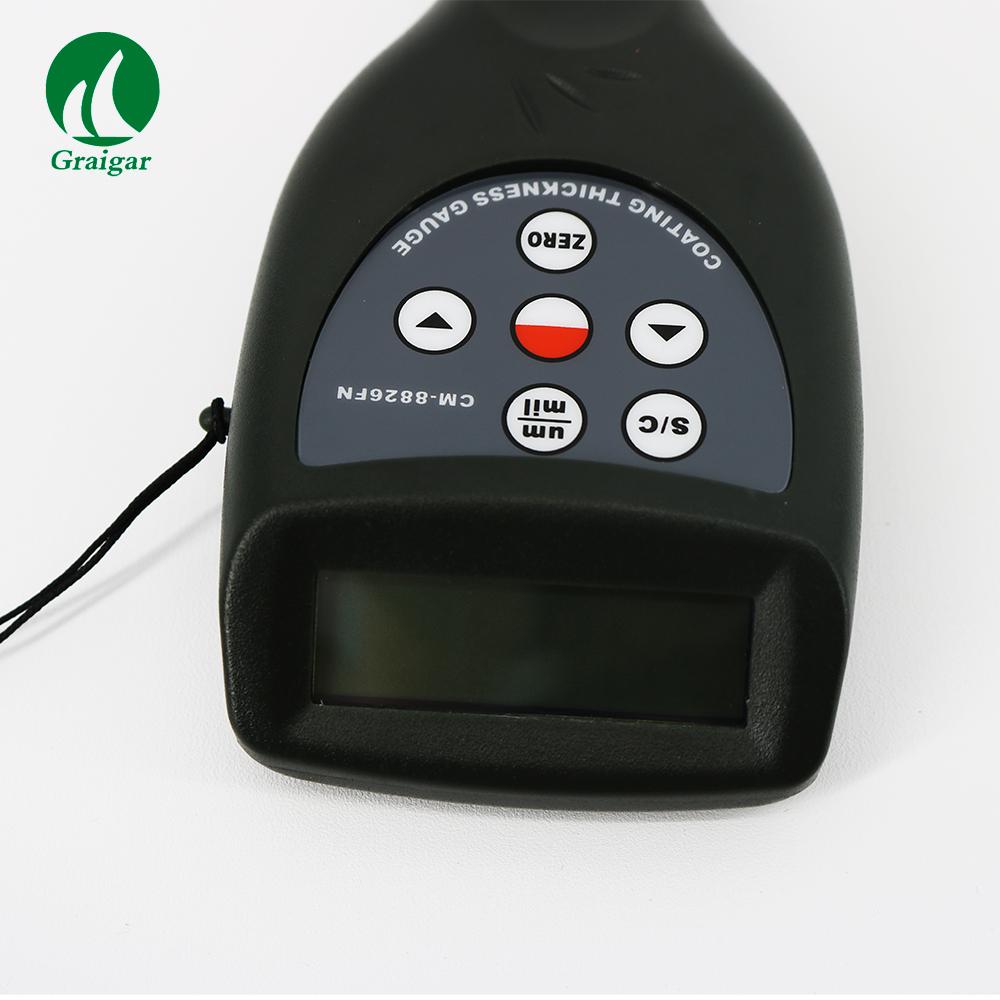

Product Image
