LXC6310 Completely replaced DSE5210/DSE5110 auto start generator controller

LXC6310 Completely replaced DSE5210/DSE5110 auto start generator controller

Model No.︰LXC6310

Brand Name︰LIXiSE

Country of Origin︰China

Unit Price︰US $ 150 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

Description:



The LXC6310/6320 is used in single machine automation, which can control the Genset starting by remote boot signal

The LXC6320 added the function is based in LX6310, which is automatic mains failure control module. can monitor a mains supply and automatically start.

Working voltage DC8.0V to 35.0V (continue to supply)

Consumer power <3W (stand model: ≤2W )





Specification



Working voltage                                       DC8.0V to 35.0V (continue to supply)
Consumer power                                     <3W (stand model: ≤2W )
Alternator Input voltage:
20V AC - 360 V AC (ph-N) 3 Phase 4wire
30V AC - 620 V AC (ph-ph) 3 Phase 3wire
20V AC - 360 V AC (ph-N)
20V AC - 360 V AC (ph-N)
Frequency  50/60HZ
 Speed sensor voltage :                         1.0 - 70Vpp
 Speed sensor Frequency:                     Max 10000HZ
 Starting relay output:                               16Amp
Fuel relay output :                                     16Amp
Programmable relay output 1:                16Amp
Programmable relay output 2:                16Amp
Programmable relay output 3:                16Amp
Programmable relay output 4:                16Amp
Power switching programmable relay output 5:        16Amp
Mains switch relay programmable relay output 6:     10Amp 250VAC
 Out Size:                                                      240mm x 172mm x 57mm
 Tapping Size:                                              214mm x 160mm
Current transformer secondary electric 5A
Working condition:                                     Temp. (-25~+70)C humidity (20~90)%
Storage condition:                                      Temp. (-40~+70)C
Weight: 0.9kg



Price Terms︰ EXW Shenzhen

Payment Terms︰ TT/LC/Western Union/Paypal

Packing︰ Standard export packaging

Lead Time︰ 3 working days

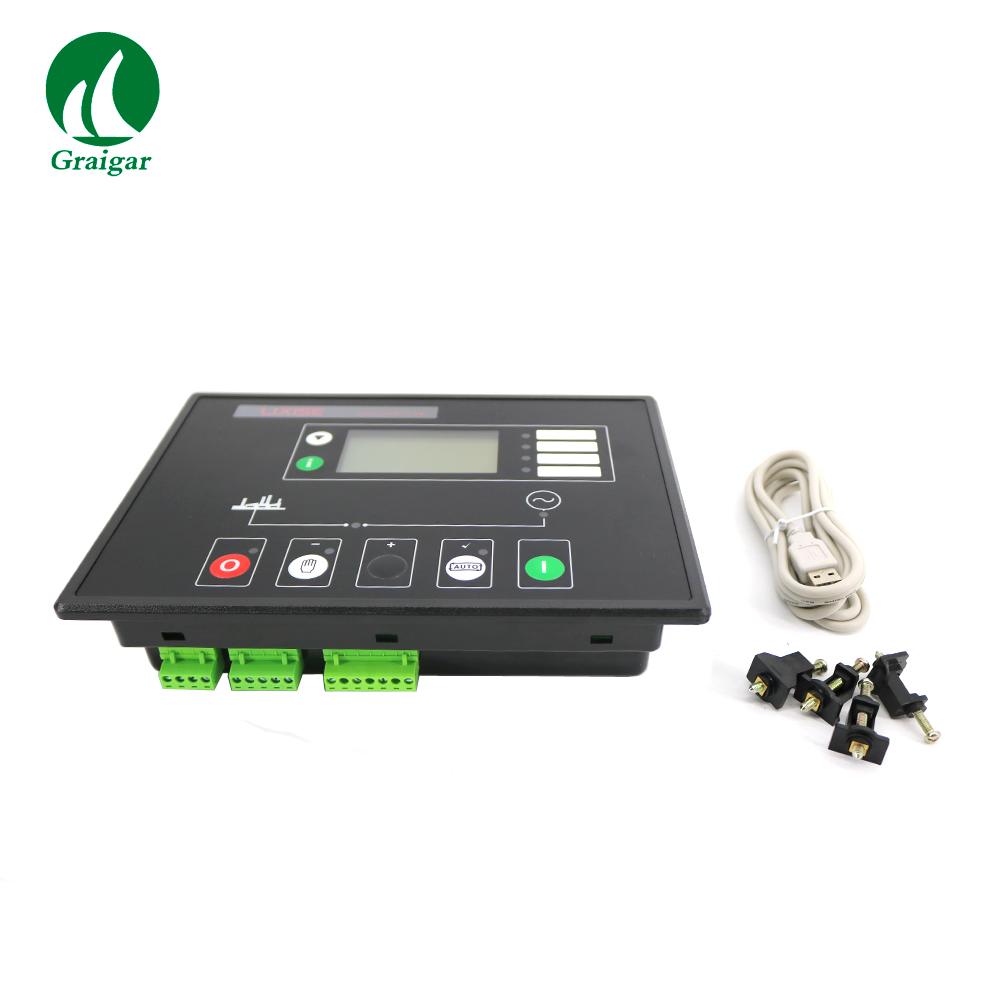

Product Image
